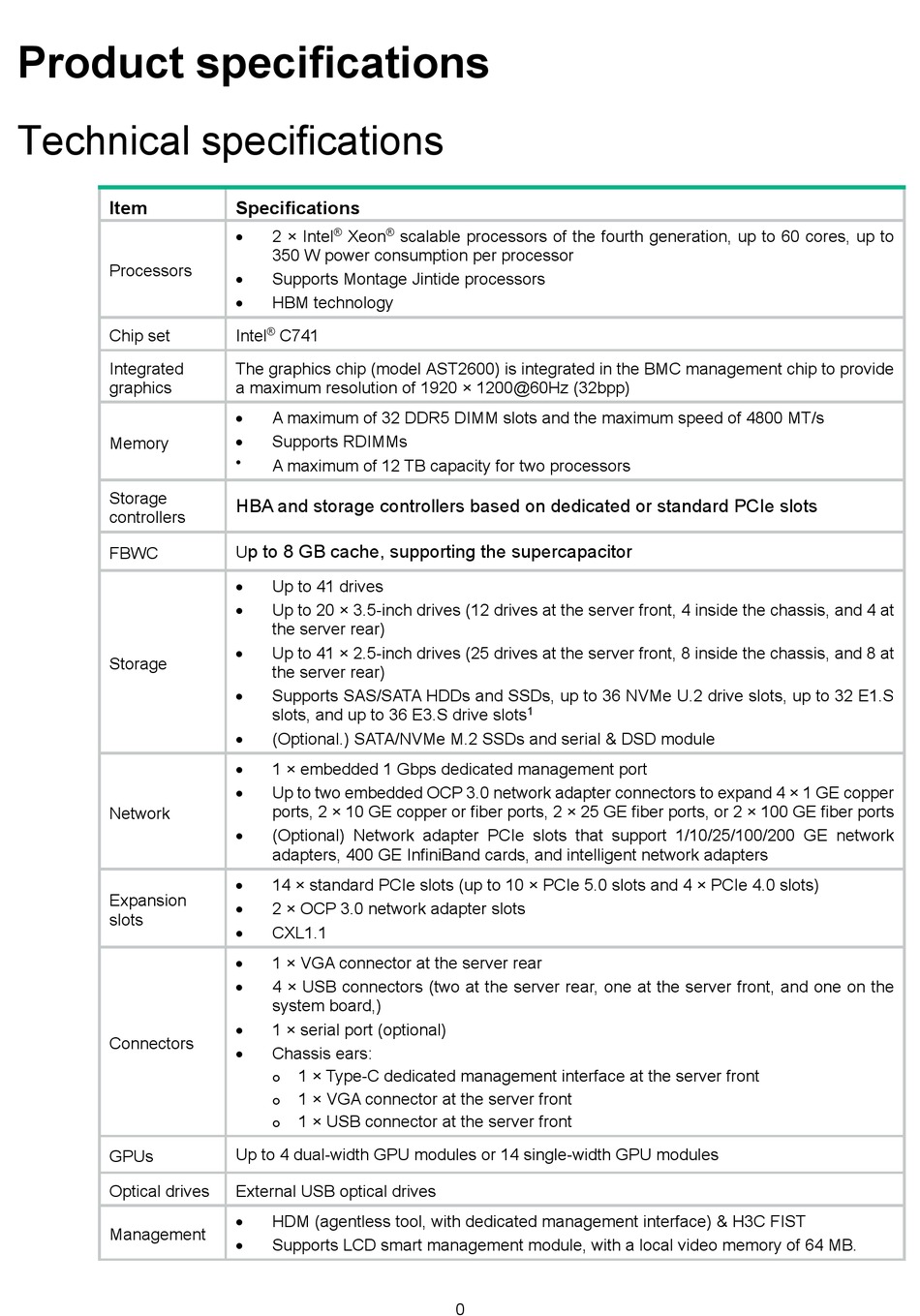

Product specifications

Technical specifications

Item
Processors
Chip set
Integrated
graphics
Memory
Storage
controllers
FBWC
Storage
Network
Expansion
slots
Connectors
GPUs
Optical drives
Management
Specifications
• 2 × Intel ® Xeon ® scalable processors of the fourth generation, up to 60 cores, up to
350 W power consumption per processor
Supports Montage Jintide processors
•
• HBM technology
®
Intel C741
The graphics chip (model AST2600) is integrated in the BMC management chip to provide
a maximum resolution of 1920 × 1200@60Hz (32bpp)
A maximum of 32 DDR5 DIMM slots and the maximum speed of 4800 MT/s
•
Supports RDIMMs
•
• A maximum of 12 TB capacity for two processors
HBA and storage controllers based on dedicated or standard PCIe slots
p to 8 GB cache, supporting the supercapacitor
U
Up to 41 drives
•
• Up to 20 × 3.5-inch drives (12 drives at the server front, 4 inside the chassis, and 4 at
the server rear)
Up to 41 × 2.5-inch drives (25 drives at the server front, 8 inside the chassis, and 8 at
•
the server rear)
Supports SAS/SATA HDDs and SSDs, up to 36 NVMe U.2 drive slots, up to 32 E1.S
•
slots, and up to 36 E3.S drive slots
• (Optional.) SATA/NVMe M.2 SSDs and serial & DSD module
1 × embedded 1 Gbps dedicated management port
•
• Up to two embedded OCP 3.0 network adapter connectors to expand 4 × 1 GE copper
ports, 2 × 10 GE copper or fiber ports, 2 × 25 GE fiber ports, or 2 × 100 GE fiber ports
• (Optional) Network adapter PCIe slots that support 1/10/25/100/200 GE network
adapters, 400 GE InfiniBand cards, and intelligent network adapters
• 14 × standard PCIe slots (up to 10 × PCIe 5.0 slots and 4 × PCIe 4.0 slots)
2 × OCP 3.0 network adapter slots
•
CXL1.1
•
1 × VGA connector at the server rear
•
• 4 × USB connectors (two at the server rear, one at the server front, and one on the
system board,)
1 × serial port (optional)
•
• Chassis ears:
1 × Type-C dedicated management interface at the server front

1 × VGA connector at the server front

1 × USB connector at the server front

Up to 4 dual-width GPU modules or 14 single-width GPU modules
External USB optical drives
HDM (agentless tool, with dedicated management interface) & H3C FIST
•
• Supports LCD smart management module, with a local video memory of 64 MB.
