RC-2FHFL-R3-2U-G6

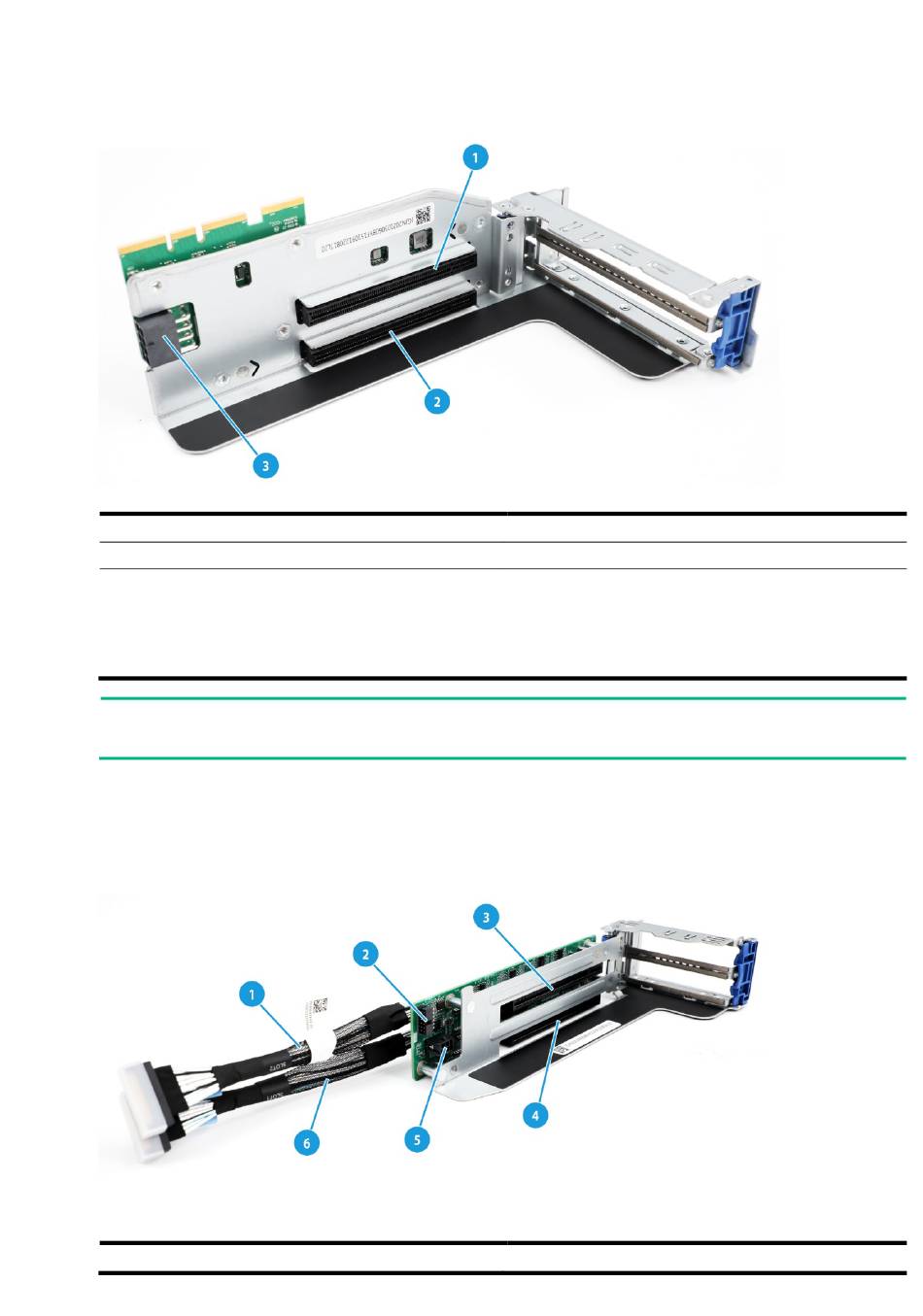

Figure 51 RC-2FHHL-R3-2U-G6
(1) PCIe5.0 x16 (8,4,2,1) slot 8
(3) GPU module power connector
PCIe5.0 x16 (8,4,2,1) description:
PCIe5.0: Fifth-generation signal speed.
•
x16: Connector bandwidth.
•
•
(8,4,2,1): Compatible bus bandwidth, including x8, x4, x2, and x1.
NOTE:
This type is riser card is not supported when liquid-cooled modules are installed on the server.
RC-2HHHL-R4-2U-G6
Figure 52 RC-2HHHL-R4-2U-G6
(1) SLOT 2 cable
(2) PCIe5.0 x16 (8,4,2,1) slot 7
(2) AUX connector
