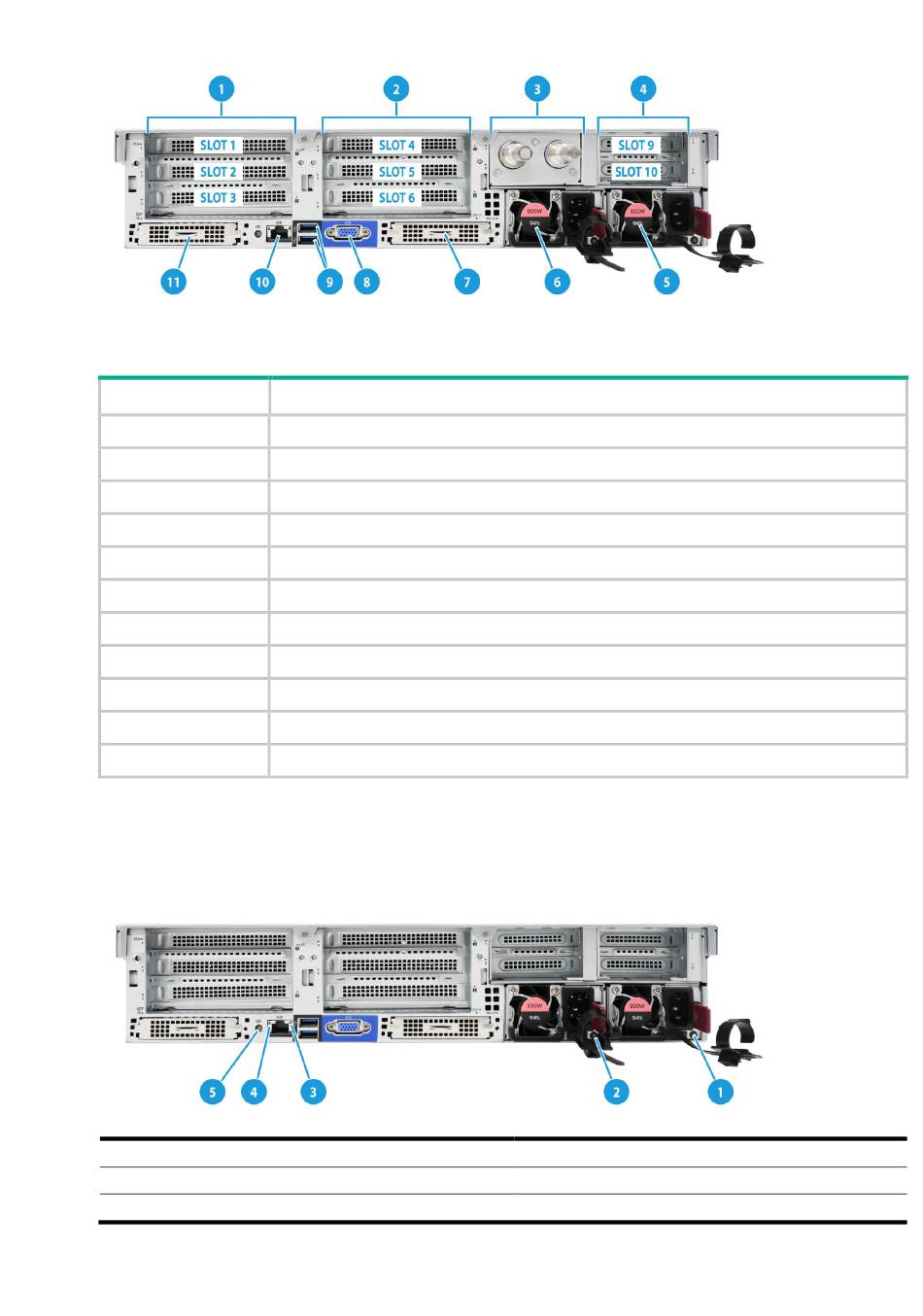

Figure 10 Rear panel components (with liquid-cooled module installed)
Table 10 Rear panel description (with liquid-cooled module installed)
Item
1
2
3
4
5
6
7
8
9
10
11

LEDs

Figure 11 Rear panel LEDs
(1) Power supply LED for power supply 2
(3) Activity LED of the Ethernet port
(5) UID LED
Description
PCIe riser bay 1: PCIe slots 1 through 3
PCIe riser bay 2: PCIe slots 4 through 6
Liquid inlet (blue) and outlet (red)
PCIe riser bay 4: PCIe slots 9 and 10
Power supply 2
Power supply 1
OCP 3.0 network adapter or serial & DSD module (in slot 17) (optional)
VGA connector
Two USB 3.0 connectors
HDM dedicated network port (1Gbps, RJ-45, default IP address 192.168.1.2/24)
OCP 3.0 network adapter (in slot 16) (optional)
(2) Power supply LED for power supply 1
(4) Link LED of the Ethernet port
