Object
Area Type
Active Interfaces
Auth. Type
SPF Executed Times
LSA Count
Router LSA Count
Router LSA Checksum
Network LSA Count
Network LSA Checksum
Summary LSA Count
Summary LSA Checksum
ASBR Summary LSA Count
ASBR Summary LSA
Checksum
Buttons
Select
Auto-refresh
every 3 seconds.
Click
Refresh
to refresh the page immediately.

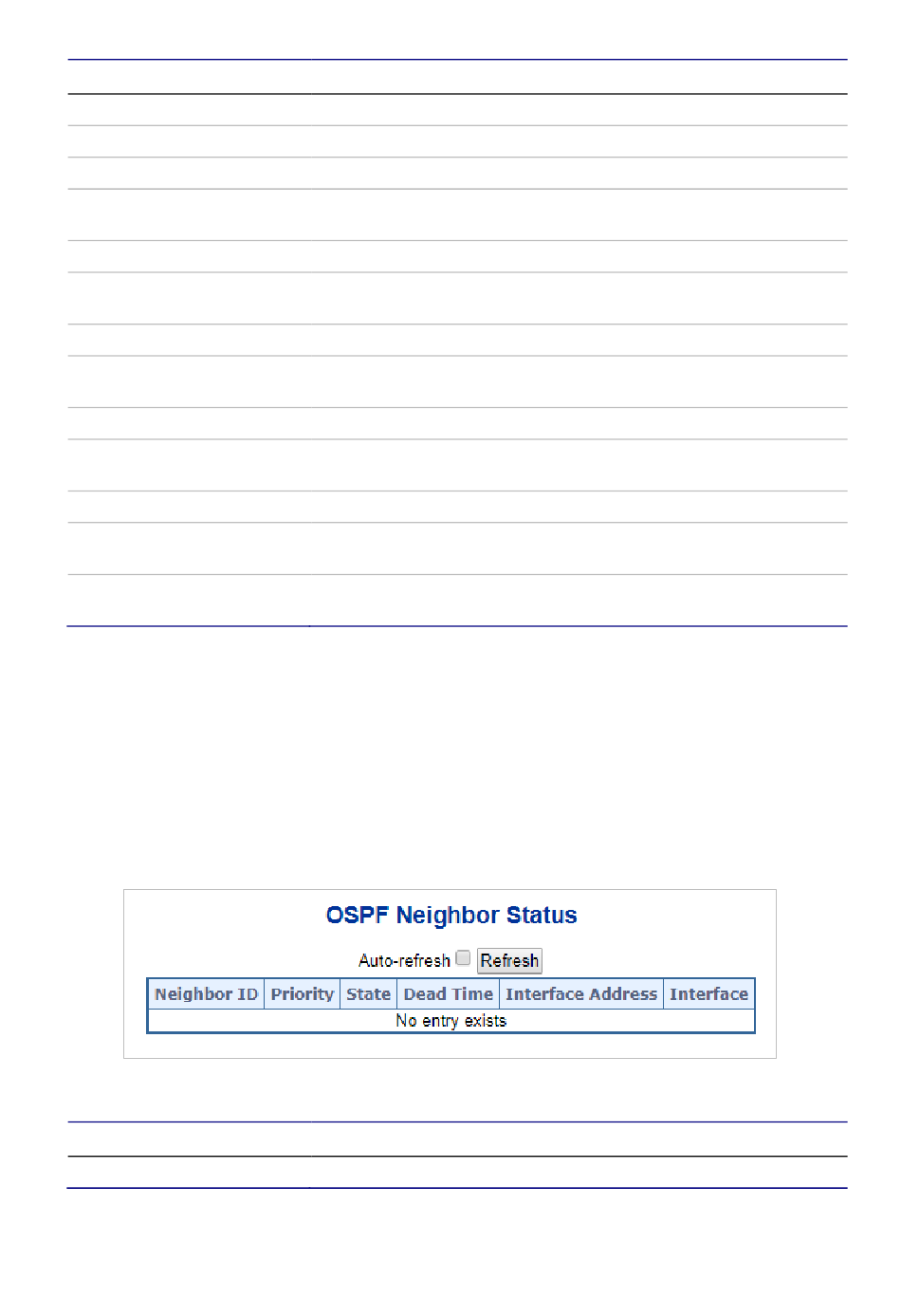

Neighbor status
OSPF neighbor status information is provided on the OSPF Neighbor Status page.
The page includes the following fields:
Object
Neighbor ID
NS4702-24P-4X-V2 Managed Switch User Manual
Description
The area type.
Number of active interfaces attached in the area.
The authentication type in the area.
Number of times SPF algorithm has been executed for the particular
area.
Number of the total LSAs for the particular area.
Number of the router-LSAs (Type-1) of a given type for the particular
area.
The router-LSAs (Type-1) checksum.
Number of the network-LSAs(Type-2) of a given type for the
particular area.
The network-LSAs (Type-2) checksum.
Number of the summary-LSAs (Type-3) of a given type for the
particular area.
The summary-LSAs (Type-3) checksum.
Number of the ASBR-summary-LSAs (Type-4) of a given type for the
particular area.
The ASBR-summary-LSAs (Type-4) checksum.
to refresh the page automatically. Automatic refresh occurs
Description
The neighbor ID.
