Chapter 4: Web configuration

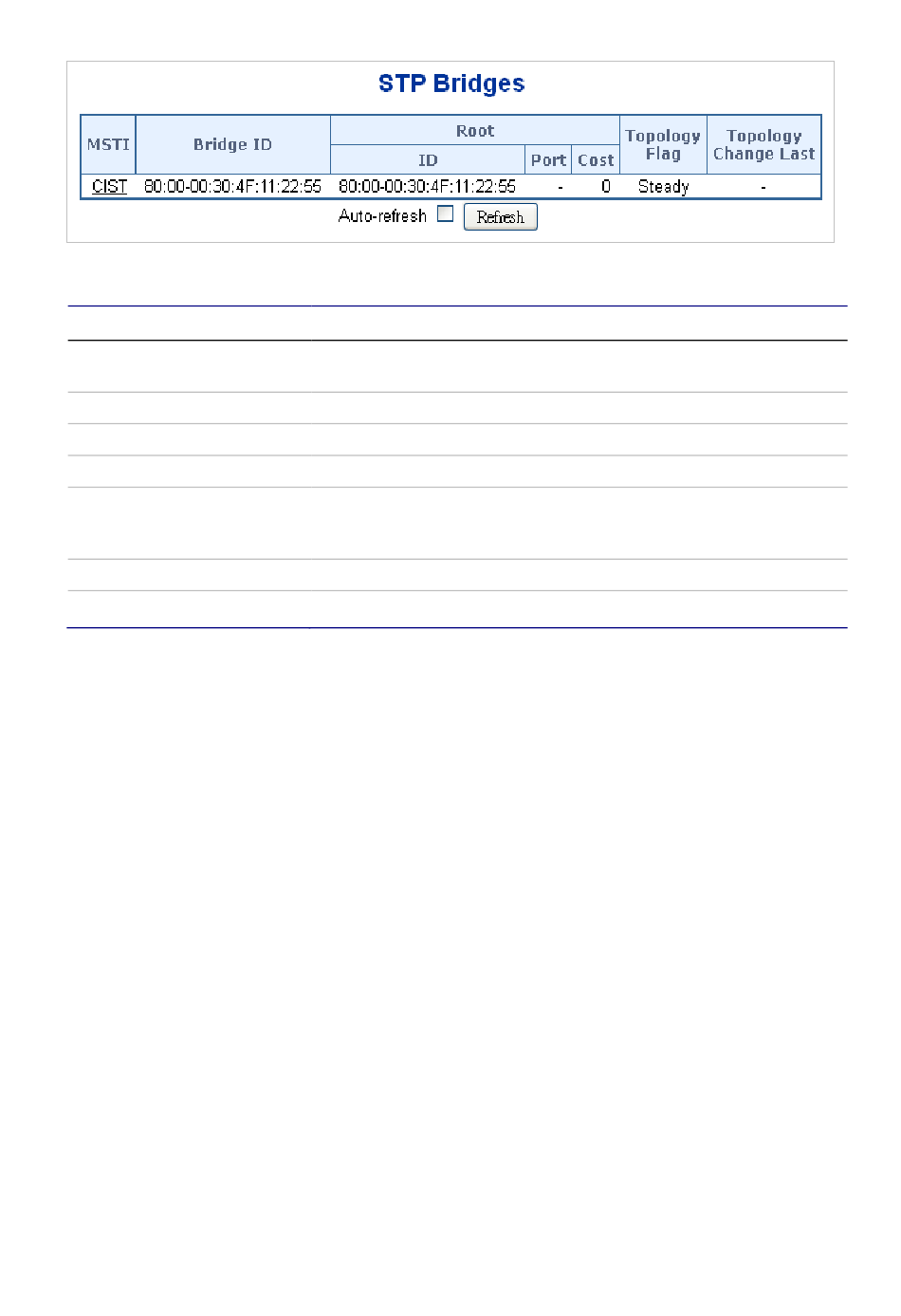

The page includes the following fields:
Object
MSTI
Bridge ID
Root ID
Root Port
Root Cost
Topology Flag
Topology Change Last
Buttons
• Select the Auto-refresh
refresh occurs every three seconds.
• Click Refresh to refresh the page immediately.
168
Description
The bridge instance. This is also a link to the STP detailed bridge
status.
The bridge ID of this bridge instance.
The bridge ID of the currently elected root bridge.
The switch port currently assigned the root port role.
Root Path Cost. For the root bridge this is zero. For all other bridges,
it is the sum of the port path costs on the least cost path to the root
bridge.
The current state of the topology change flag for this bridge instance.
The time since the last topology change occurred.
check box to refresh the page automatically. Automatic
