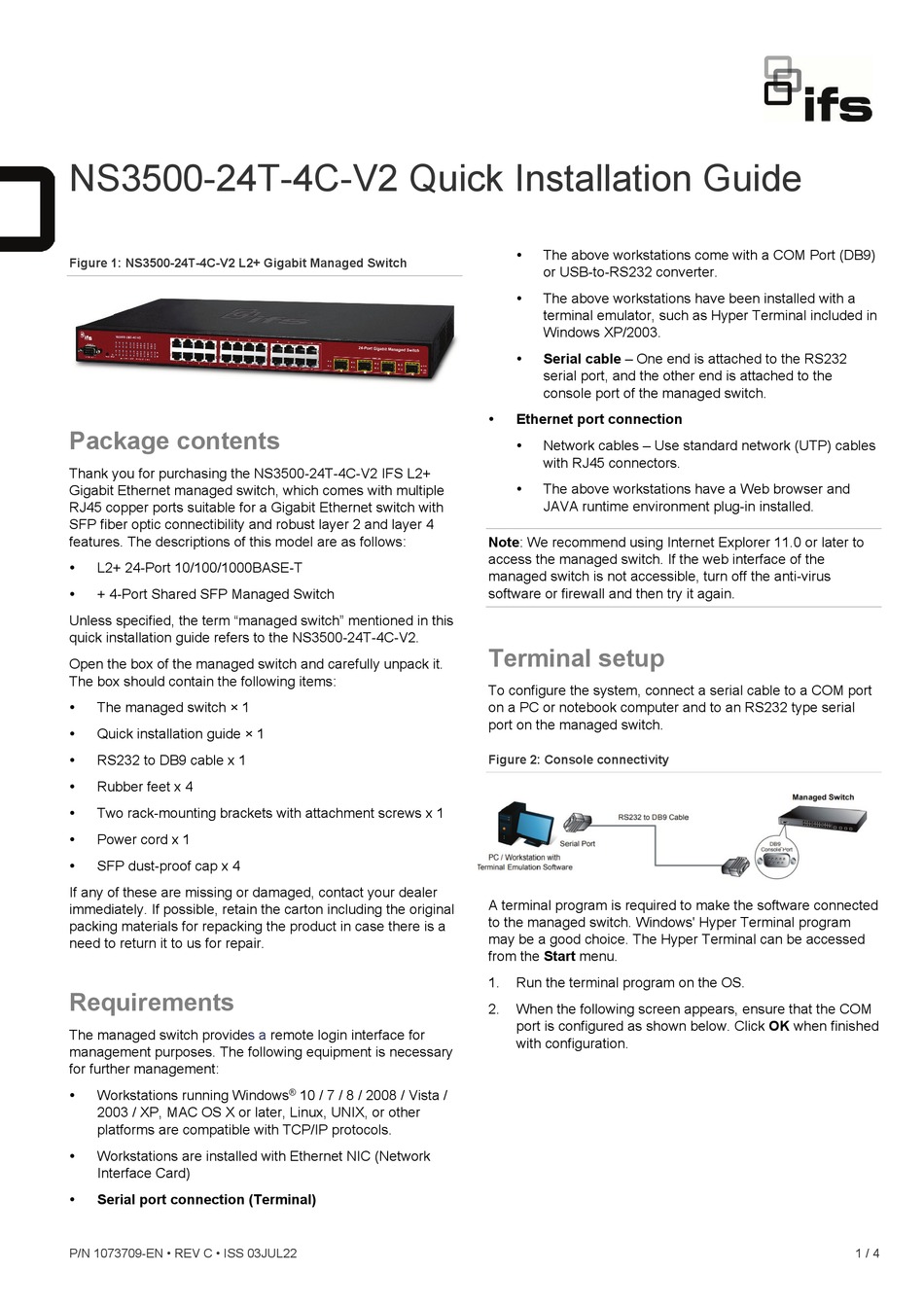

NS3500-24T-4C-V2 Quick Installation Guide
Figure 1: NS3500-24T-4C-V2 L2+ Gigabit Managed Switch
Package contents
Thank you for purchasing the NS3500-24T-4C-V2 IFS L2+
Gigabit Ethernet managed switch, which comes with multiple
RJ45 copper ports suitable for a Gigabit Ethernet switch with
SFP fiber optic connectibility and robust layer 2 and layer 4
features. The descriptions of this model are as follows:
L2+ 24-Port 10/100/1000BASE-T

+ 4-Port Shared SFP Managed Switch

Unless specified, the term "managed switch" mentioned in this
quick installation guide refers to the NS3500-24T-4C-V2.
Open the box of the managed switch and carefully unpack it.
The box should contain the following items:
The managed switch × 1

Quick installation guide × 1

RS232 to DB9 cable x 1

Rubber feet x 4

Two rack-mounting brackets with attachment screws x 1

Power cord x 1

SFP dust-proof cap x 4

If any of these are missing or damaged, contact your dealer
immediately. If possible, retain the carton including the original
packing materials for repacking the product in case there is a
need to return it to us for repair.
Requirements
The managed switch provides a
management purposes. The following equipment is necessary
for further management:
Workstations running Windows

2003 / XP, MAC OS X or later, Linux, UNIX, or other
platforms are compatible with TCP/IP protocols.
Workstations are installed with Ethernet NIC (Network

Interface Card)
Serial port connection (Terminal)

P/N 1073709-EN • REV C • ISS 03JUL22
remote login interface for
® 10 / 7 / 8 / 2008 / Vista /
The above workstations come with a COM Port (DB9)

or USB-to-RS232 converter.
The above workstations have been installed with a

terminal emulator, such as Hyper Terminal included in
Windows XP/2003.
Serial cable – One end is attached to the RS232

serial port, and the other end is attached to the
console port of the managed switch.
Ethernet port connection

Network cables – Use standard network (UTP) cables

with RJ45 connectors.
The above workstations have a Web browser and

JAVA runtime environment plug-in installed.
Note: We recommend using Internet Explorer 11.0 or later to
access the managed switch. If the web interface of the
managed switch is not accessible, turn off the anti-virus
software or firewall and then try it again.
Terminal setup
To configure the system, connect a serial cable to a COM port
on a PC or notebook computer and to an RS232 type serial
port on the managed switch.
Figure 2: Console connectivity
A terminal program is required to make the software connected
to the managed switch. Windows' Hyper Terminal program
may be a good choice. The Hyper Terminal can be accessed
from the Start menu.
1. Run the terminal program on the OS.
2. When the following screen appears, ensure that the COM
port is configured as shown below. Click OK when finished
with configuration.
