Chapter 4: Web configuration
Object
Rx and Tx Unsupported
Codes
Rx and Tx Link fault PDUs
Rx and Tx Dying Gasp
Rx and Tx Critical Event
PDUs
Buttons
Click
Refresh
to refresh the page immediately.
Click
Clear
to clear the counters for the selected port.

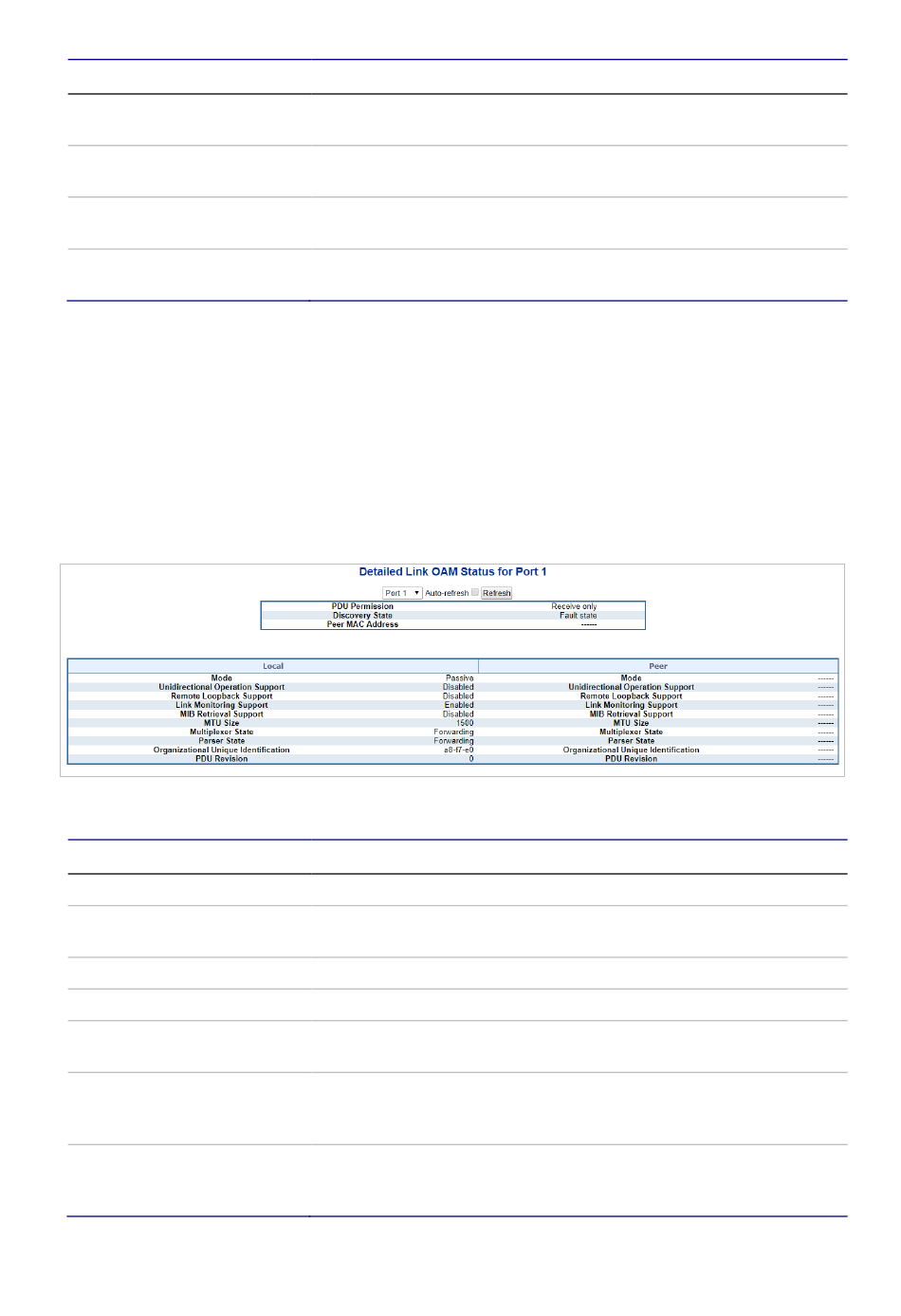

Port status
This page provides Link OAM configuration operational status. The displayed fields
show the active configuration status for the selected port.
The page includes the following fields:
Object
Mode
Unidirectional Operation
Support
Remote Loopback Support
Link Monitoring Support
MIB Retrieval Support
MTU Size
Multiplexer State
114
Description
A count of the number of OAMPDUs transmitted on this interface with
an unsupported op-code.
A count of the number of Link fault PDUs received and transmitted on
this interface.
A count of the number of Dying Gasp events received and
transmitted on this interface.
A count of the number of Critical event PDUs received and
transmitted on this interface.
Description
The mode in which the Link OAM is operating, Active or Passive.
This feature cannot be configured by the user. The status of this
configuration is retrieved from the PHY.
If status is enabled, DTE is capable of OAM remote loopback mode.
If status is enabled, DTE supports interpreting Link Events.
If status ie enabled, DTE supports sending Variable Response
OAMPDUs.
The largest OAMPDU, in octets, supported by the DTE. This value is
compared to the remotes Maximum PDU Size and the smaller of the
two is used.
When in forwarding state, the Device is forwarding non-OAMPDUs to
the lower sublayer. Incase of discarding, the device discards all the
non-OAMPDUs.
