The page includes the following fields:
Object
VLAN ID
Groups
Port Members
Buttons
• Select Auto-refresh
• Click Refresh to refresh the table starting from the input fields.
• Click I<< to update the table starting from the first entry in the MLD group table.
• Click >> to update the table, starting with the entry after the last entry currently
shown.

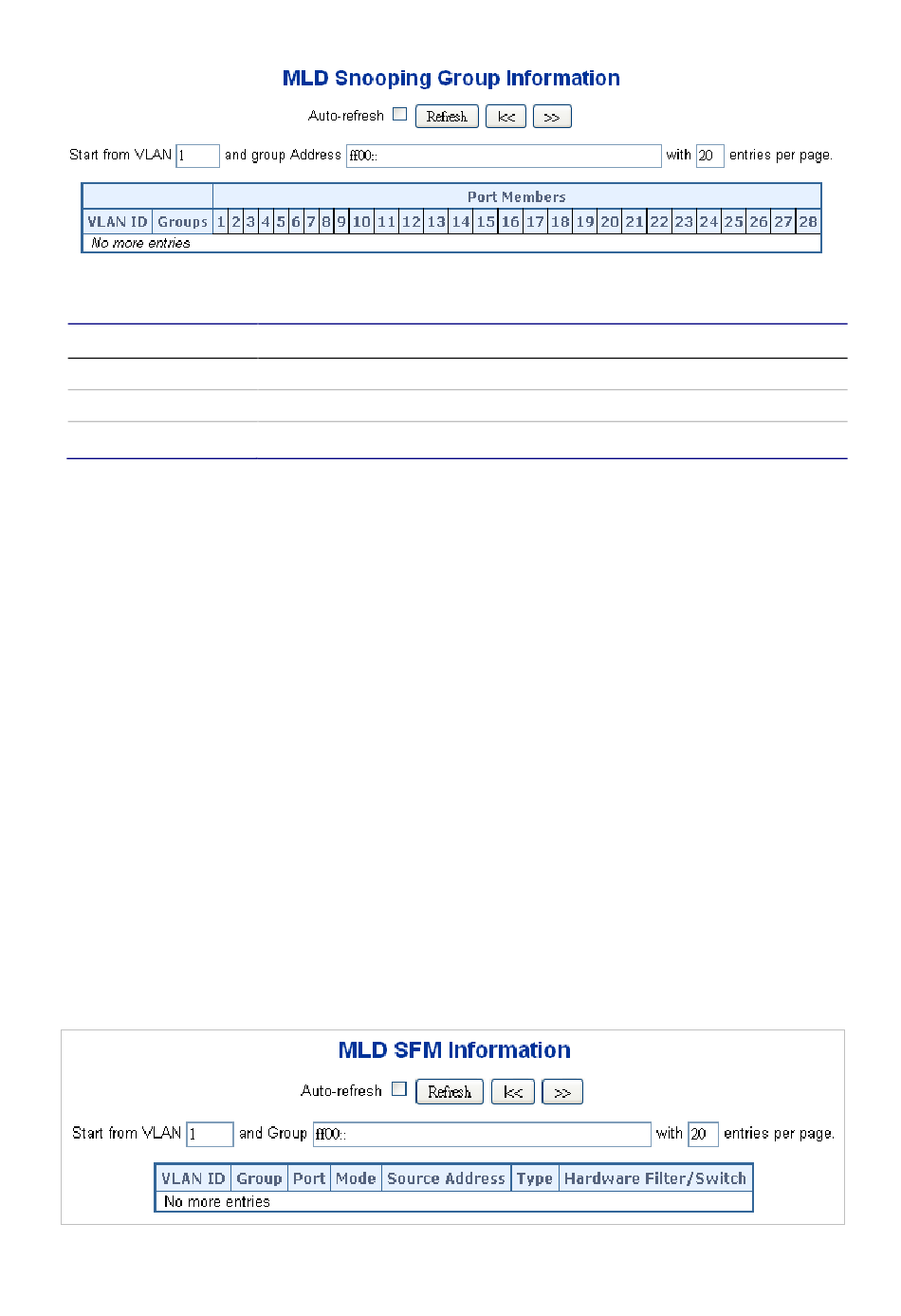

MLDv2 information
Entries in the MLD SFM (Source-Filtered Multicast) information table are shown on the
IGMP SFM Information page. The table also contains SSM (Source-Specific Multicast)
information. The table is sorted first by VLAN ID, then by group, and then by port
number. Different source addresses that belong to the same group are treated as
single entry.
Each page shows up to 99 entries from the MLD SFM Information table The range of
entries per page can be typed into the
When initially accessing the page, it shows the first 20 entries from the beginning of the
IGMP Group table. The
the starting point in the MLD information table.
