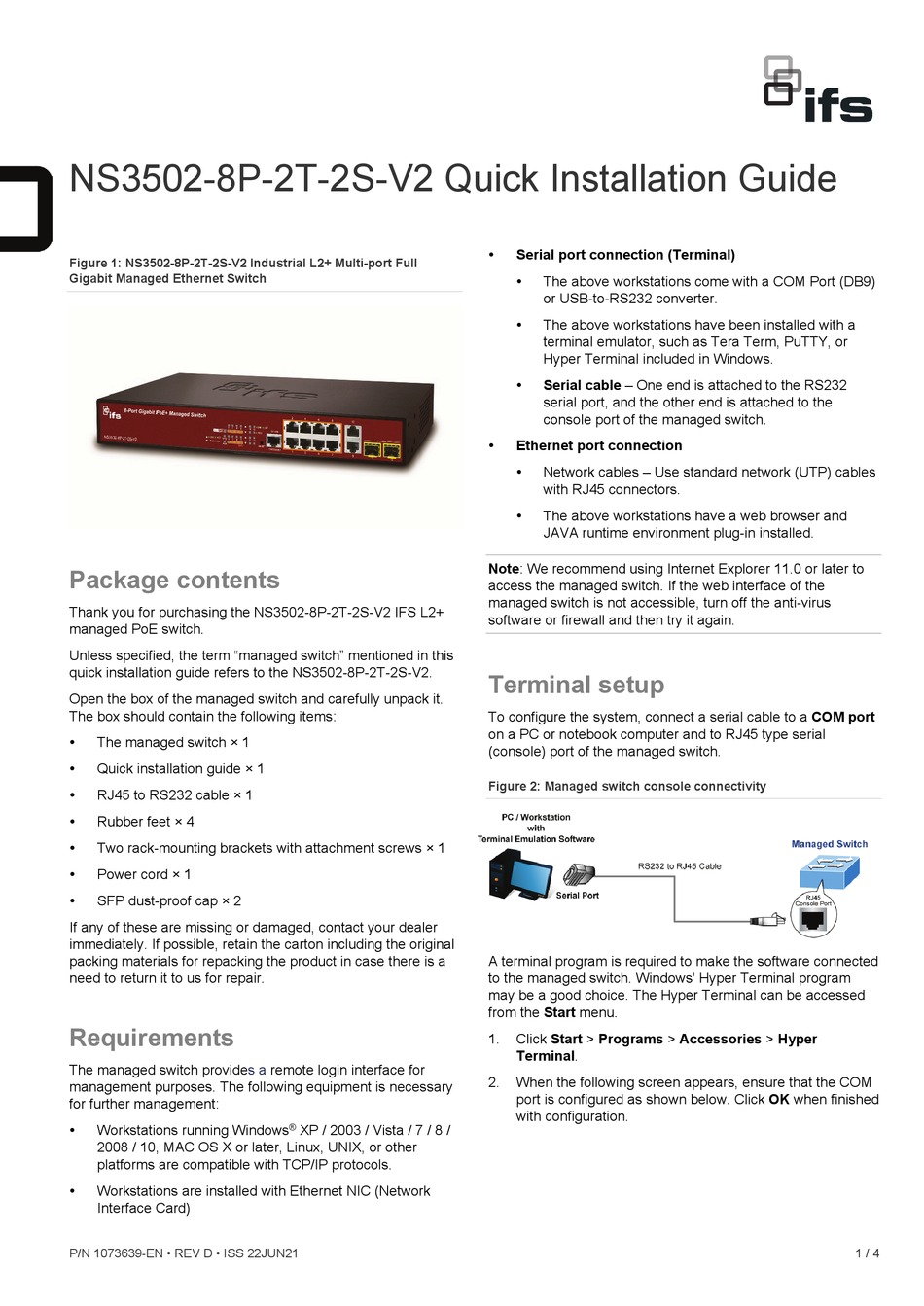

ifs NS3502-8P-2T-2S-V2 Quick Installation Manual

NS3502-8P-2T-2S-V2 Quick Installation Guide

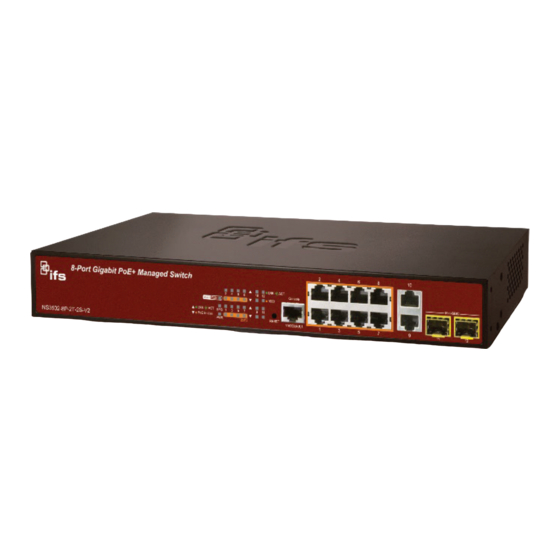

Figure 1: NS3502-8P-2T-2S-V2 Industrial L2+ Multi-port Full
Gigabit Managed Ethernet Switch
P ackage contents
0 B
Thank you for purchasing the NS3502-8P-2T-2S-V2 IFS L2+
managed PoE switch.
Unless specified, the term "managed switch" mentioned in this
quick installation guide refers to the NS3502-8P-2T-2S-V2.
Open the box of the managed switch and carefully unpack it.
The box should contain the following items:
The managed switch × 1

Quick installation guide × 1

RJ45 to RS232 cable × 1

Rubber feet × 4

Two rack-mounting brackets with attachment screws × 1

Power cord × 1

SFP dust-proof cap × 2

If any of these are missing or damaged, contact your dealer
immediately. If possible, retain the carton including the original
packing materials for repacking the product in case there is a
need to return it to us for repair.
R equirements
1 B
The managed switch provides a
management purposes. The following equipment is necessary
for further management:
Workstations running Windows

2008 / 10, MAC OS X or later, Linux, UNIX, or other
platforms are compatible with TCP/IP protocols.
Workstations are installed with Ethernet NIC (Network

Interface Card)
P/N 1073639-EN • REV D • ISS 22JUN21
remote login interface for
® XP / 2003 / Vista / 7 / 8 /
Serial port connection (Terminal)

The above workstations come with a COM Port (DB9)

or USB-to-RS232 converter.
The above workstations have been installed with a

terminal emulator, such as Tera Term, PuTTY, or
Hyper Terminal included in Windows.
Serial cable – One end is attached to the RS232

serial port, and the other end is attached to the
console port of the managed switch.
Ethernet port connection

Network cables – Use standard network (UTP) cables

with RJ45 connectors.
The above workstations have a web browser and

JAVA runtime environment plug-in installed.
Note: We recommend using Internet Explorer 11.0 or later to
access the managed switch. If the web interface of the
managed switch is not accessible, turn off the anti-virus
software or firewall and then try it again.
T erminal setup
2 B
To configure the system, connect a serial cable to a COM port
on a PC or notebook computer and to RJ45 type serial
(console) port of the managed switch.
Figure 2: Managed switch console connectivity
A terminal program is required to make the software connected
to the managed switch. Windows' Hyper Terminal program
may be a good choice. The Hyper Terminal can be accessed
from the Start menu.
1. Click Start > Programs > Accessories > Hyper
Terminal.
2. When the following screen appears, ensure that the COM
port is configured as shown below. Click OK when finished
with configuration.
1 / 4
