Chapter 4: Web configuration
Promiscuous ports
•
Ports from which traffic can be forwarded to all ports in the private VLAN.
•
Ports that can receive traffic from all ports in the private VLAN.
Isolated ports
•
Ports from which traffic can only be forwarded to promiscuous ports in the private
VLAN.
•
Ports that can receive traffic from only promiscuous ports in the private VLAN.
The configuration of promiscuous and isolated ports applies to all private VLANs. When
traffic comes in on a promiscuous port in a private VLAN, the VLAN mask from the
VLAN table is applied. When traffic comes in on an isolated port, the private VLAN
mask is applied in addition to the VLAN mask from the VLAN table. This reduces the
ports to which forwarding can be done to just the promiscuous ports within the private
VLAN.

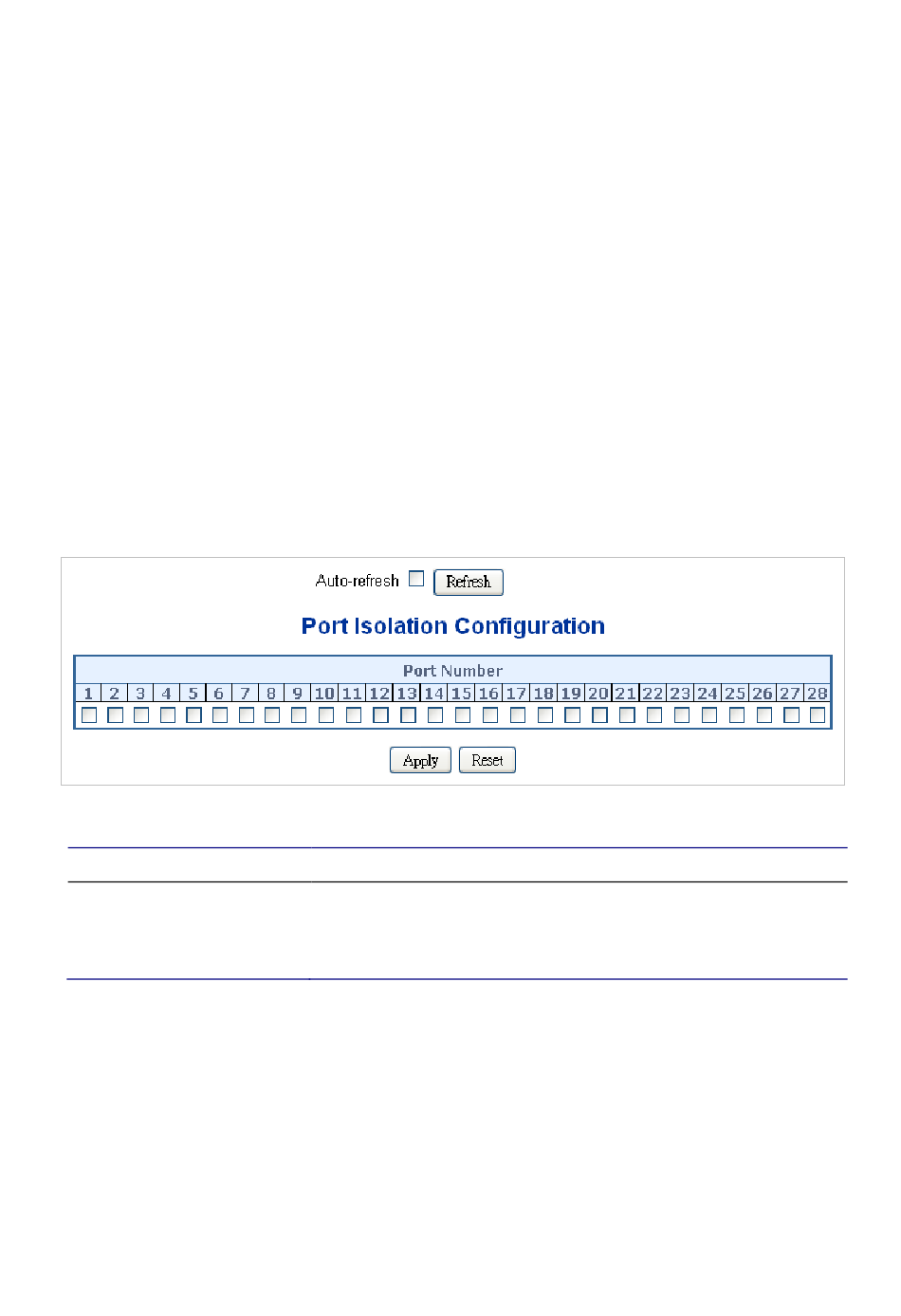

The Port Isolation Configuration page is used for enabling or disabling port isolation on
ports in a private VLAN. A port member of a VLAN can be isolated to other isolated
ports on the same VLAN and private VLAN.
The page includes the following fields:
Object
Port Members
Buttons
•
Click
Apply
to apply changes.
•
Click
Reset
to undo any changes made locally and revert to previously saved
values.
•
Select the
Auto-refresh
refresh occurs every three seconds.
•
Click
Refresh
to refresh the page immediately.
146
Description
A check box is provided for each port of a private VLAN. When
selected, port isolation is enabled on that port. When deselected, port
isolation is disabled on that port.
By default, port isolation is disabled on all ports.
check box to refresh the page automatically. Automatic
