Object
VLAN ID
Priority
DSCP
Auto-negotiation
Auto-negotiation
status
Buttons
•
Click
Auto-refresh
every three seconds.
•
Click
Refresh
to refresh the page immediately.
Neighbor

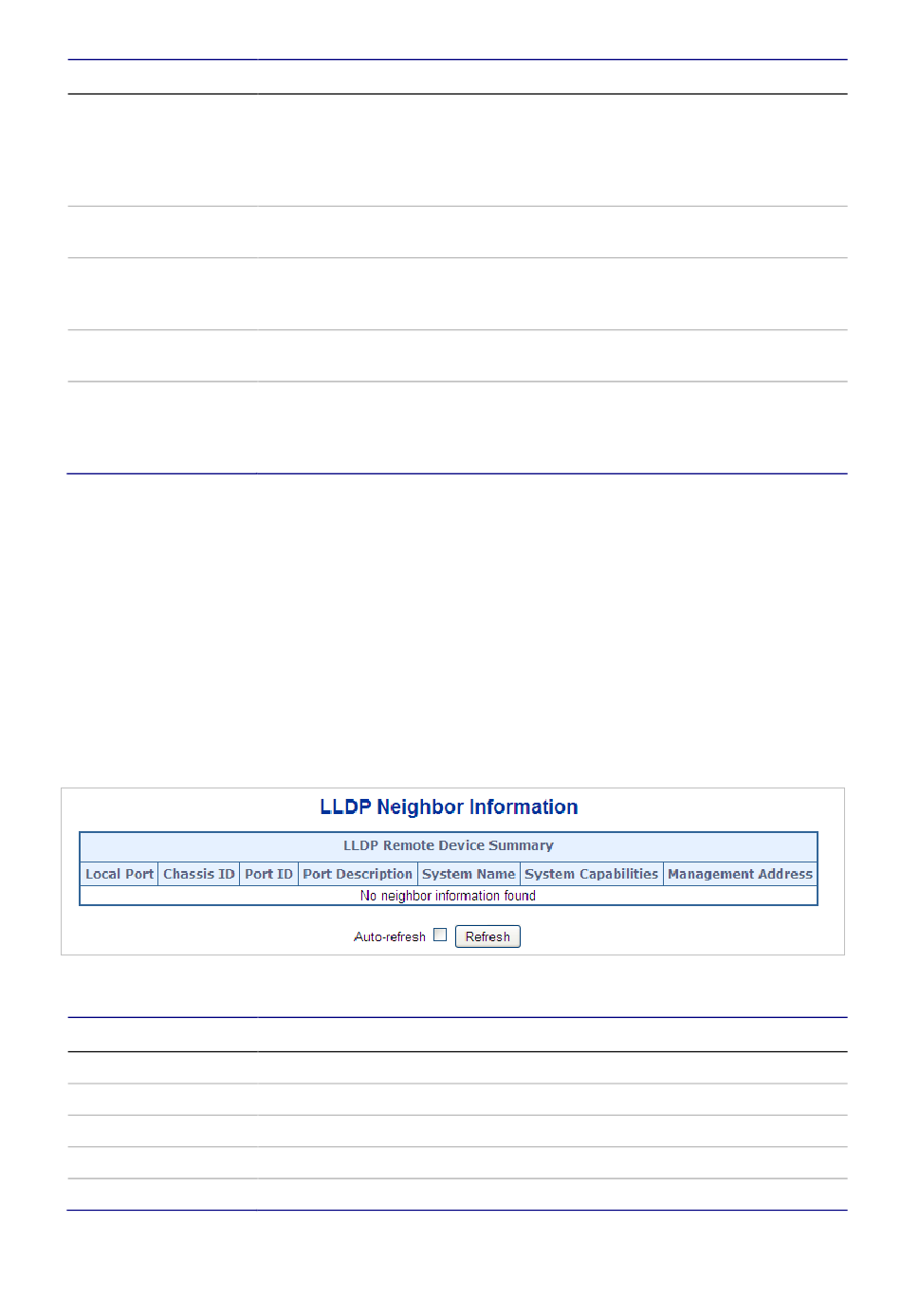

The LLDP Neighbor Information page provides a status overview for all LLDP
neighbors. The displayed table contains a row for each port on which an LLDP
neighbor is detected.
The page includes the following fields:
Object
Local Port
Chassis ID
Port ID
Port Description
System Name
NS4702-24P-4X-V2 Managed Switch User Manual
Description
VLAN ID is the VLAN identifier (VID) for the port as defined in IEEE 802.1Q-
2003. A value of 1 through 4094 is used to define a valid VLAN ID. A value
of 0 (Priority Tagged) is used if the device is using priority tagged frames as
defined by IEEE 802.1Q-2003, meaning that only the IEEE 802.1D priority
level is significant and the default PVID of the ingress port is used instead.
Priority is the Layer 2 priority to be used for the specified application type.
One of eight priority levels (0 through 7).
DSCP is the DSCP value to be used to provide Diffserv node behavior for
the specified application type as defined in IETF RFC 2474. Contain one of
64 code point values (0 through 63).
Auto-negotiation identifies if MAC/PHY auto-negotiation is supported by the
link partner.
Auto-negotiation status identifies if auto-negotiation is currently enabled at
the link partner. If Auto-negotiation is supported and Auto-negotiation
status is disabled, the 802.3 PMD operating mode will be determined by the
operational MAU type field value rather than by auto-negotiation.
to refresh the page automatically. Automatic refresh occurs
Description
The port on which the LLDP frame was received.
The identification of the neighbor's LLDP frames.
The identification of the neighbor port.
The port description advertised by the neighbor unit.
The name advertised by the neighbor unit.
Chapter 4: Web configuration
323
