Object
Parser State
Organizational Unique
Identification
PDU Revision
PDU Permission
Discovery State
Buttons
• Click Refresh to refresh the page immediately.
• Select Auto-refresh
every 3 seconds.
Event status

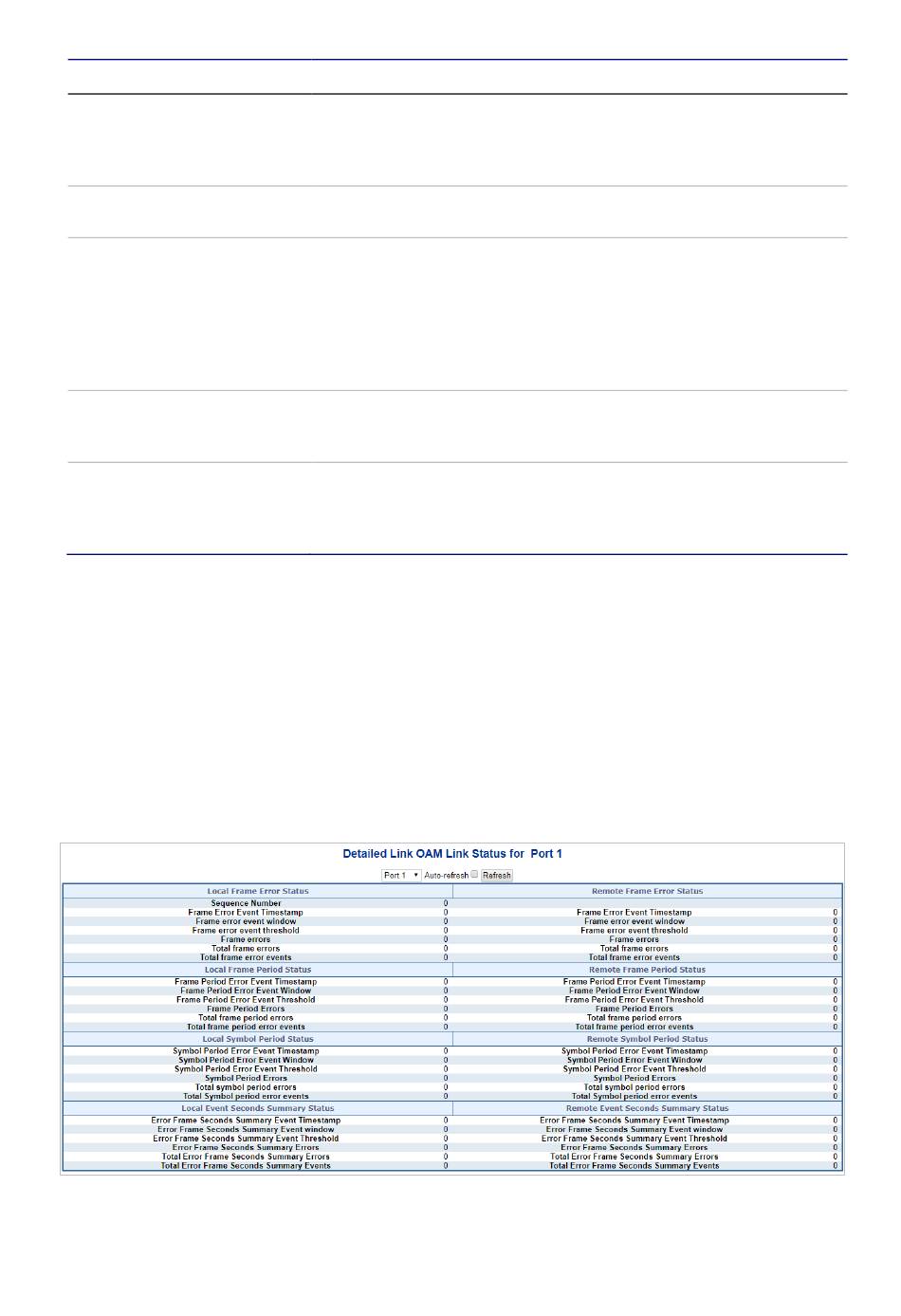

This page permits the user to inspect and change the current Link OAM Link Event
configurations.
The page includes the following fields:
NS4702-24P-4X-V2 Managed Switch User Manual
Description
When in forwarding state, Device is forwarding non-OAMPDUs to
higher sublayer. When in loopback, the device is looping back non-
OAMPDUs to the lower sublayer. When in discarding state, the
device is discarding non-OAMPDUs.
24-bit Organizationally Unique Identifier of the vendor.
Indicates the current revision of the Information TLV. The value of this
field shall start at zero and be incremented each time something in
the Information TLV changes. Upon reception of an Information TLV
from a peer, an OAM client may use this field to decide if it needs to
be processed (an Information TLV that is identical to the previous
Information TLV doesn't need to be parsed as nothing in it has
changed).
This field is available only for the Local DTE. It displays the current
permission rules set for the local DTE. Possible values are "Link
fault","Receive only", "Information exchange only","ANY".
Displays the current state of the discovery process. Possible states
are Fault state, Active state, Passive state,
SEND_LOCAL_REMOTE_STATE,
SEND_LOCAL_REMOTE_OK_STATE, SEND_ANY_STATE.
to refresh the page automatically. Automatic refresh occurs
