The page includes the following fields:
Object
Router ID
SPF Delay
SPF Hold Time
SPF Max. Wait Time
Last Executed SPF Time
Stamp
Min. LSA Interval
Min. LSA Arrival
External LSA Count
External LSA Checksum
Attached Area Count
Buttons
• Click Clear OSPF Process
• Select Auto-refresh
every 3 seconds.
• Click Refresh to refresh the page immediately.
Area status

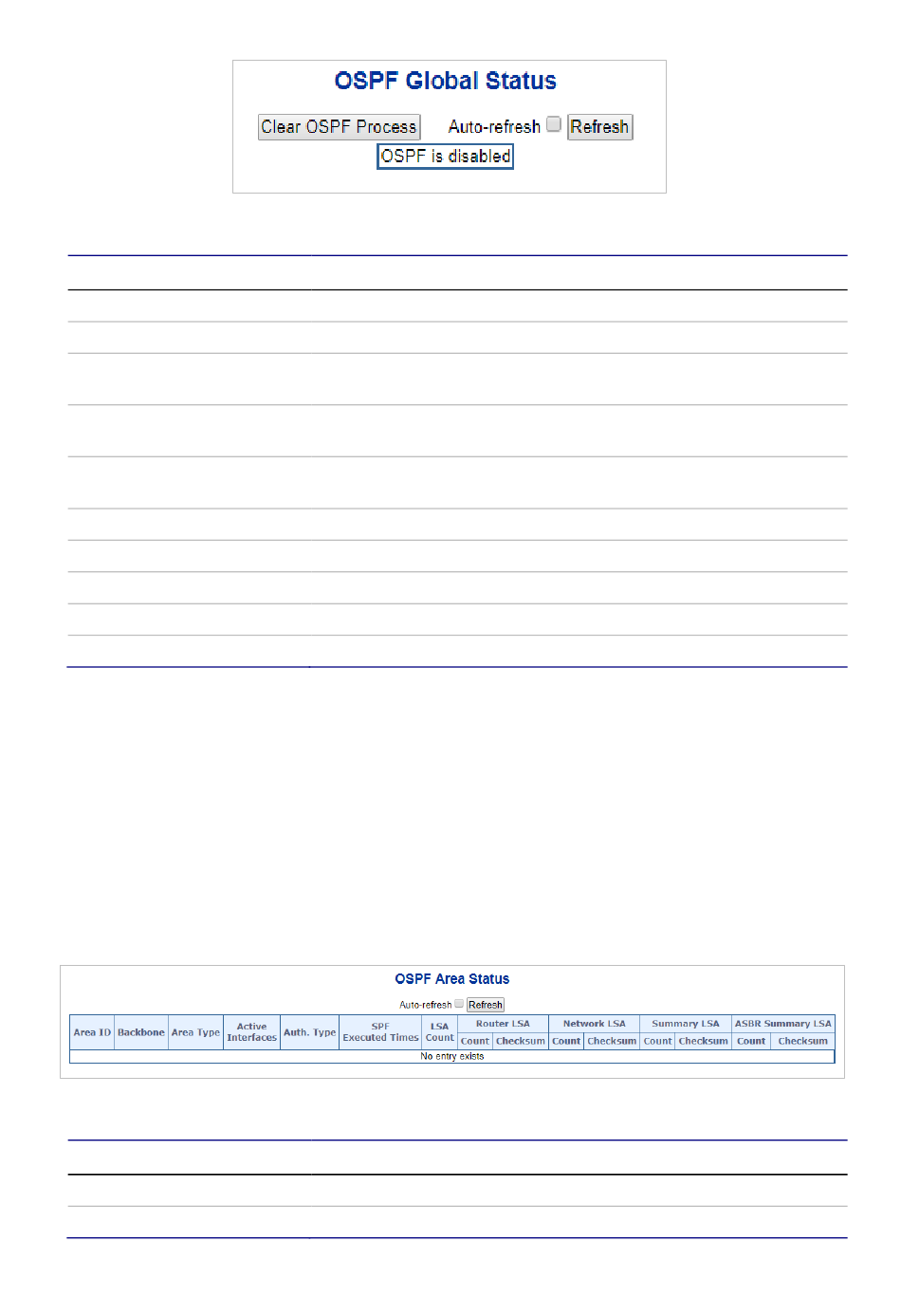

OSPF network area status information is provided on the OSPF Area Status page.
The page includes the following fields:
Object
Area ID
Backbone
86
Description
OSPF router ID.
Delay time (in seconds)of SPF calculations.
Minimum hold time (in milliseconds) between consecutive SPF
calculations.
Maximum wait time (in milliseconds) between consecutive SPF
calculations.
Time (in milliseconds) that has passed between the start of the SPF
algorithm execution and the current time.
Minimum interval (in seconds) between link-state advertisements.
Maximum arrival time (in milliseconds) of link-state advertisements.
Number of external link-state advertisements.
Number of external link-state checksum.
Number of areas attached for the router.
to reset the current OSPF process.
to refresh the page automatically. Automatic refresh occurs
Description
OSPF area ID.
Indicates a backbone area.
