The e-Maintenance/imageWARE Remote system allows a customer's device information and status to be monitored via the Internet on a server called the UGW

(Universal Gateway) Server.

The following device information/ statuses can be monitored.

- Service mode counters

- Parts counters

- Mode counters

- Firmware information

- Service call errors log

- Jam log

- Alarm log

- Alert change statuses (Toner/ ink low/ out, etc.)

Device monitor information above is sent by the e-RDS (embedded Remote Diagnostic System), which is embedded in the devices.

Further, as the above is all customer information, https SOAP protocol is used for communication between the UGW and the device, providing enhanced security

(SSL client communication)

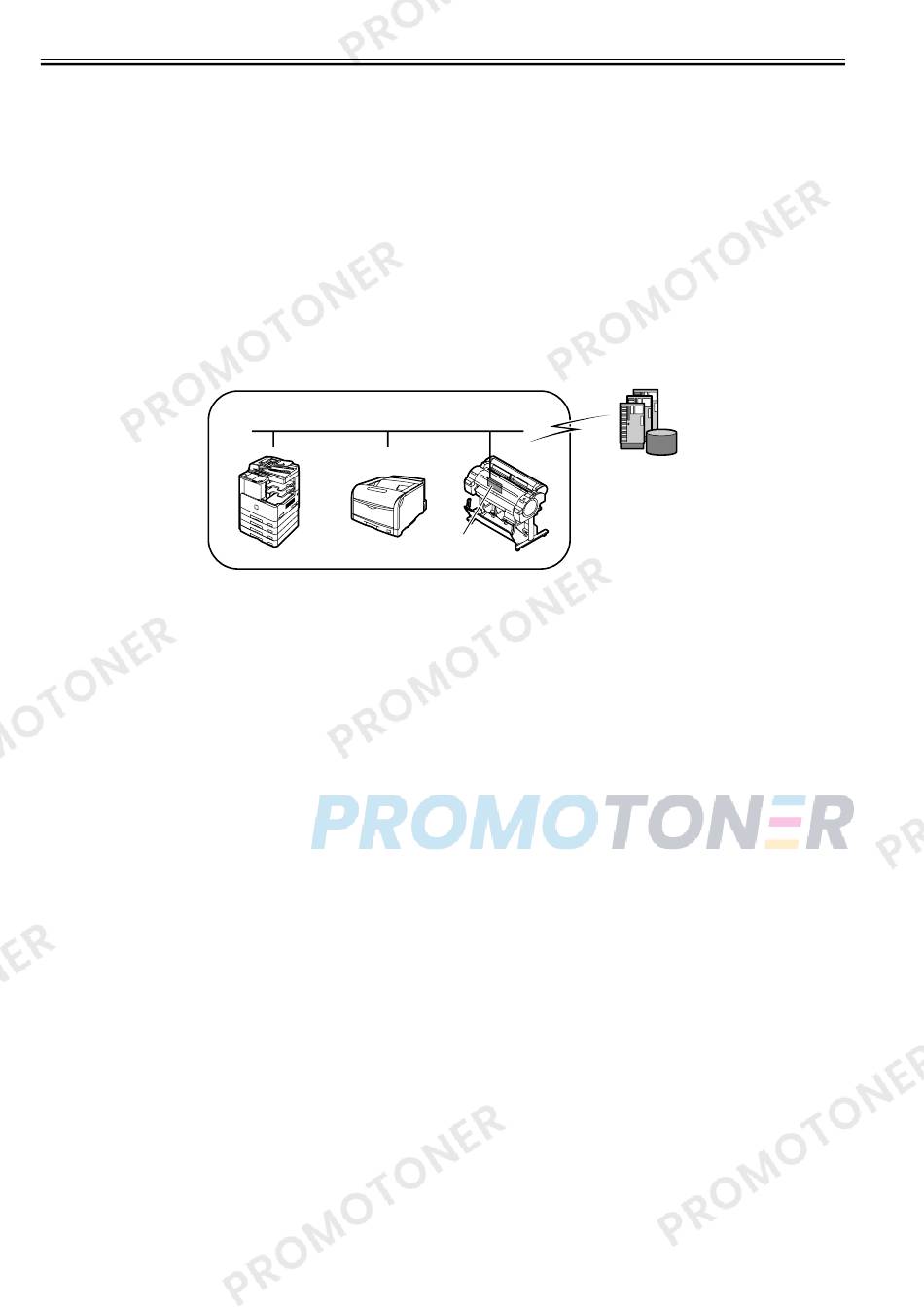

UGW

e-RDS

F-7-20

2. Feature and benefits

Device (e-RDS) embedded with network module can realize a front-end processing of the e-Maintenance/imageWARE Remote system without attaching an extra

hardware equipment.

The e-Maintenance/ imageWARE Remote system can be implemented without imposing a burden on the users.

3. Settings procedures

3.1 Advance preparations

To monitor the device with e-Maintenance/imageWARE Remote, the following settings are required.

1) Advance confirmation

Check with the UGW administrator whether the printer to be connected to the e-Maintenance/imageWARE remotely has been registered in the UGW.

2) Advance preparations

Interview the user's system administrator in advance to find out the following information about the network.

Information item -1

IP address setting methods

Check whether automatic setting or manual setting is to be used, and confirm the information below.

- Automatic setting: (DHCP, RARP, BOOTP) (ON/OFF selection)

- Manual setting: IP address, subnet mask and gateway address to be set

Information item -2

Is there a DNS server in use?

If there is a DNS server in use, find out the following.

- Primary DNS server address

- Secondary DNS server address (optional)

Information item -3

Is there a proxy server?

If there is a proxy server in use, find out the following.

- Proxy server address

- Port number connected to proxy server

Information item -4

Is proxy server authentication required?

If proxy server authentication is required, find out the following.

- User name and password required for proxy authentication

3) Network settings

Based on the results of the information obtained in (2) Advance preparations, make the device network related settings in accordance with the following procedures.

3.2 e-RDS settings

1) Enter the service mode.

- Turn off the printer power.

- Turn on the power while pressing the [Load] key and [Navigate] key.

* Keep pressing the above keys until "Initializing" is displayed.

- "S" appears at the top right of the display.

7-26
