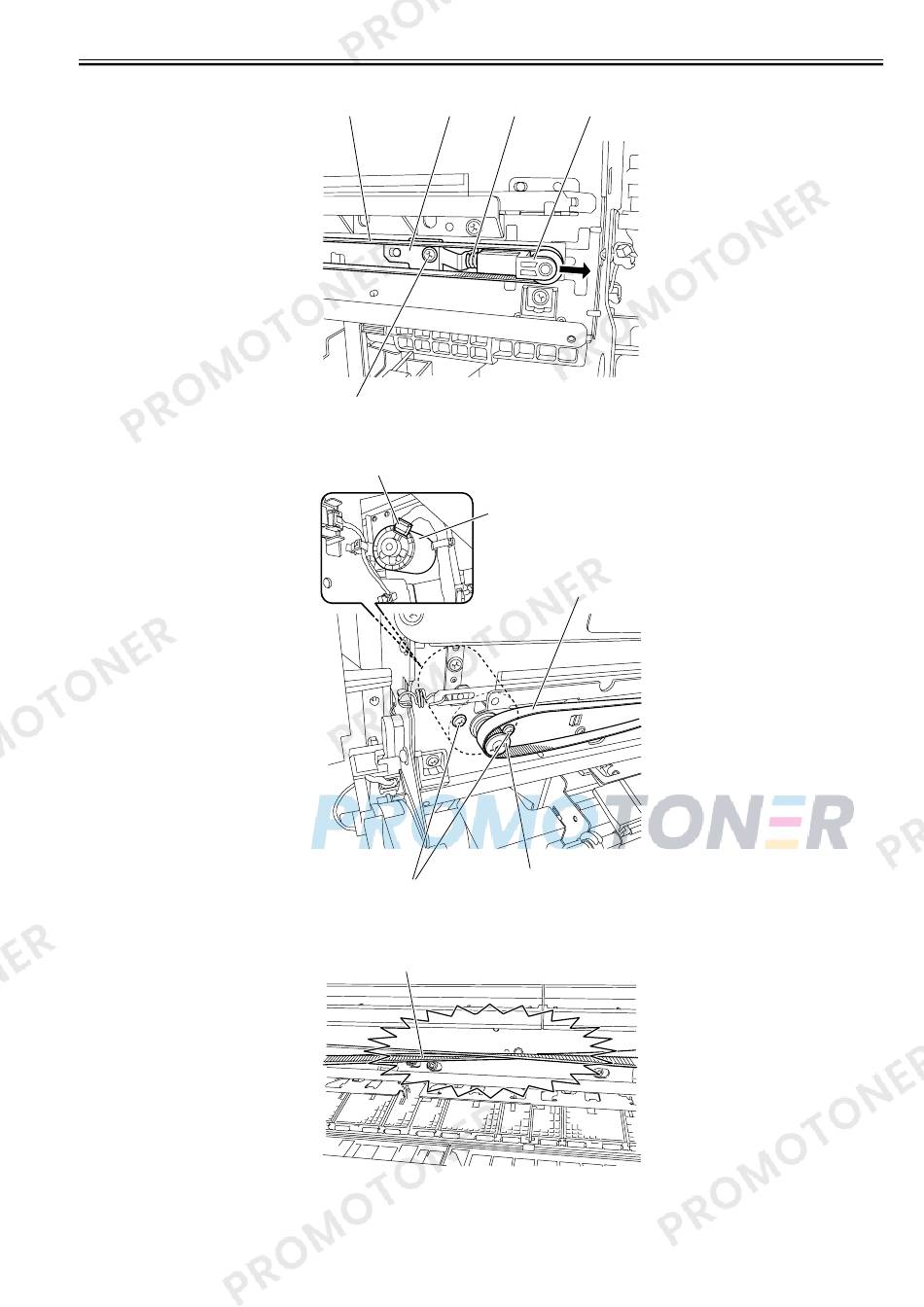

4) Remove one screw [1], pulley retainer [2] and spring [3] to loosen the carriage belt [4]. Remove the belt from the pulley unit [5], and then the pulley unit [5].
5) Remove the belt [1] from the pulley [5], and then remove two screws [2] and disconnect one connector [3] to remove the carriage motor [4].
Precautions about Reinstallation of Carriage Motor
- Reinstall the carriage belt [1] carefully so that it is not twisted. After reinstalling it, check whether the carriage moves on the platen smoothly.
[4] [2] [3]
[1]
F-4-28
[3]
[4]
[2]
F-4-29
[1]
F-4-30
[5]
[1]
[5]
