Canon ImagePROGRAF iPF650 Series Service Manual page 138

Chapter 4

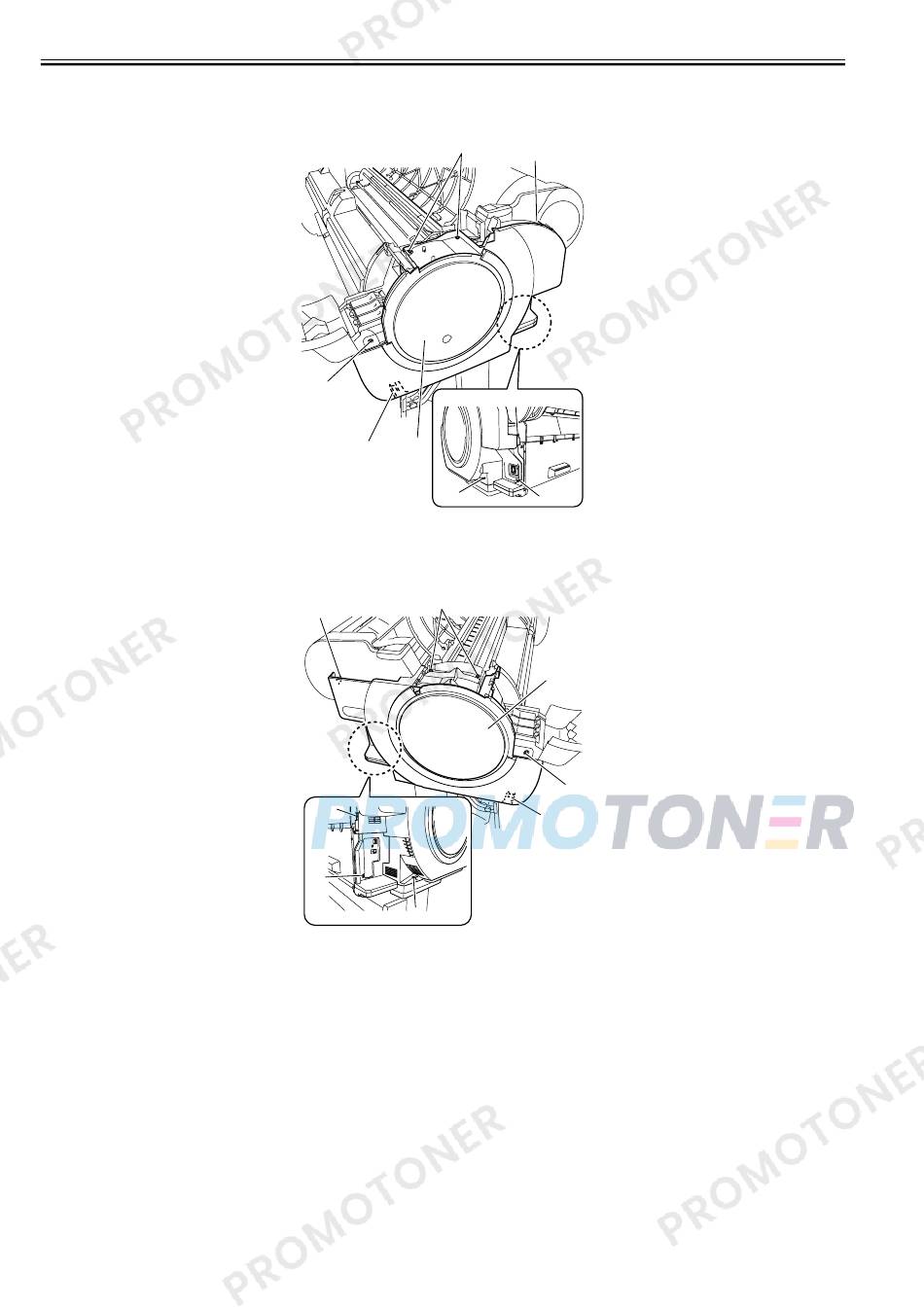

c) Right Cover
Removing the Right Cover
1) To remove the right cover, remove the operation panel.
2) Remove six screws [1], release two hooks [2], and then remove the right cover [3].
d) Left Cover
Removing the Left Cover
1) To remove the left, remove the upper left cover.
2) Remove six screws [1], release two hooks [2], and then remove the left cover [3].
4-4
[1]
[1]
[3]
[2]
[1]
F-4-6
[1]
[2]
[1]
[1]
[1]
F-4-7
[2]
[1]
[1]
[3]
[1]
[2]
