Canon ImagePROGRAF iPF650 Series Service Manual page 170

Chapter 4

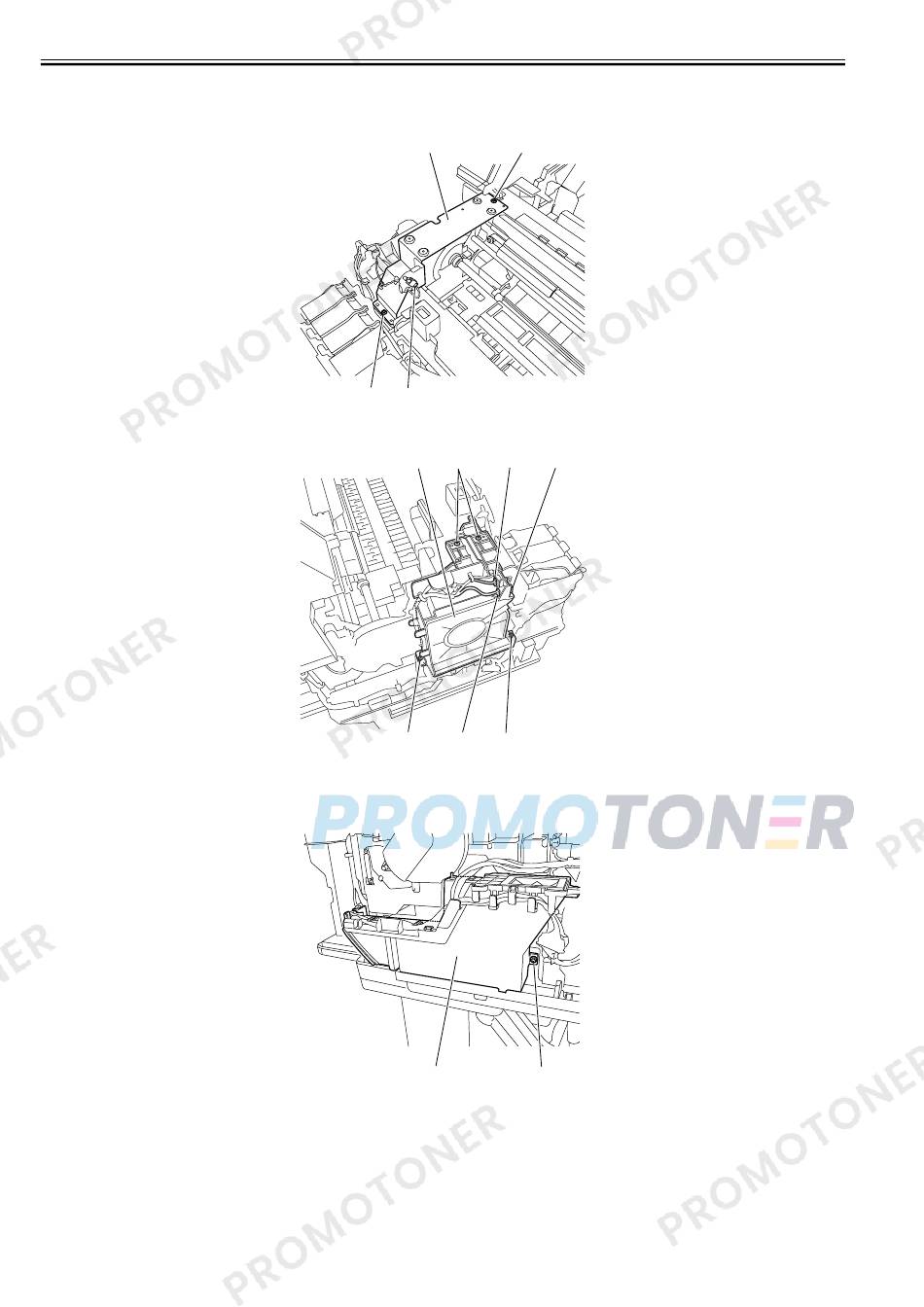

a) Mist Fan
Removing the Mist Fan
1) Remove the rear upper cover and front cover.
2) Remove two screws [1] and disconnect two connectors [2], and then remove the cable from the cable guide to remove the support plate [3].
3) Remove four screws [1] and disconnect three connectors [2], and then remove the cable from the cable guide to remove the mist fan [3].
b) Mist Exhaust Duct
Removing the Mist Exhaust Duct
1) Remove the mist fan.
2) Remove one screw [1], and then remove the cable from the cable guide to remove the mist exhaust duct [2].
4-36
[3] [1]
[1] [2]
F-4-83
[3] [1] [2]
[1] [2] [1]
F-4-84
[2] [1]
F-4-85
[2]
