Cutter - Canon ImagePROGRAF iPF650 Series Service Manual

Chapter 4

4.3.6 Cutter

0023-5529
iPF650 / iPF655
a) Cutter
Removing the Cutter
1) Drain ink. Refer to "Draining Ink" in "Precautions about Disassembly/Reassembly" in "Disassembly/Reassembly".
2) To remove the cutter, remove the left ink tank cover, mist fan, and left ink tank unit.

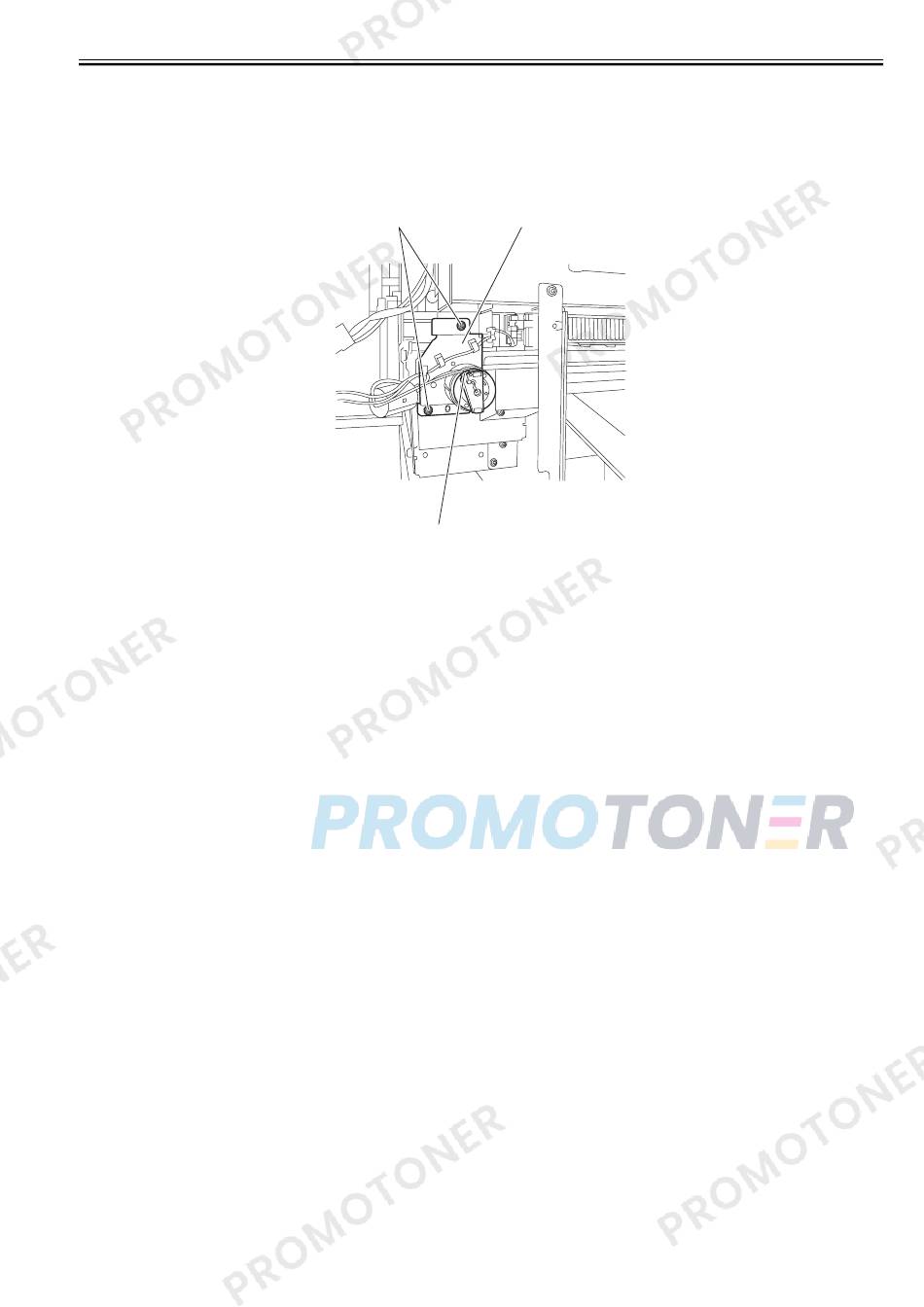

3) Remove two screws [1] and disconnect one connector [2], and then remove the cutter unit [3].
[1] [3]
[2]
F-4-33
4-15
