Canon ImagePROGRAF iPF650 Series Service Manual page 152

Chapter 4

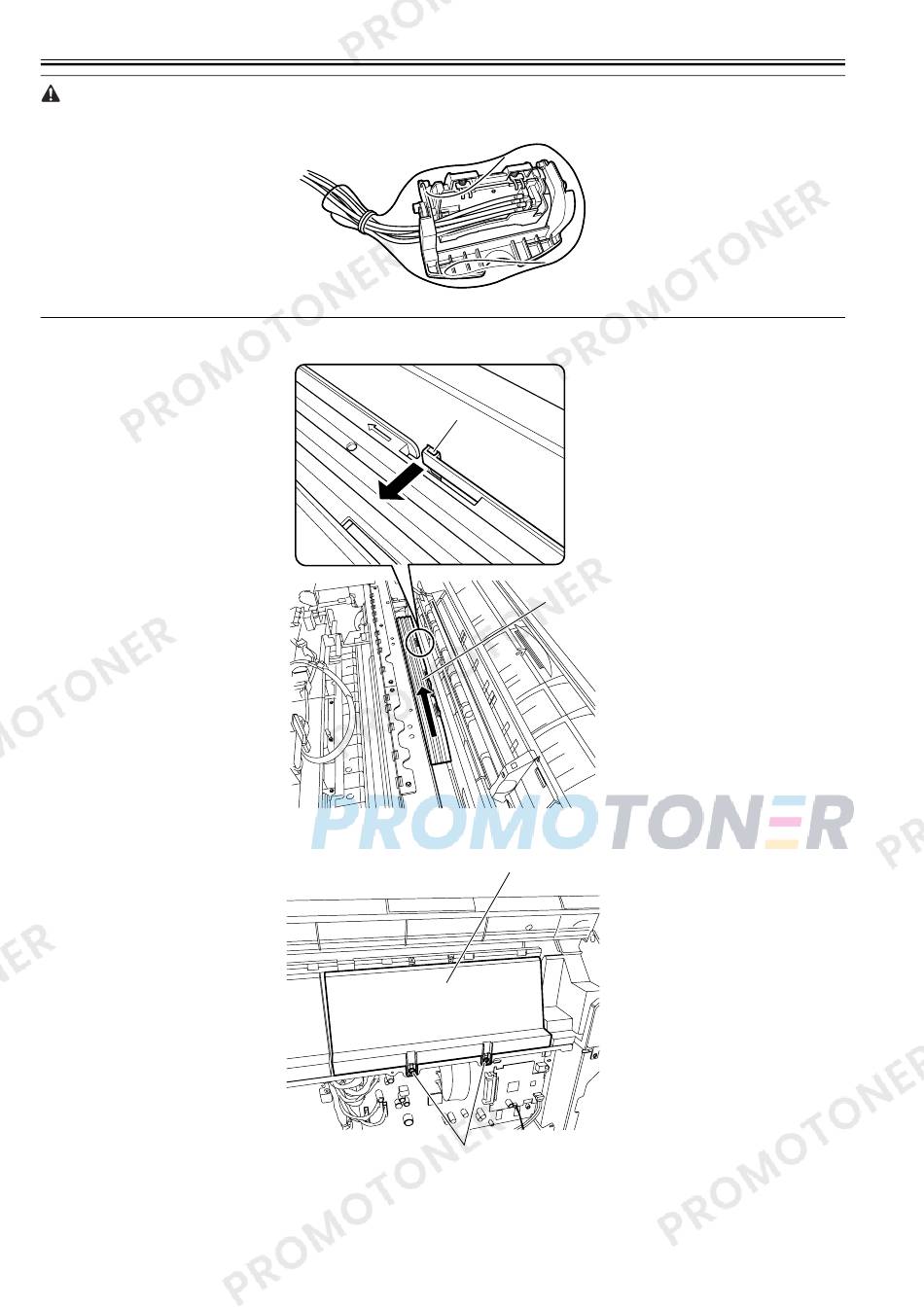

- Remove the joint carefully so that ink does not spout.
- Put a plastic bag or the like on the ink tube joint to prevent ink from spouting.
6) Move the carriage to the HP side on the platen.
7) Release the hook [1], and then remove the flexible cable guide [2] by sliding it to the left.
8) Remove two screws [1], and then remove the feed guide (left) [2].
4-18
F-4-38
[1]
[2]
F-4-39
[2]
[1]
F-4-40
