1.1 Product Overview

1.1.1 Product Overview
iPF650 / iPF655
This printer is capable of printing on A4- to A1-size cut sheets and its maximum print width is 24 inches. This printer is a desktop large-format printer five-colors
(dye- and pigment-based colors) printer that can be used to print CAD and office documents as well as handy POP and posters.

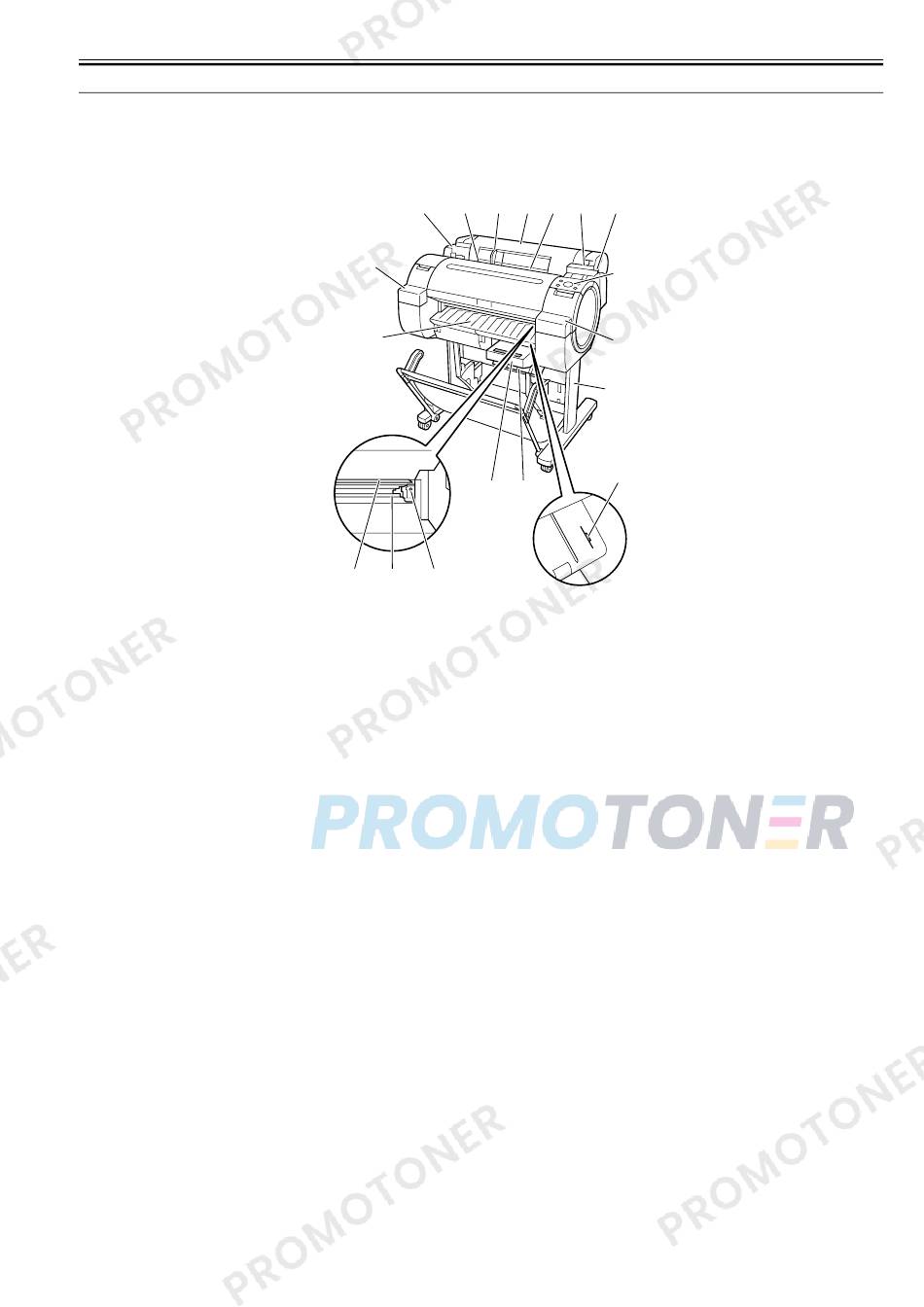

[1] Roll media cover
[2] Media loading slot
[3] Roll media temporary table
[4] Release lever
[5] Operation panel
[6] Ink tank cover
[7] Media alignment line
[8] Maintenance cartridge cover
[3] [14] [15] [1]
[6]
[13]
[9] [8]
[12] [11] [10]
F-1-1
T-1-1
[9] Maintenance cartridge
[10] Cutter unit
[11] Cutter rail
[12] Paper eject slot
[13] Output guide
[14] Upper cover
[15] Width guide
[16] Stand
[2] [3] [4]
[5]
[6]
[16]
[7]
