4.4 Applying the Grease
4.4.1 Applying the Grease
iPF650 / iPF655
Apply the grease at the location shown below.
Smear the grease lightly and evenly with a flat brush.
Don't apply the grease to locations other than those designated. Unwanted grease may cause poor print quality, take particular care that grease does not get onto the
wiper, cap, or the linear scale.
No.
1 Joint Base Rib
2 Shaft Cleaner
3 Upper Cover Hinge Catch
Roll Cover Slide Guid
4 Contact between Pinch Roller Release Shaft and Pinch
Roller
Pinch Roller Pressure Release Gear
Release lever
Bushing of Feed Roller

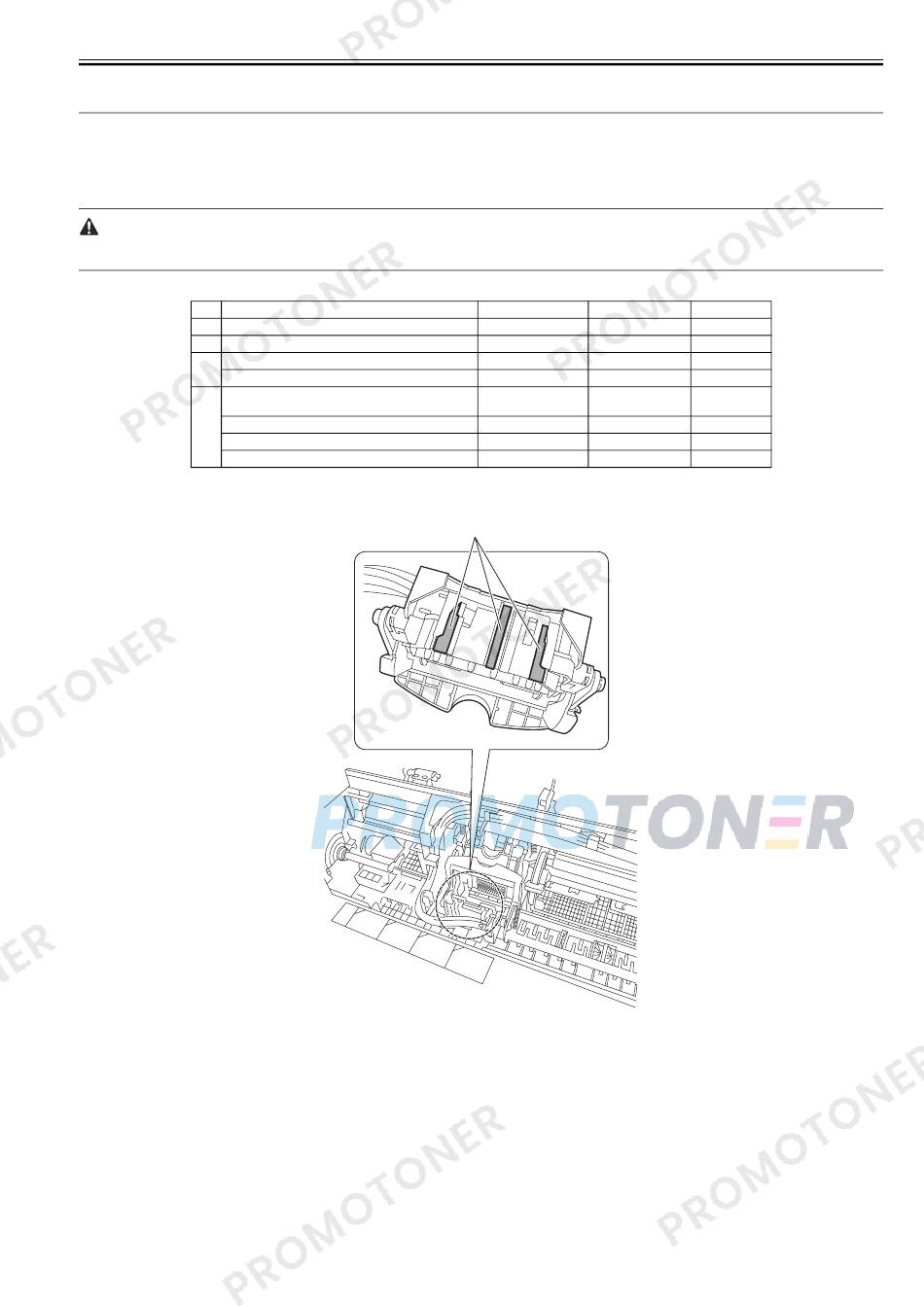

1. Joint Base Rib [1]
T-4-2
Place
Molykote PG-641
EU-1
EU-1
EU-1
Molykote PG-641
Molykote PG-641
Molykote PG-641
Molykote PG-641
[1]
F-4-108
Kind Quantity
approx.8-20mg
soaks enough
approx.8-20mg
approx.8-20mg
approx.8-20mg
approx.8-20mg
approx.8-20mg
approx.8-20mg
