Canon ImagePROGRAF iPF650 Series Service Manual page 140

Chapter 4

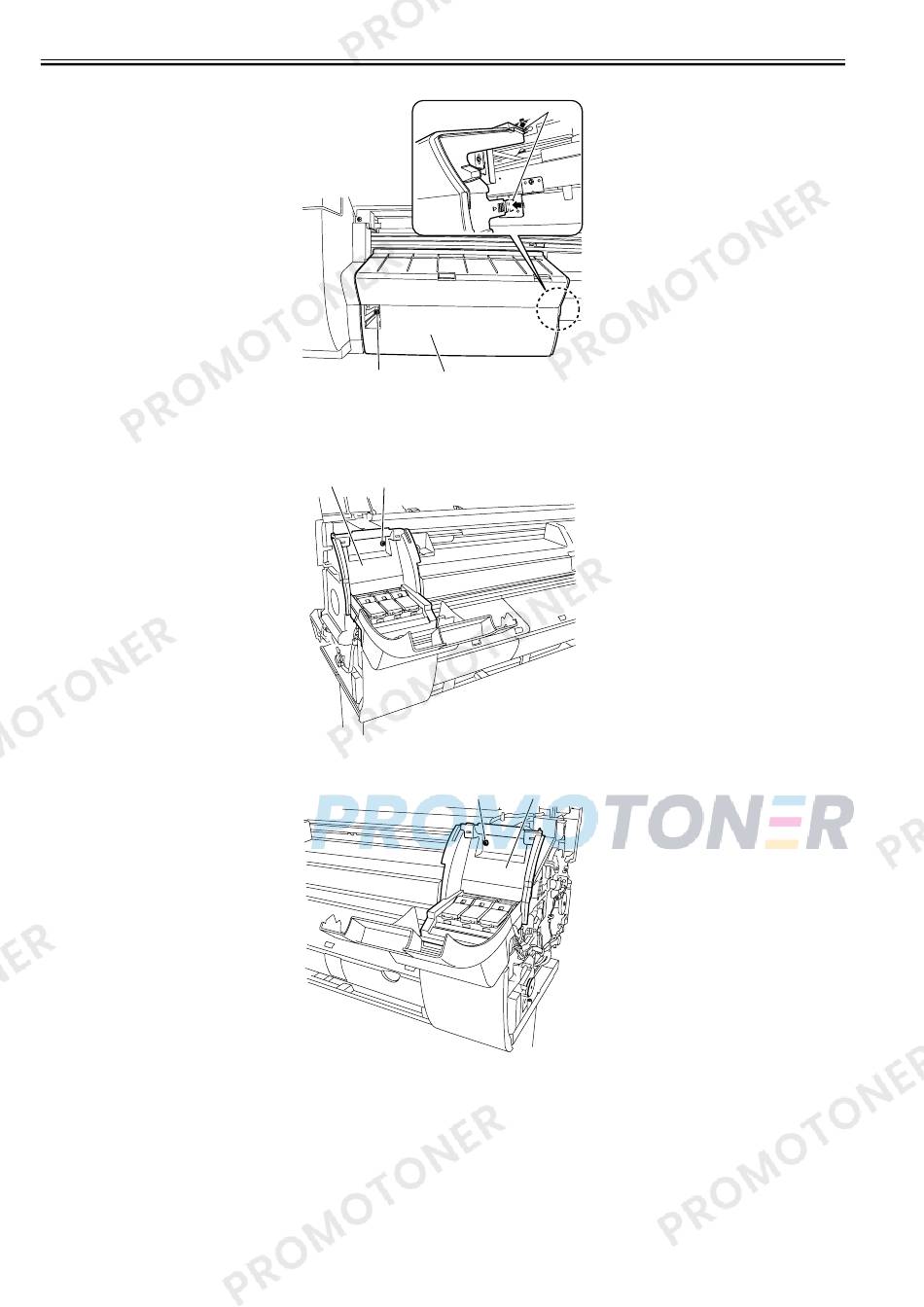

3) Remove one screw [1], release two hooks [2], and then remove the output guide (middle)/left [3].
g) Left/Right Ink Tank Cover
Removing the Left/Right Ink Tank Cover
1) To remove the left/right ink tank cover [2], remove the left/right cover, and then one screw [1].
<Left Ink Tank Cover>
<Right Ink Tank Cover>
4-6
[1] [3]
F-4-11
[2] [1]
F-4-12
[1]
F-4-13
[2]
[2]
