Canon ImagePROGRAF iPF650 Series Service Manual page 139

e) Front Cover

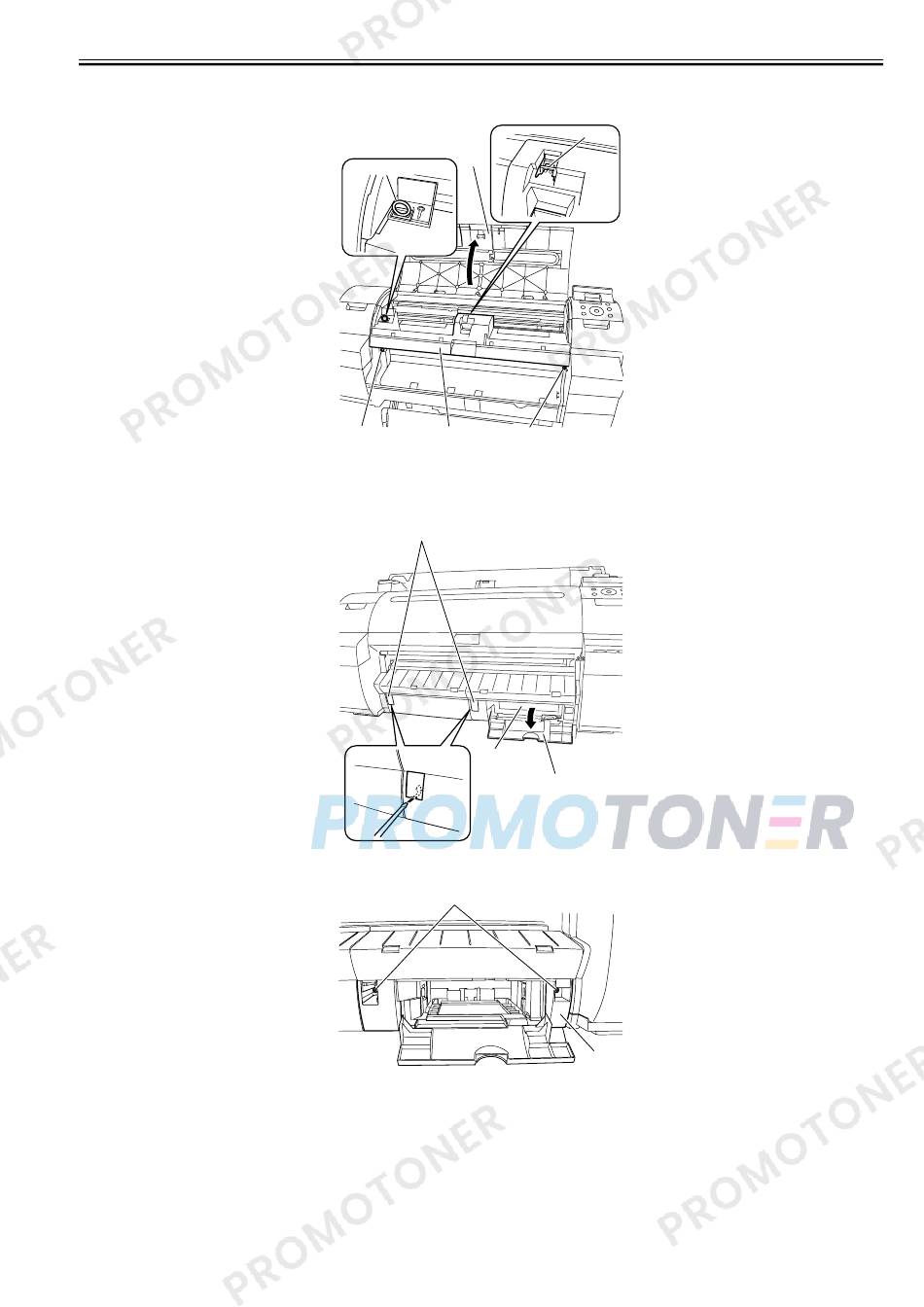

Removing the Front Cover
1) To remove the front cover [5], open the upper cover [1] to remove the cleaner brush [2], remove two screws [3], and then release one hook [4].
f) Output Guide
Removing the Output Guide
1) To remove the output guide, open the maintenance cartridge cover [1] to remove the maintenance cartridge [2], and then remove the blanking cover [3] by in-
serting a flat blade screwdriver in the slit.
2) Remove two screws [1], and then the output guide (right) [2].
[1]
[2]
[3]
[5] [3]
F-4-8
[3]
[2]
F-4-9
[1]
F-4-10
[4]
[1]
[2]
Chapter 4
4-5
