Chapter 2 DSAM Meter Operation
Using AutoTests Mode

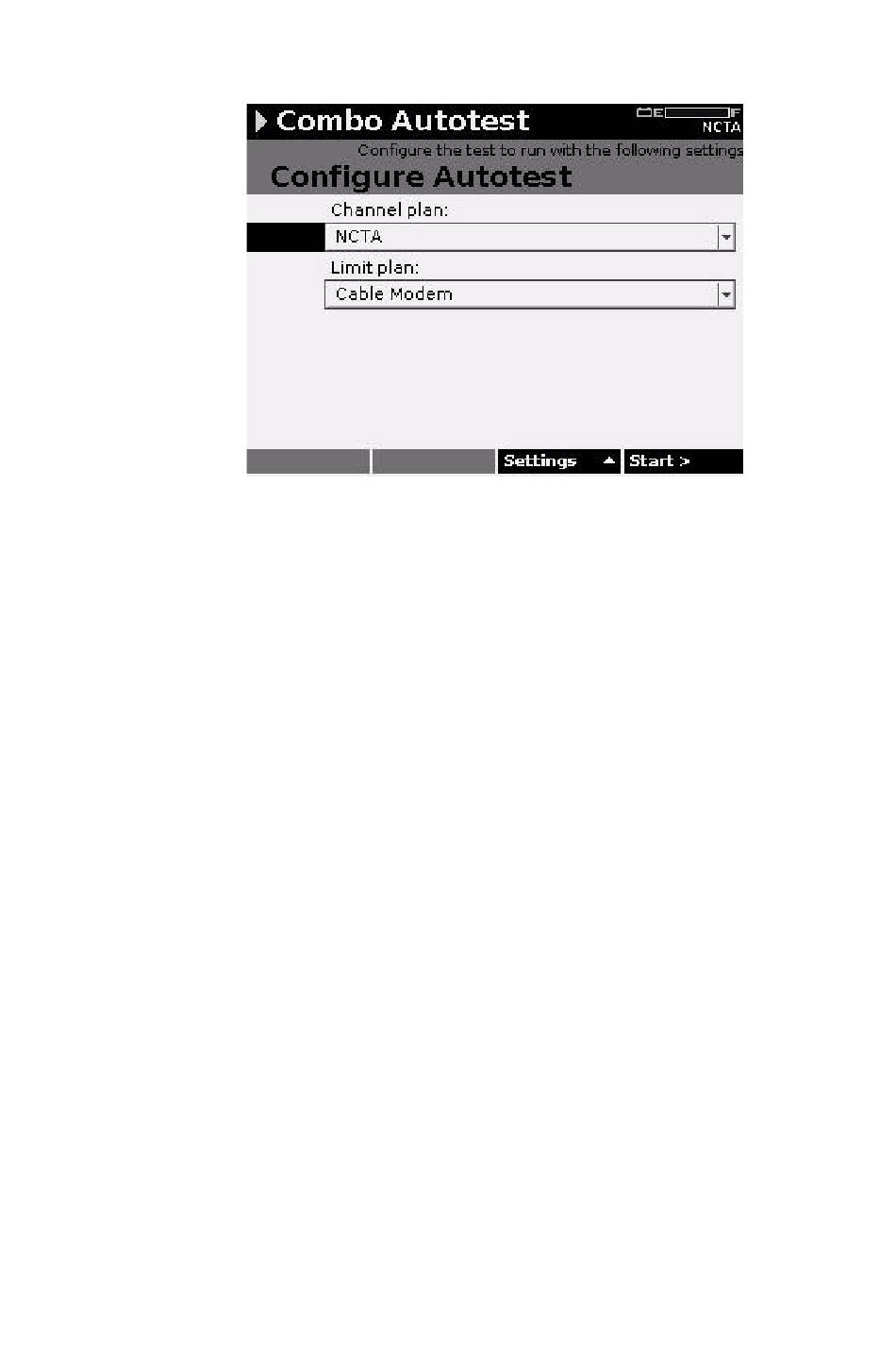

Figure 30 Combo Autotest Mode Screen
Each Combo AutoTest is based on two types of configura-
tion:
– The parameters or the selected channel plan
– The parameters of the selected limit plan
After a channel plan and a limit set has been selected,
press the Start softkey and Combo AutoTest measures
the signal performance of all assigned channels in the
Combo Test configuration.
Using Video
To access the Video Autotest mode, use the arrow keys to
highlight the Video Channels option on the AutoTests
Channels
mode menu (Figure 29 on page 42), and press Enter. The
AutoTest
first Video Channels screen you see will look similar to
Figure 31 on page 44.
DSAM Product Family Quick-Start Guide Rev. 001 43
