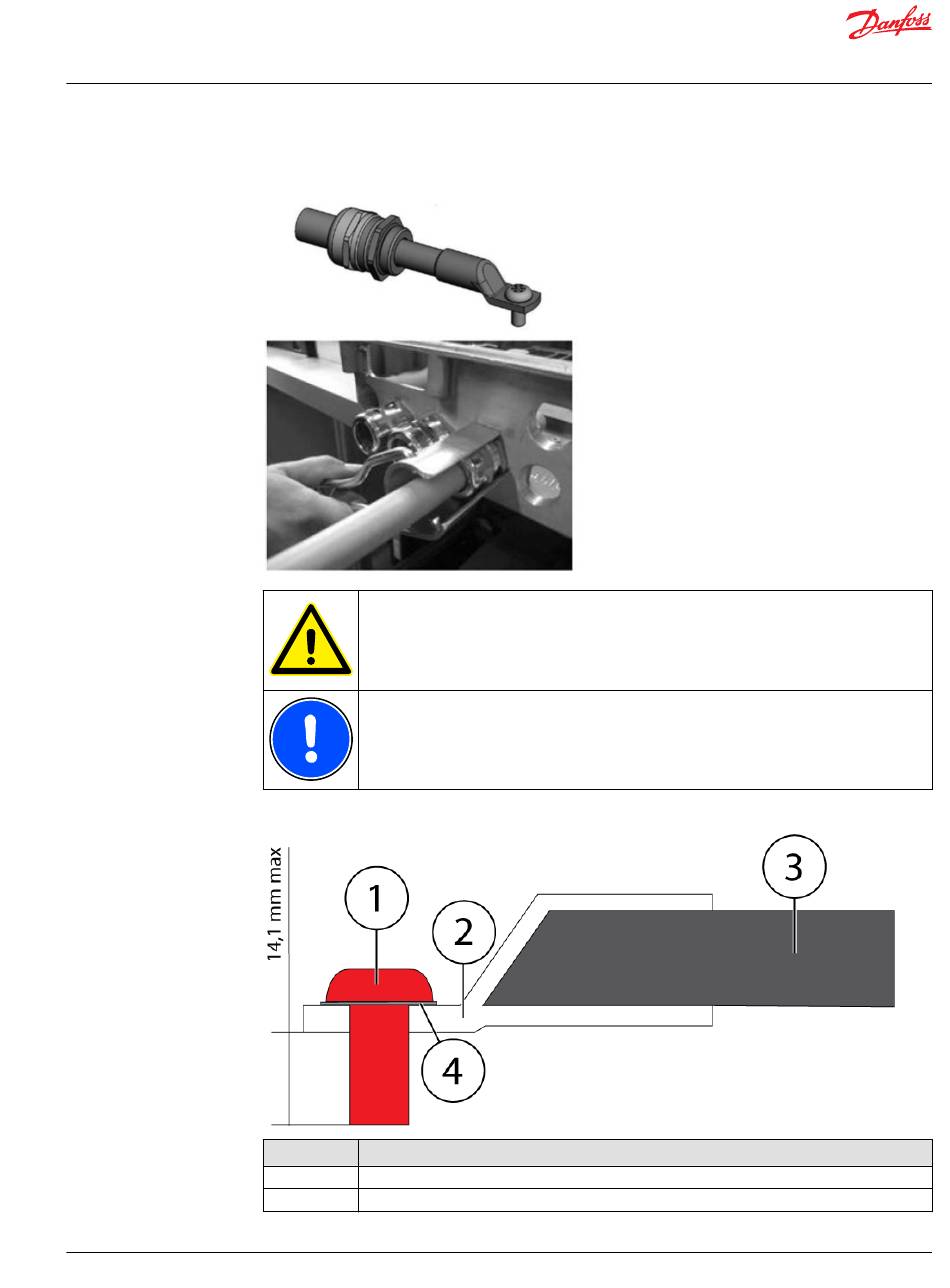

Cable harness connection with the cable lug and the cable gland (for illustration only)
Select a cable gland with a thread M25 x 1.5. Make sure that the cable lug can enter through
the M25 threaded hole, Ø 23 mm.
It is recommended to use screw size M8x16 and a washer combination of wave and regular
washers.
Maximum protrusion of the screw through washer and cable lug
Desription
1 Screw
2 Cable lug
