User Guide
EC-C1700B-420
Installation
48 | © Danfoss | June 2023
Desription
3 Cable
4 Washer
Pflitsch BlueGlobe-series cable glands and HUBER+SUHNER Radox Elastomer S, screened, single core,
automotive cables are recommended.
The information below describes how to assemble screened power cables to the electric device.
Cable gland assembly instruction can also be found from Pflitsch gland catalogue available from
www.pflitsch.de.
Correct cable gland type for the high voltage cables is Pflitsch blueglobe TRI bg XXXms tri.

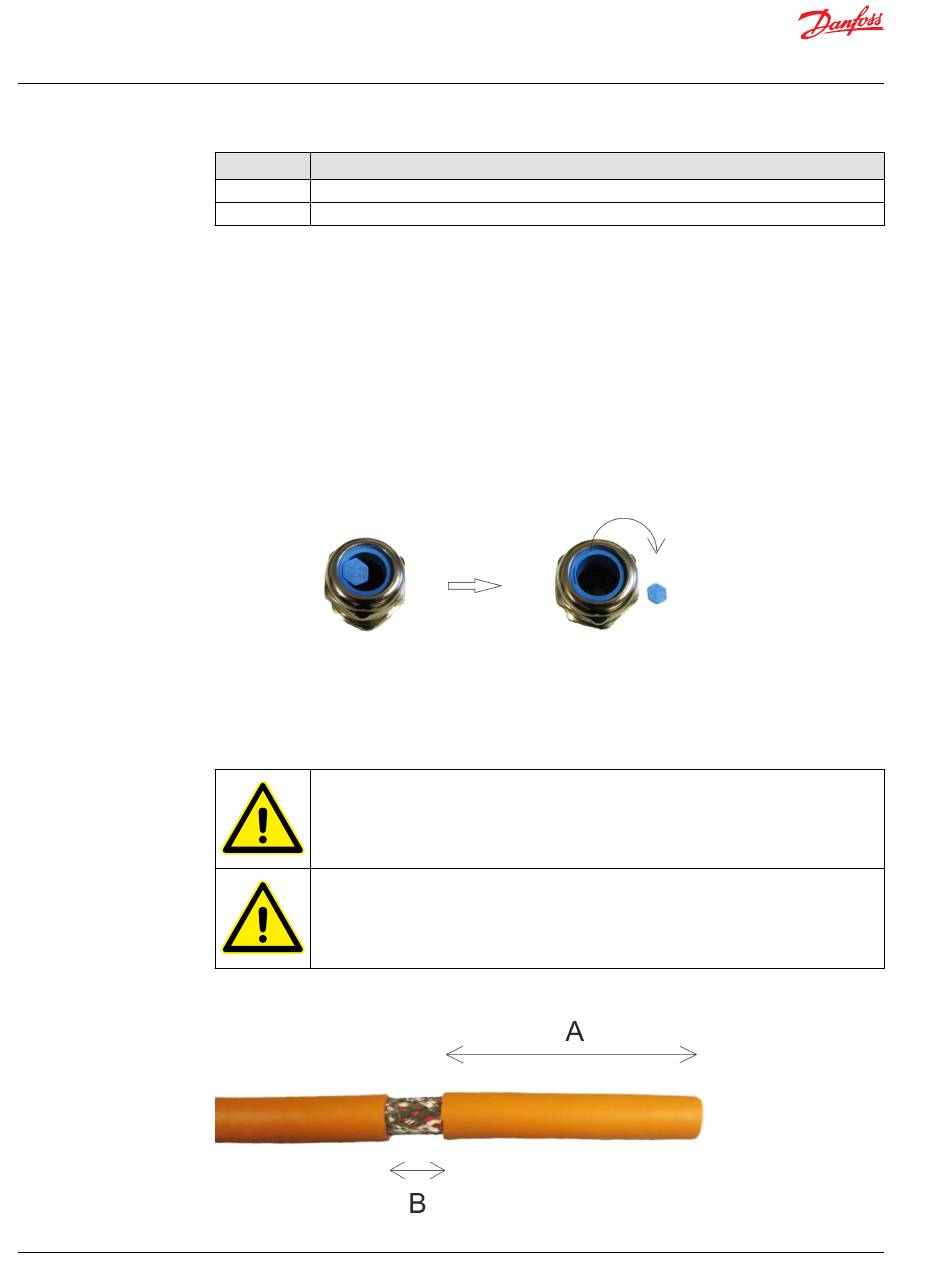

Cable lug and cable gland assembly steps
1. Remove the small hexagonal piece from the BlueGlobe-sealing insert as shown in Figure below.
BlueGlobe-sealing
2. Cut the cable sheath at the distance A from the end of the cable, see Figure below. Pull the cut part of
the sheath partly (length B is from 10 to 15 mm) off the cable as shown in the figure. Distance A depends
of the length of the used cable lug. Measure with the cable lug that is used and cut to suitable length.
Install two layers of copper tape on the cable so that the distance B is covered. Use 3M
Copper Foil Tape 1181 or similar.
Do not remove the cable sheath completely at this point and do not cut the braid screen of
the cable.
Cut length of the cable sheath
