Product overview
© Danfoss | June 2023

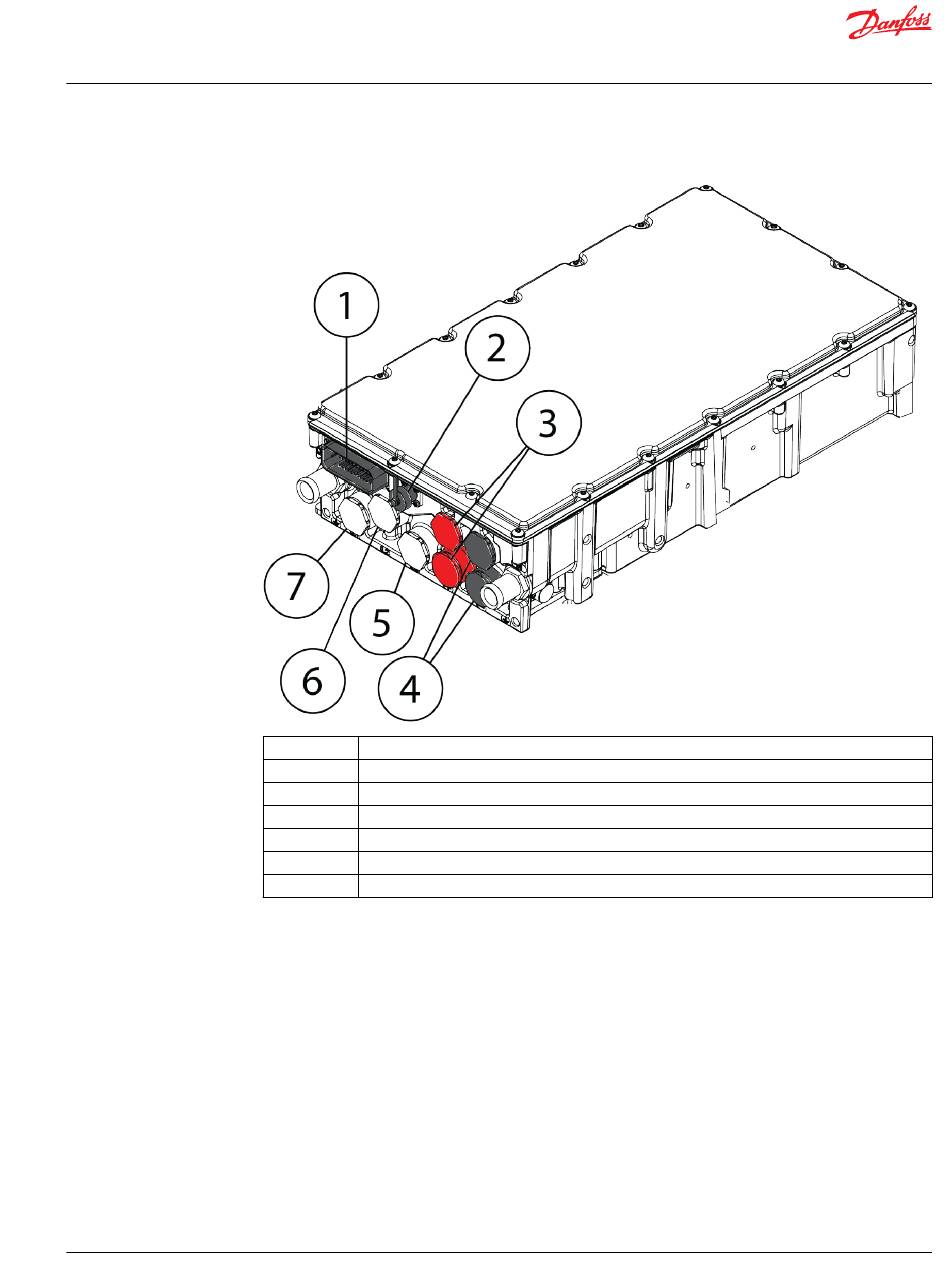

Main components
1 X1-connector (Low voltage connector for measurement data and control signals)
2 X2-connector (maintenance connector)
3 DC+
4 DC-
5 L3
6 L2
7 L1
