User Guide
EC-C1700B-420
Installation
©
Danfoss | June 2023

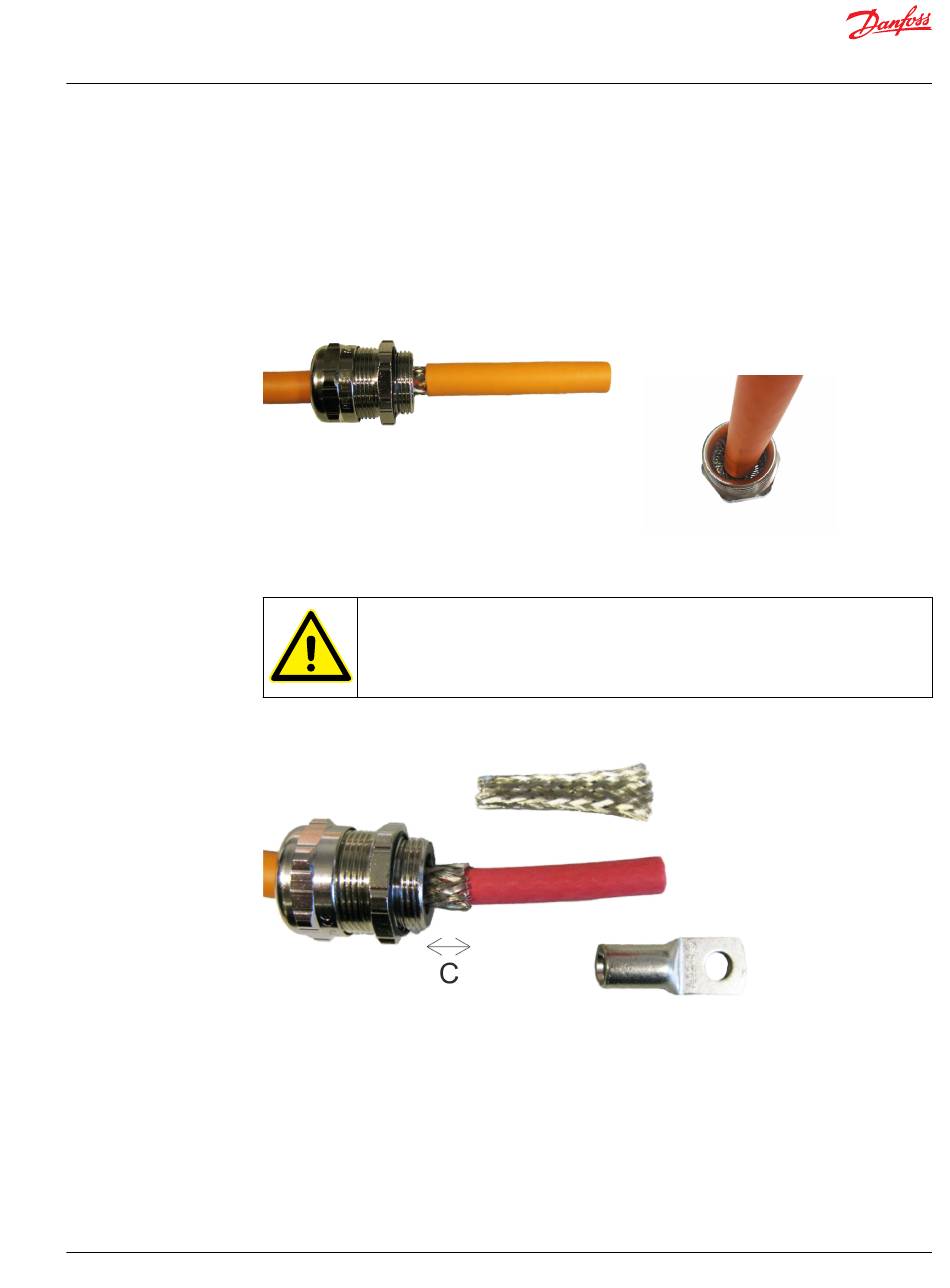

3. Insert the cable to the cable gland with slight turning motion. This helps the cable go through the
spring inside the cable gland. Push the cable gland against the sheath of the cable as shown in Figure
below.
Cable to the gland assembly
4. After the cable gland is in place remove the length A piece of the sheath and cut the braid screen
(cover) from 10 mm (distance C) from the gland bottom as shown in Figure below.
Make sure that the cable gland spring is against the cable sheath (that is protected with
copper tape) before cutting the braid screen.
Cut the braid screen
5. Cut a piece of length D of the inner sheath shown in Figure below. The length D must be equal to the
length of the cable lug body.
BC454142332191en-000101 | 49
