Panel Descriptions

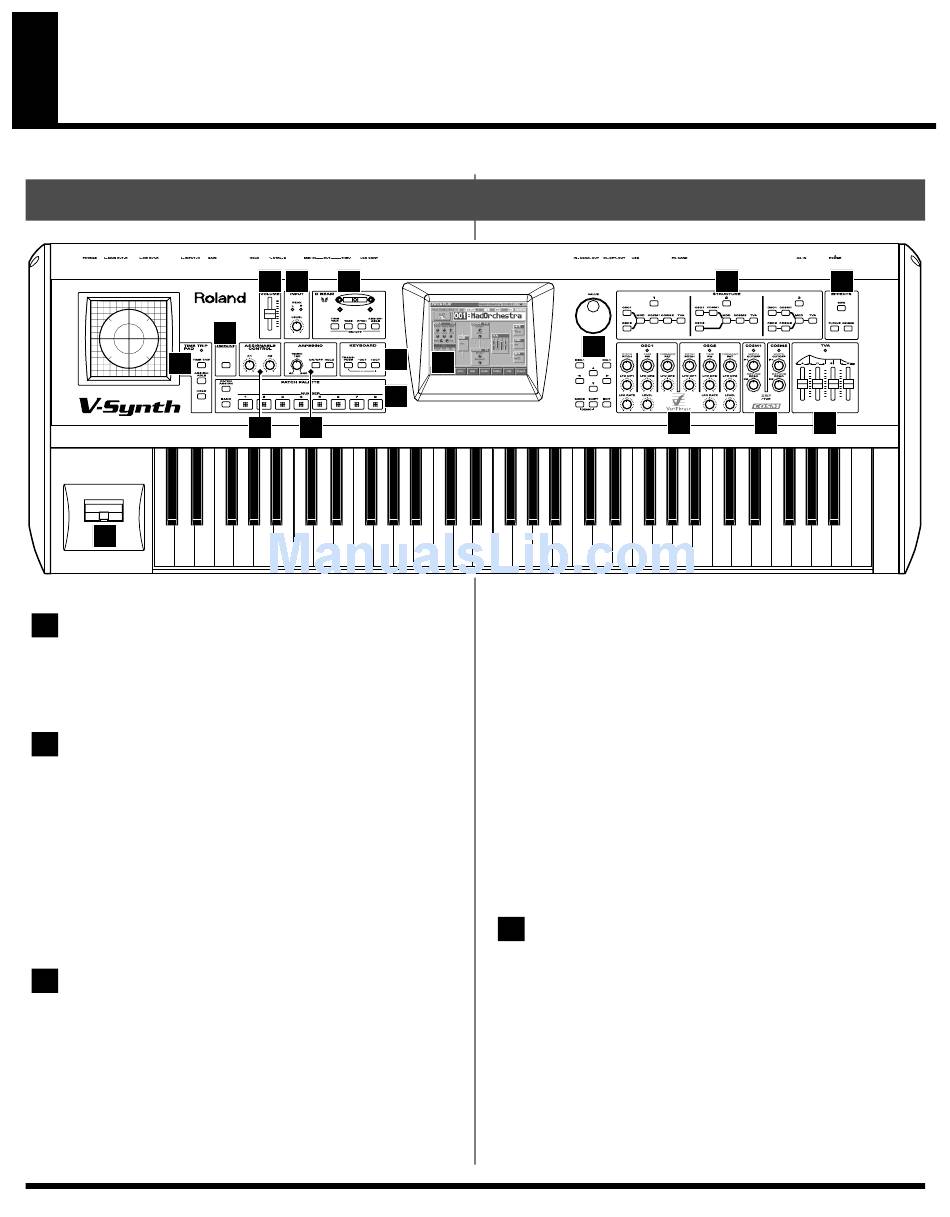

Front Panel
4
17
1
Volume Slider
Adjusts the overall volume that is output from the rear
panel MAIN OUT jacks and PHONES jack.
2
INPUT
PEAK (Peak Indicator)
This will light when the input volume is too high.
LEVEL
Adjusts the volume of the signal input through the
INPUT jacks on the rear panel.
3
D BEAM
You can apply a variety of effects to sounds simply by
moving your hand.
Indicators (L, R)
If the D Beam controller is on, these will light when you
move your hand over the controller.
10
1 2
3
5
8
9
6
7
11
10
[ON/OFF] (TIME TRIP, TIME, PITCH, ASSIGNABLE)
Switches the D Beam controller on/off. The effect to be
controlled can be selected by pressing the relevant
button.
TIME TRIP, TIME, PITCH: The D Beam will operate as the
MIDI controller you assigned in the SYSTEM Ctrl Beam
screen (p. 37).
ASSIGNABLE: The D Beam will control the parameter to
which you assigned BEAM-L or BEAM-R as its controller
in the corresponding Patch mode screen.
* For details, refer to the V-Synth owner's manual.
4
TIME TRIP PAD
By touching the pad surface with your finger you can
apply a variety of effects to the sound.
Indicator
This will light when you touch the Time Trip Pad.
[TIME TRIP]
Switches to the Time Trip effect.
12
13
14
15
16
