Roland V-160HD RCS Connection Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
¹ Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries.
¹ Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.
© 2021 Roland Corporation

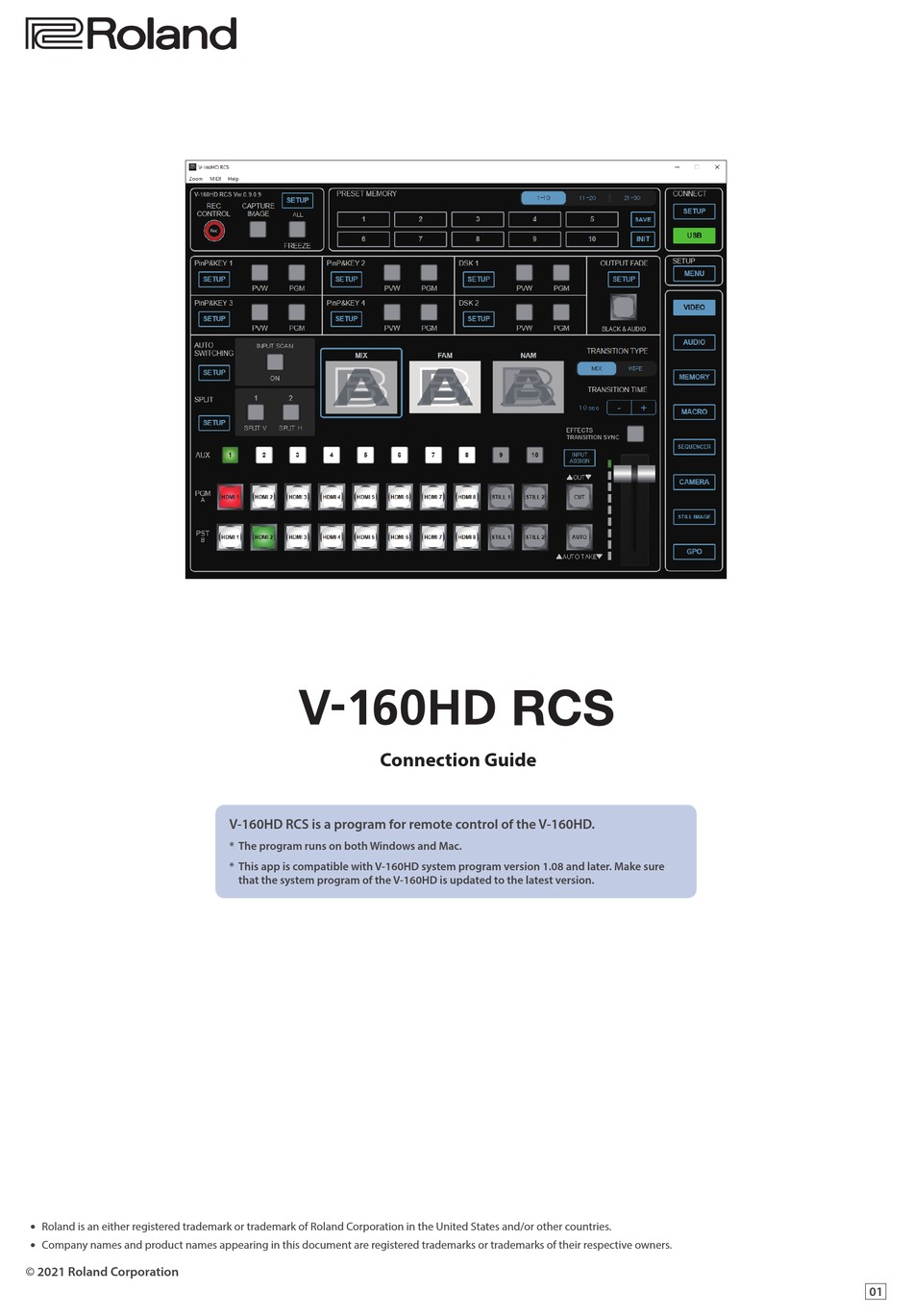

Connection Guide
V-160HD RCS is a program for remote control of the V-160HD.
* The program runs on both Windows and Mac.
* This app is compatible with V-160HD system program version 1.08 and later. Make sure
that the system program of the V-160HD is updated to the latest version.
01

Advertisement

loading
Need help?

Need help?

Do you have a question about the V-160HD RCS and is the answer not in the manual?

Questions and answers

Related Manuals for Roland V-160HD RCS

Summary of Contents for Roland V-160HD RCS

  • Page 1 V-160HD is updated to the latest version. ¹ Roland is an either registered trademark or trademark of Roland Corporation in the United States and/or other countries. ¹ Company names and product names appearing in this document are registered trademarks or trademarks of their respective owners.

  • Page 2: Usb Connection

    USB A port USB cable (USB Type-C to A) Power-on the V-160HD. Computer Turn on the computer and launch V-160HD RCS. Click the CONNECT [SETUP] button. Select the “USB.” When the status icon changes to “USB, ” the device is connected.

  • Page 3: Connecting Via Lan Cable

    The LAN INFORMATION screen appears. Set a network password (four characters). Input the password that’s set here when accessing the V-160HD from V-160HD RCS. Input the password using the [VALUE] knob. Use the [VALUE] knob to select “SAVE,” and then press the [VALUE] knob.
  • Page 4 Connecting via LAN Cable Select “Use the following IP address,” set the values for Settings the V-160HD RCS app the IP address and subnet mask, then click the [OK] button. Launch the V-160HD RCS app. Click the CONNECT [SETUP] button.
  • Page 5 * See the Owner’s Manual of the wireless LAN master device for how to use that device. Launch the V-160HD RCS app. * The wireless LAN (Wi-Fi) connection speed and connectivity may be unstable in certain network environments.
  • Page 6 This shows you how to use an RS-232 cable to directly connect your computer to the V-160HD. V-160HD Computer Using an RS-232 cable, connect the RS-232 connector on Launch the V-160HD RCS app. the V-160HD to the computer. Click the CONNECT [SETUP] button. Communication standards...
  • Page 7 Using a MIDI Controller for Operation You can connect a MIDI controller to your computer, and use the MIDI controller to control V-160HD RCS. You can use the MIDI controller to directly control HDMI input and music file volume that otherwise would be controlled via a menu.
  • Page 8 Here’s how to assign (map) the MIDI controller to the buttons, knobs, and faders that are shown in the AUDIO MIXER screen. * V-160HD RCS receives the following MIDI messages regardless of the MIDI controller’s channel settings. AUDIO MIXER screen When you click the [AUDIO] button, the AUDIO MIXER screen appears.
  • Page 9 Using a Game Controller to Control PTZ Camera You can connect a commercially available game controller to your computer, and use the game controller to control PTZ camera. CAMERA CONTROL screen When you click the [CAMERA] button, the CAMERA CONTROL screen appears. Selects the camera to be Adjusts the zoom operated.
