Panel Descriptions
[DEC/-], [INC/+]
This is used to modify values. If you keep on holding
down one button while pressing the other, the value
change accelerates. If you press one of these buttons
while holding down [SHIFT], the value will change in
bigger increments.
[
], [
], [
], [
Moves the cursor location up/down/left/right.
[MODE]
Opens the Mode Menu window.
[SHIFT]
When used together with the VALUE dial or [DEC/-]
[INC/+], this button causes the value to change in larger
steps.
[EXIT]
Use this button to return to the top screen of Patch mode
(p. 14), or to close an open window. In some screens, this
causes the currently executing function to be aborted.
12
STRUCTURE
This is not used on the VC-2.

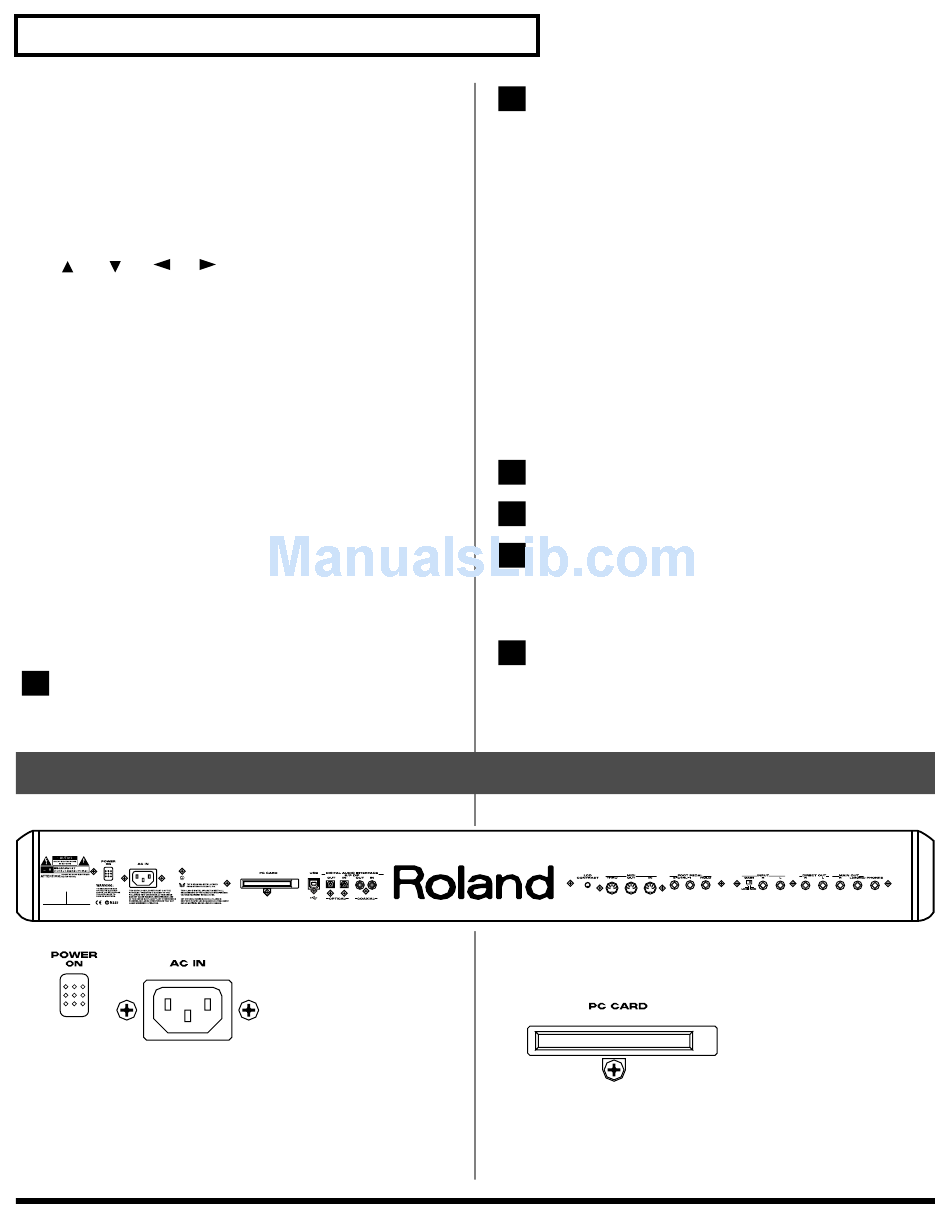

Rear Panel
fig.00-02
fig.00-03
POWER Switch
Press to turn the power on/off.
12
] (Cursor Buttons)
EFFECTS
13
Here you can switch the onboard effects (multi-effects,
chorus, reverb) on/off. When an effect is on, the indicator
for its button will light.
[MFX]
Switches multi-effects on and off.
[CHORUS]
Switches chorus on and off.
[REVERB]
Switches reverb on and off.
14
OSC1, OSC2
COSM1, COSM2
15
16
TVA
This is not used on the VC-2.
Pitch Bend/Modulation Lever
17
Use this to modify the pitch, to apply vibrato, or to
control some other function you've assigned.
AC Inlet
Connect the included power cord to this inlet.
fig.00-04
PC CARD Slot
Insert the VC-2 card into this slot.
