Panel mounting
1. Prepare the installation opening in the panel (Fig. 31).
2. Slide the housing through the front of the panel cutout.
3. Screw the fasteners to the wall-mount housing.
4. Screw the threaded rods into the brackets and tighten until the housing is firmly
fixed to the panel wall. Tighten the counter nuts. No further support is necessary.

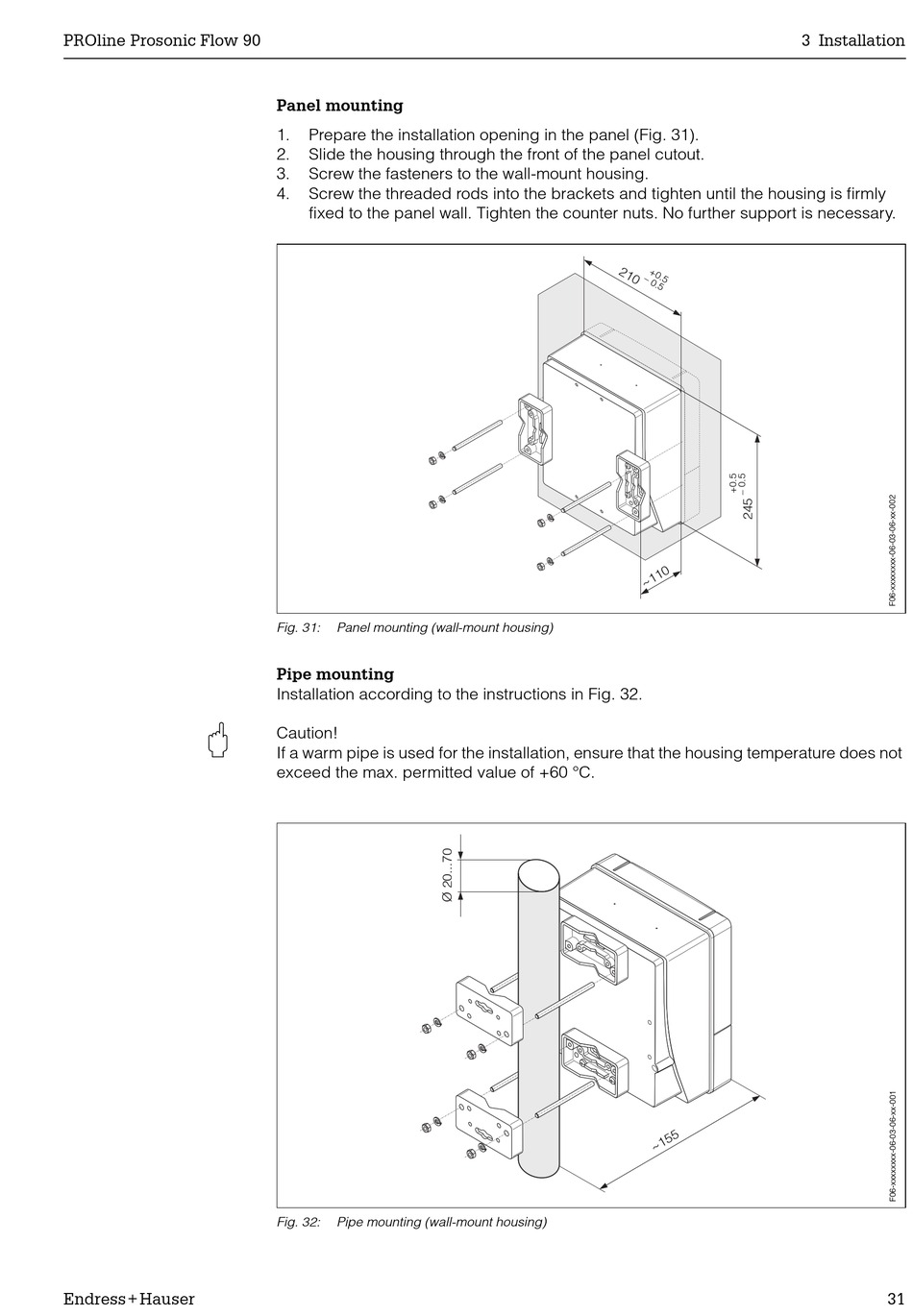

Fig. 31: Panel mounting (wall-mount housing)
Pipe mounting
Installation according to the instructions in Fig. 32.
Caution!
If a warm pipe is used for the installation, ensure that the housing temperature does not
exceed the max. permitted value of +60 °C.
Fig. 32: Pipe mounting (wall-mount housing)
