3 Installation
26
3.3.6
Term explanations for Prosonic Flow W
(Insertion version)

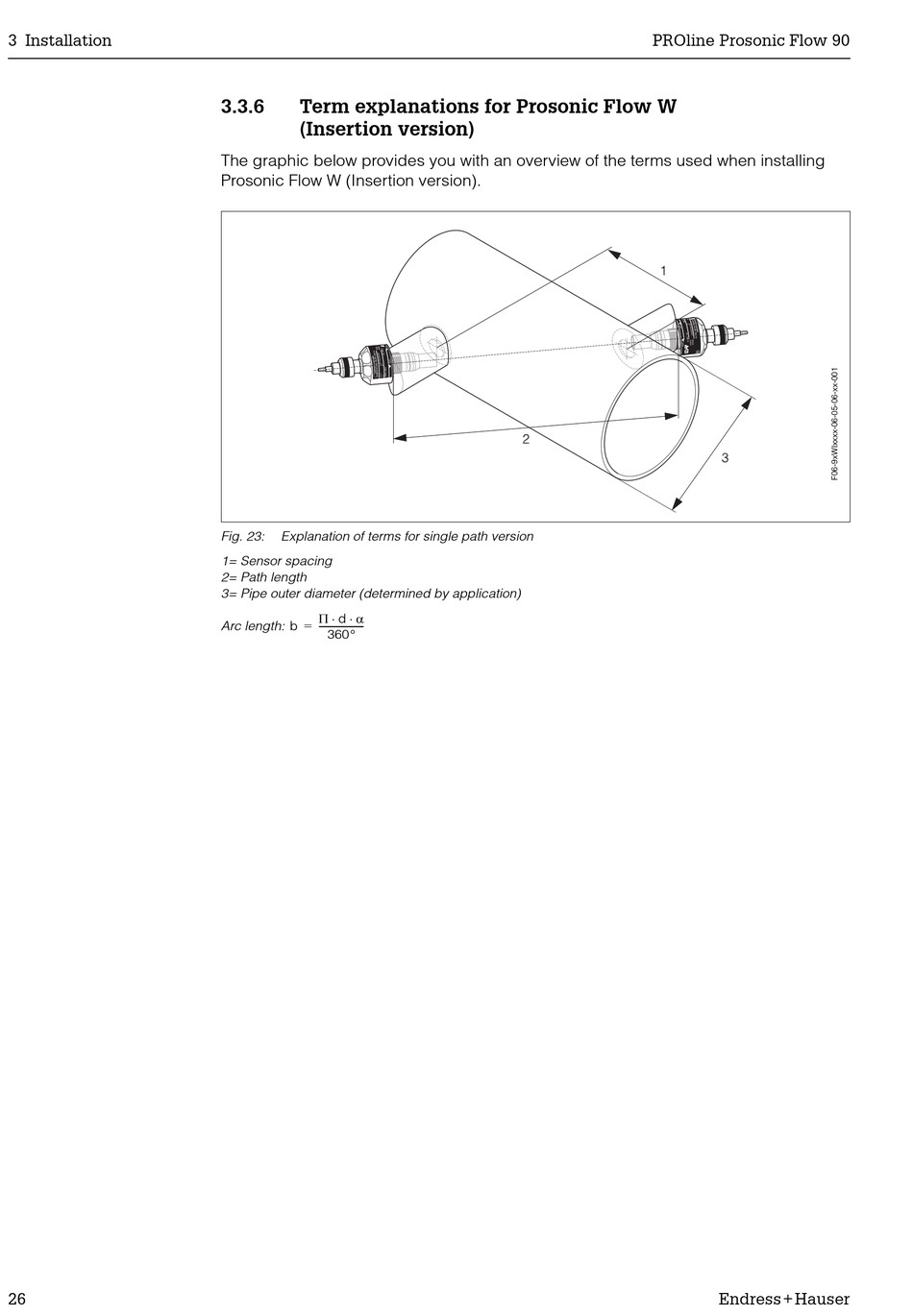

The graphic below provides you with an overview of the terms used when installing
Prosonic Flow W (Insertion version).
Fig. 23:
Explanation of terms for single path version
1= Sensor spacing
2= Path length
3= Pipe outer diameter (determined by application)
! d ,
b
b
-------------------- -
=
Arc length: b
360 G
PROline Prosonic Flow 90
Endress+Hauser
