Operation

5.1

Display and operating elements

The local display enables you to read all important parameters directly at the measuring
point and configure the device using the "Quick Setup" or the function matrix.
The display consists of two lines; this is where measured values and/or status variables
(direction of flow, bar graph, etc.) are displayed. You can change the assignment of dis-
play lines to different variables to suit your needs and preferences ( o see the "Descrip-
tion of Device Functions" manual).
1

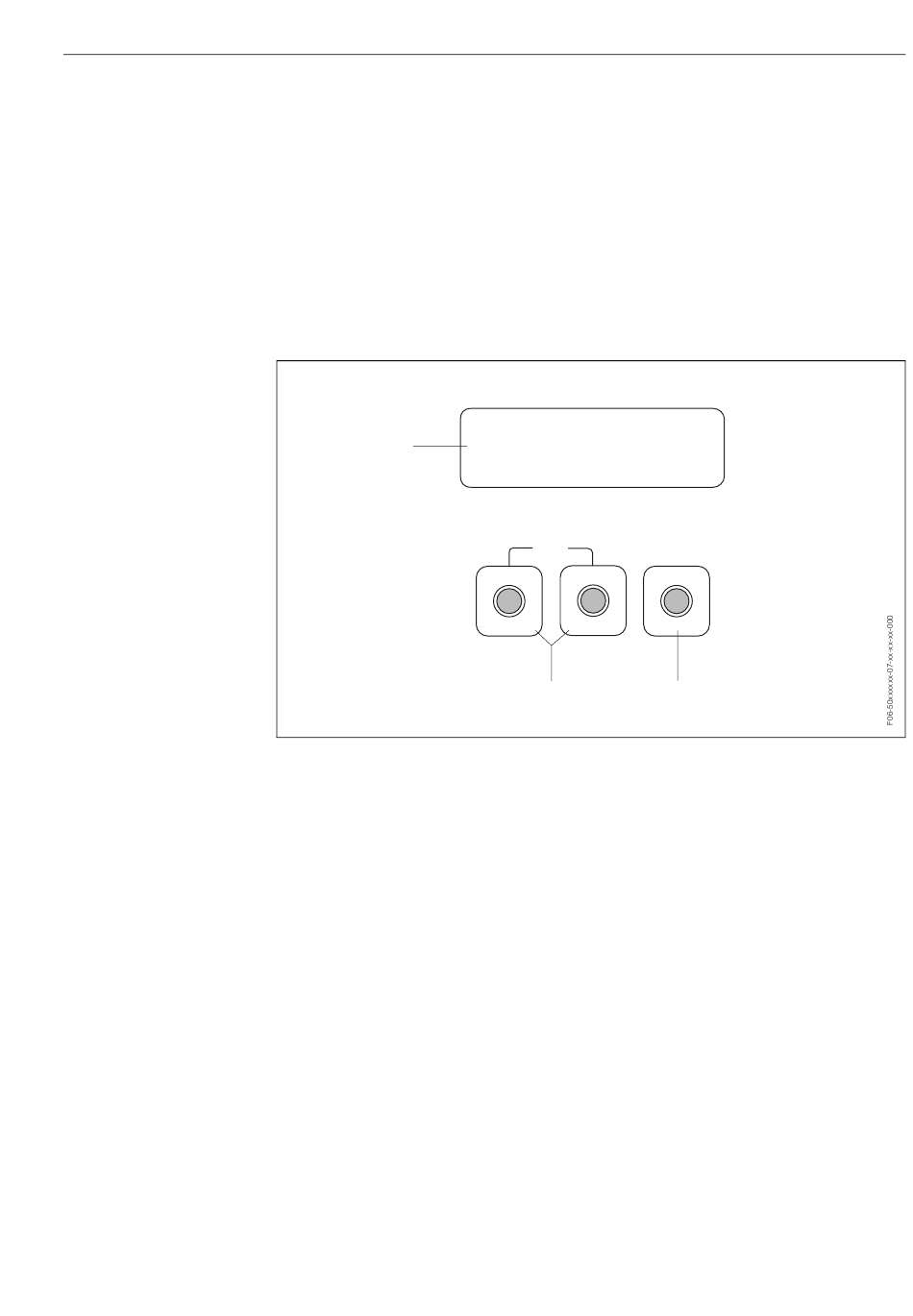

Fig. 41: Display and operating elements
Liquid crystal display (1)
The illuminated, two-line liquid crystal display shows measured values, dialog texts, fault messages and
notice messages.The display as it appears during standard measuring mode is known as the HOME position
(operating mode).
Top line: Shows main measured values, e.g. volume flow in [ml/min] or in [%].
Bottom line: Shows additional measured variables and status variables, e.g. totalizer reading in [m
bar graph representation, tag name
Plus/minus keys (2)
– Enter numerical values, select parameters
– Select different function groups within the function matrix

Press the +/ keys simultaneously to trigger the following functions:
– Exit of the function matrix step by step
– Press and hold down the +/
– Cancel data entry
Enter key (3)
o
– HOME position Entry to the function matrix
– Save the numerical values you input or settings you change
+48.25 ml/min
+3702.6 m
Esc
+
-
2
o
HOME position

keys for more than 3 seconds
3
E
3
o
Return directly to HOME position
