10. Weld in both sensor holders. After welding, check the distance between the drill

holes once again and measure the path length.

Note!

The path length is given as a measurement in the Quick Setup menu (function

"PATH LENGTH"). If you determine deviations to the path length actually measured,

note these down and enter them as a correction factor when commissioning the

measuring point.

11. Then screw the sensors into the sensor holders by hand. If you use a tool, the max-

imum torque permissible is 30 Nm.

12. Then insert the sensor cable plug into the intended opening and manually tighten

the plug to the stop.

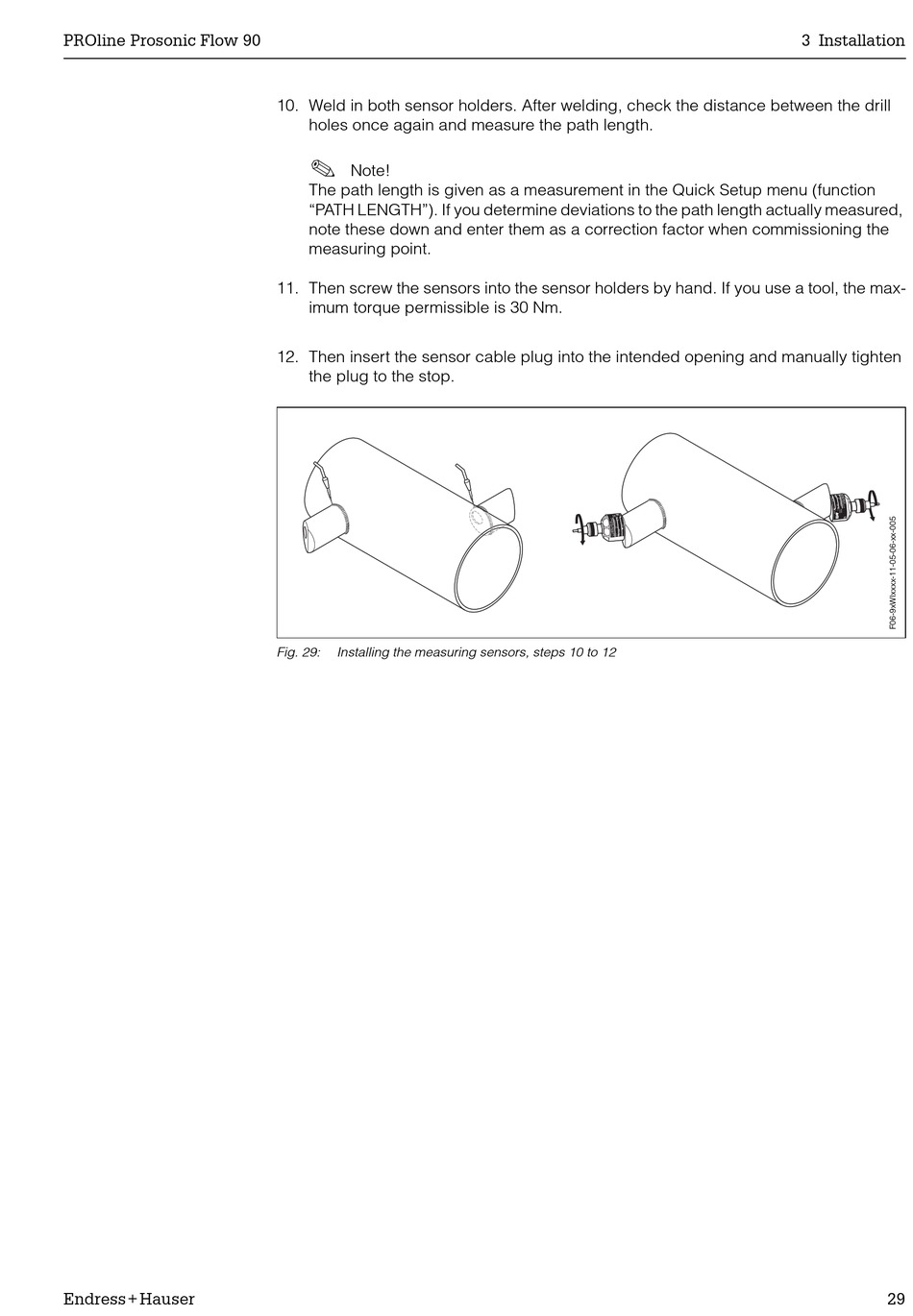

Fig. 29:

Installing the measuring sensors, steps 10 to 12

3 Installation
