PROline Prosonic Flow 90
Endress+Hauser

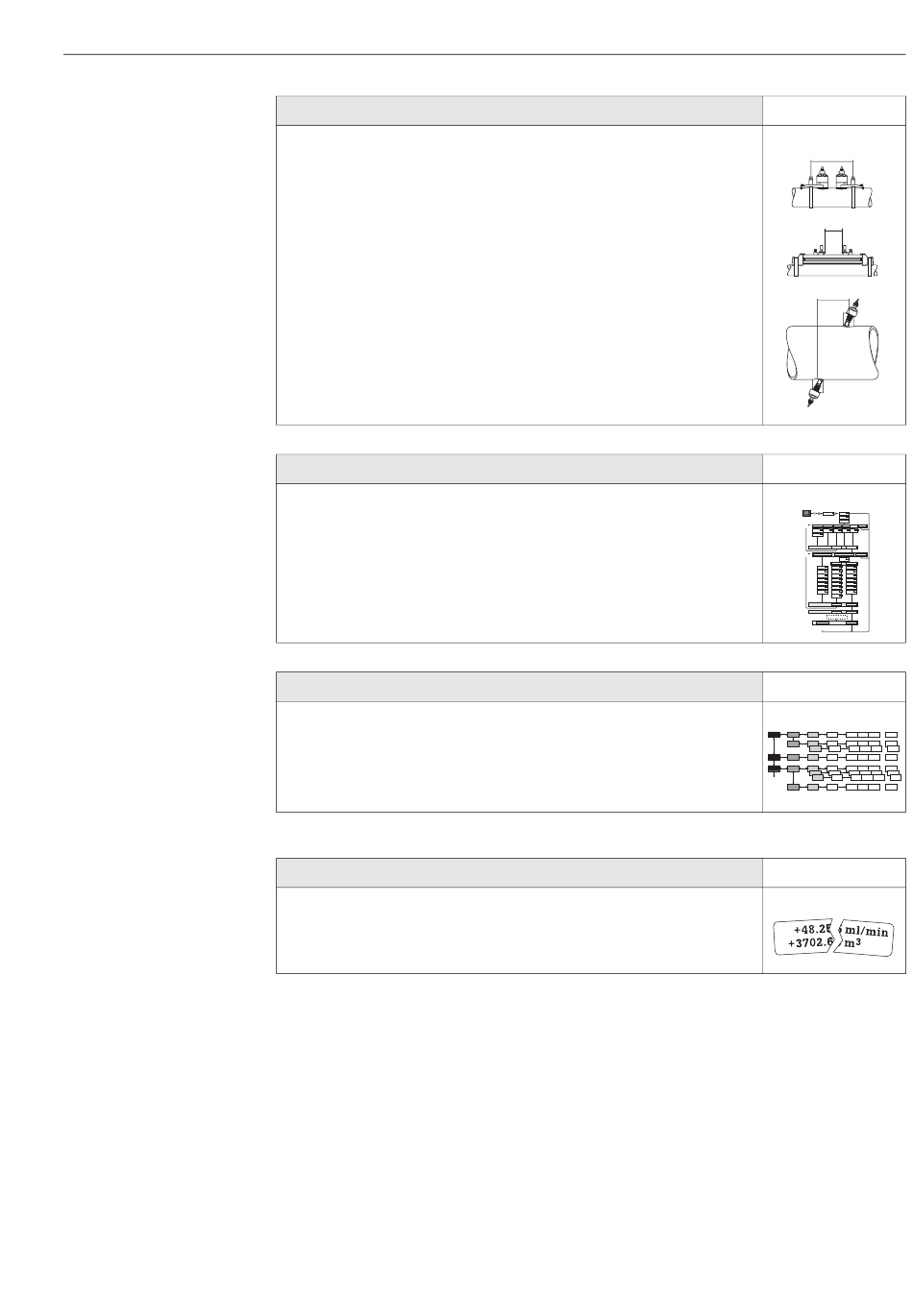

"SENSOR INSTALLATION" Quick Setup
Use this "Quick Setup" to determine the data required for sensor installation
such as sensor spacing (1), cord length, pipe materials, sound velocity in fluids,
etc.
– The system provides you with the sensor distance for the W/P/U "Clamp On"
versions as distance data. For the W and P sensors, you also receive the data
in the form of a letter for sensor 1 and in the form of a number for sensor 2. You
can thus easily position the sensors with the aid of the mounting rail.
– With the insertion version, you receive the sensor spacing as distance data.
Installation of the sensor/transmitter connecting cable o Page 33
Commissioning with "QUICK SETUP"
You can commission your measuring device quickly and easily using the special
"Quick Setup" menu. It allows you to configure important basic functions using
the local display, for example display language, measured variables, units of
measure, type of signal, etc.
If necessary, the following adjustments or configurations can be carried out sep-
arately:
– Zero point adjustment
– Configuration of the current outputs (active/passive)
Customer-specific configuration
Complex measurement tasks require the configuration of additional functions
which you can individually select, set and adapt to your process conditions
using the function matrix.
All functions are described in detail, as is the function matrix itself, in the
"Description of Device Functions" manual, which is a separate part of these
Operating Instructions.
Always start trouble-shooting with the checklist on Page 73, if faults occur after
startup or during operation. This takes you directly to the cause of the problem
and the appropriate remedial measures.
M
M
M
M
Trouble-shooting
Brief operating instructions
Page 60
1
1
1
Page 61
ENDRESS+HAUSER
+ + Quick Setup B E Setup 1002
- + E + Inbetriebn.
E
ESC
2000
Sprache
HOME-POSITION
System-
einheiten
➀
Auswahl Temperatur Viskosität Länge
Systemeinheiten Volumenfluss Geschw. Beenden
Einheit 0402 Einheit 0422 Einheit 0423 Einheit 0424 0425
Einheit
Volumenfluss Temperatur Viskosität Länge Geschw.
Einheit 3001
Summenzähler
➁
Andere Einheit konfigurieren? JA NEIN
Auswahl ➂
Stromausgang n Freq.-/ Impulsausgang n Beenden
Ausgangstyp
4200
Betriebsart
Frequenz Impuls
Zuord. 4000 Zuord. 4201 Zuord. 4221
Stromausgang Freq.-ausgang Imp.-ausgang
Strom- 4001 End- 4203 Impuls- 4222
bereich frequenz wertigkeit
Wert 4002 Wert 4204 Impuls- 4223
0/4 mA f min breite
Wert 4003 Wert 4205 Max. 4224
20 mA f max Imp.-frequenz
Mess- 4004 Mess- 4206 Mess- 4225
modus modus modus
Zeit- 4005 Ausgangs- 4207 Ausgangs- 4226
konstante signal signal
Fehler- 4006 Zeit- 4208 Fehler- 4227
verhalten konstante verhalten
Fehler- 4209
verhalten
➃ Anderen Ausgang konfigurieren? JA NEIN
Autom. Konfiguration Anzeige? JA NEIN
Automatische Parametrierung
der Anzeige
Abfrage: Anderes
Puls. Durchfluss NEIN
Quick Setup
Ausführung des
Quick Setup
Puls. Durchfluss
Page 42 ff.
A AAA 000 0000 0001 0002
ACA 040 0400 0401 0402
042 0420 0421 0422
B BAA 200 2000 2001 2002
C CAA 202 2020 2021 2022
204 2040 2041 2042
206 2060 2061 2062
D, E, ...
220 2200 2201 2202
CBA
Page 73 ff.
0003 ... 0009
0403 ... 0409
0423 0429
...
2003 ... 2009
2023 ... 2029
2043 ... 2049
2063 ... 2069
2203 2209
...
3
