PROline Prosonic Flow 90
Command No.
HART command / Access type
Universal Commands
0 Read unique device identifier
Access type = read
1 Read primary process varia-
ble
Access type = read
2 Read the primary process
variable as current in mA and
percentage of the set meas-
uring range
Access type = read
Endress+Hauser

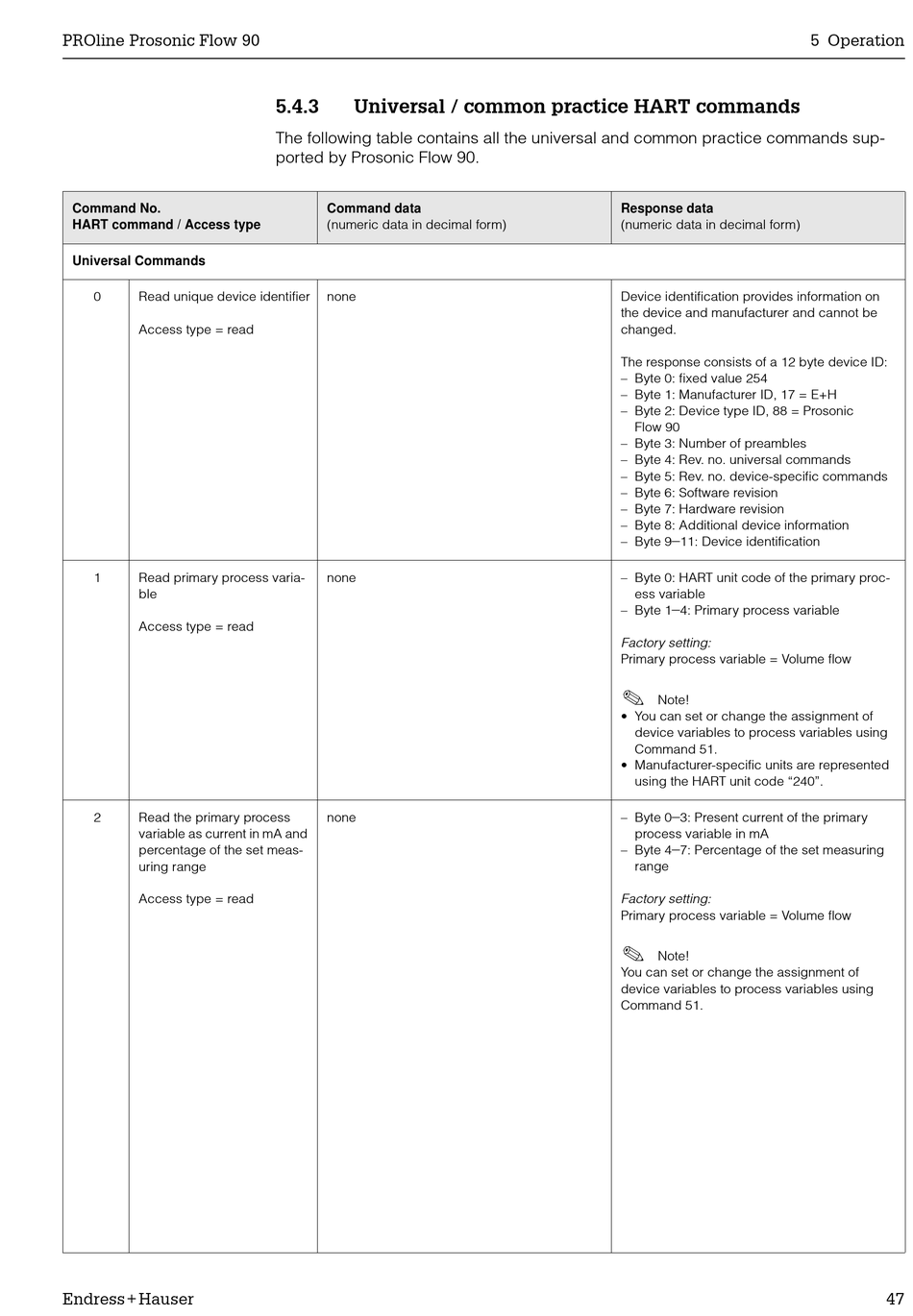

5.4.3

Universal / common practice HART commands

The following table contains all the universal and common practice commands sup-
ported by Prosonic Flow 90.
Command data
(numeric data in decimal form)
none
none
none
Response data
(numeric data in decimal form)
Device identification provides information on
the device and manufacturer and cannot be
changed.
The response consists of a 12 byte device ID:
– Byte 0: fixed value 254
– Byte 1: Manufacturer ID, 17 = E+H
– Byte 2: Device type ID, 88 = Prosonic
Flow 90
– Byte 3: Number of preambles
– Byte 4: Rev. no. universal commands
– Byte 5: Rev. no. device-specific commands
– Byte 6: Software revision
– Byte 7: Hardware revision
– Byte 8: Additional device information
–
– Byte 9 11: Device identification
– Byte 0: HART unit code of the primary proc-
ess variable
–
– Byte 1 4: Primary process variable
Factory setting:
Primary process variable = Volume flow
!
Note!
• You can set or change the assignment of
device variables to process variables using
Command 51.
• Manufacturer-specific units are represented
using the HART unit code "240".
–
– Byte 0 3: Present current of the primary
process variable in mA
–
– Byte 4 7: Percentage of the set measuring
range
Factory setting:
Primary process variable = Volume flow
!
Note!
You can set or change the assignment of
device variables to process variables using
Command 51.
5 Operation
47
