Using the Setup Wizard

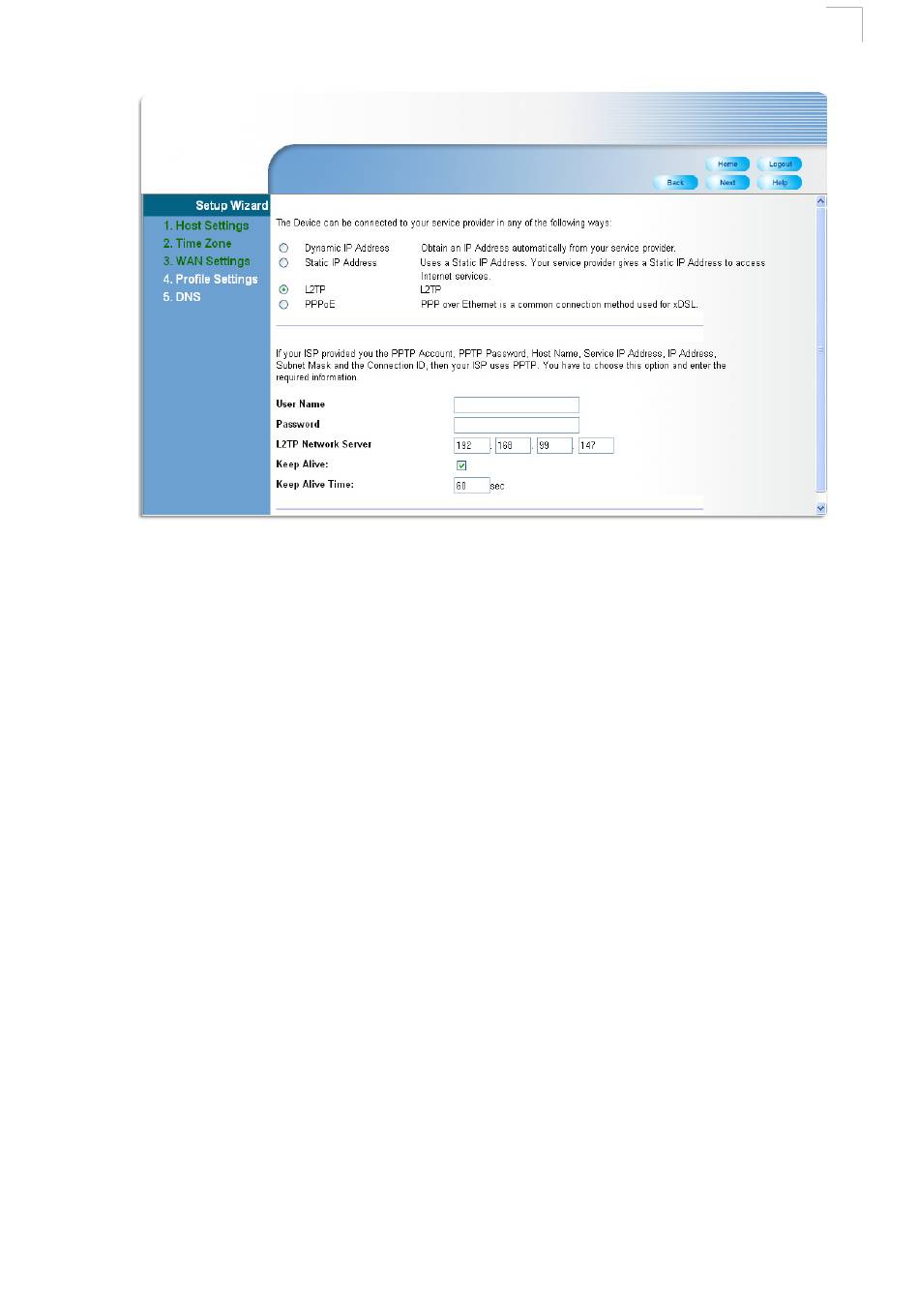

Figure 3-7 WAN Type - L2TP

For the L2TP option, you are prompted for the following information (specified
by the service provider):
User Name – Enter your user name for connecting to the L2TP service, as
supplied by the service provider. (Range: 1-32 characters)
Password – Specify the password for your connection, as supplied by the
service provider. (Default: No password)
L2TP Network Server – The IP address of the L2TP server, as specified by the
service provider.
Keep Alive – This option enables the unit to check periodically that the L2TP
connection is still operating. If the connection is found to be lost, the unit
automatically attempts to reconnect to the service provider. (Default: Enabled)
Keep Alive Time – The time period the unit waits before checking that the
L2TP connection is still operating. This parameter only applies when Keep Alive
is enabled. (Default: 60 seconds; Range: 10-180 seconds)
3-7
