Summary of Contents for Edge-Core RG230

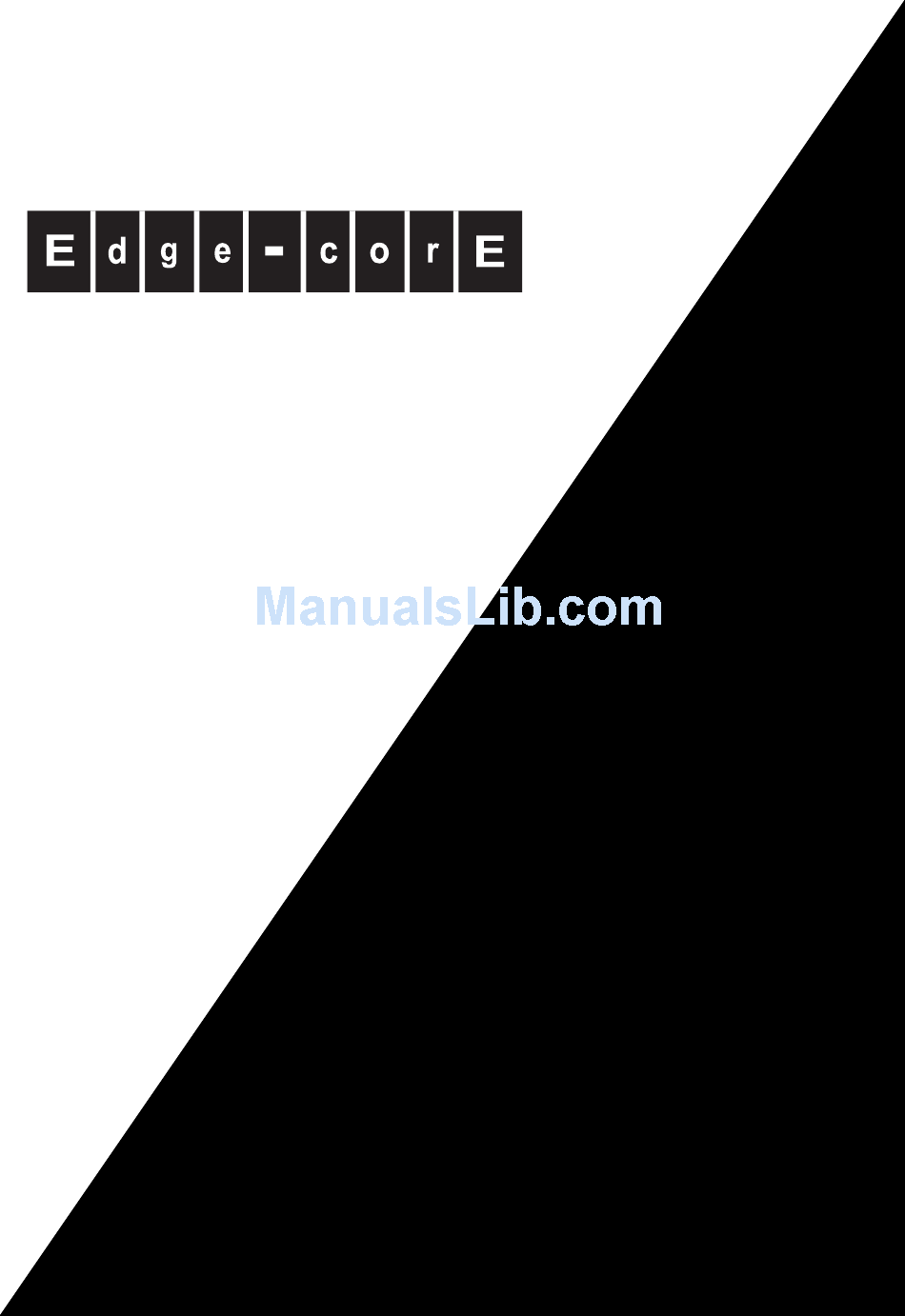

- Page 1 Powered by Accton RG230 User Guide Indoor WiMAX Residential Gateway www.edge-core.com...
- Page 3 User Guide RG230 Indoor IEEE 802.16e-2005 Mobile WiMAX Gateway, with 2.3/2.5/3.5 GHz Frequency Band Support, Four LAN (RJ-45) Ports, Two VoIP (RJ-11) Ports, and Optional 802.11g Wi-Fi...
- Page 4 RG230 E032008-CS-R01 1*************...
-
Page 5: Federal Communication Commission Interference Statement
Compliances Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 6 EC Conformance Declaration Marking by the above symbol indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the following conformance standards: • EN 60950-1 (IEC 60950-1) - Product Safety • EN 301 489-1, EN 301 489-4 - EMC requirements for radio equipment •...
-
Page 7: About This Guide
About This Guide Purpose This guide details the hardware features of the WiMAX Residential Gateway including its physical and performance-related characteristics, and how to install the device and use its configuration software. Audience This guide is for PC users with a working knowledge of computers. You should be familiar with basic networking concepts. -
Page 9: Table Of Contents
10BASE-T/100BASE-TX LAN Ports VoIP Phone Ports Power Adapter Socket Backup Battery Charger (Optional) SIM Card Slot RG230 Wi-Fi Option Chapter 2: Installing the RG230 Package Checklist Installation Overview Select a Location Cable Connections Chapter 3: Initial Configuration Accessing the Web Management Interface... - Page 10 Table of Contents Chapter 5: Gateway Configuration WAN Settings Dynamic IP Address Static IP Settings L2TP Settings PPPoE Settings LAN Settings DHCP Client List Virtual Server Port Mapping 5-10 5-11 Firewall 5-11 Firewall Options 5-12 Client Filtering 5-13 MAC Control 5-14 Route 5-15...
- Page 11 Table of Contents WPA/WPA2 PSK Security MAC Authentication Appendix A: Troubleshooting Diagnosing LED Indicators Cannot Connect to the Internet Cannot Access Web Management Forgot or Lost the Password Resetting the Unit Appendix B: Specifications Physical Specifications WiMAX Specifications VoIP Specifications Wi-Fi Specifications Compliances Appendix C: Cables and Pinouts...
- Page 12 Table of Contents viii...
- Page 13 Tables Table 1-1 RG230 Models Table 1-2 Power Status LED Table 1-3 Wi-Fi Status LED Table 1-4 WiMAX Signal Status LEDs Table 1-5 LAN Port Status LEDs Table 4-1 System Settings Table 5-1 Gateway Configuration Table 6-1 WiMAX Settings Table 8-1 Wi-Fi Settings Table A-1 Troubleshooting Chart Table C-1.
- Page 14 Base of the RG230 Figure 1-3 Back of the RG230 Figure 1-4 RG230 LED Indicators Figure 1-5 Front of the RG230 Figure 1-6 3.5 GHz RG230 with Wi-Fi Figure 2-1 CPE Connections Figure 3-1 Login Page Figure 3-2 Home Page Figure 3-3...
- Page 15 Figures Figure 5-12 Firewall Setting 5-11 Figure 5-13 Firewall Options 5-12 Figure 5-14 Client Filtering Settings 5-13 Figure 5-15 MAC Control 5-14 Figure 5-16 Routing Table 5-15 Figure 5-17 UPnP Setting 5-16 Figure 6-1 WiMAX Profile Configuration Figure 6-2 WiMAX Profile Authentication - EAP-TTLS Figure 6-3 WiMAX Profile Authentication - EAP-TLS Figure 6-4...
- Page 16 Figures...
-
Page 17: Chapter 1: Introduction
DSL or cable modems. The RG230 is a plug-and-play indoor unit (IDU). There are two available models for each of the 2.3, 2.5, and 3.5 GHz WiMAX frequency bands. Which model you use will depend on the frequency band of your service provider’s WiMAX service. -
Page 18: Rg230 Hardware Description
Introduction RG230 Hardware Description The front of the RG230 provides an array of system status indicators. The back includes four LAN ports for 10/100 Mbps Ethernet connections, two RJ-11 Voice over IP (VoIP) phone ports, and a DC power jack. -
Page 19: Scan Button
3 seconds to perform a full frequency scan of all channels. Reset Button This button is used to reset the RG230 or restore the factory default configuration. If you press the button for less than 1 second, the unit will perform a hardware reset. If... -
Page 20: Power Status Indicator Led
Introduction Power Status Indicator LED The RG230 includes a Power LED indicator that simplifies installation and WiMAX network troubleshooting. The LED, which is located on the front panel, is described in the following table. Power Status LED Power WiFi Wi-Fi Status LED... -
Page 21: Wi-Fi Status Indicator Led
RG230 Hardware Description Wi-Fi Status Indicator LED The 3.5 GHz RG230 model, which supports Wi-Fi operation, includes a Wi-Fi LED indicator that displays the Wi-FI network status. The LED, which is located on the front panel, is described in the following table. -
Page 22: Voip Phone Ports
Internet. Power Adapter Socket The power socket is located on the rear panel of the RG230. The power socket is for the AC power adapter connection. The unit is powered on when connected to its AC power adapter, and the power adapter is connected to an AC power source between 100-240 volts at 50-60Hz. -
Page 23: Sim Card Slot
RG230 Hardware Description SIM Card Slot The RG230 also includes a standard SIM card slot that can be accessed by removing the unit’s top cover. Some WiMAX service providers may require an optional SIM Card to be installed in the RG230 unit. The SIM card can include all required configuration details, including security set up, operator information, and other end-user specific parameters. -
Page 24: Rg230 Wi-Fi Option
Introduction RG230 Wi-Fi Option The RG230 3.5 GHz model includes the 802.11b/g Wi-Fi option. This unit includes an extra antenna for local wireless connections to PCs. The following figure shows the 3.5 GHz RG230 with Wi-Fi support. 2.4 GHz Wi-Fi Antenna... -
Page 25: Chapter 2: Installing The Rg230
• Software Utilities and User Guide CD Installation Overview Before installing the RG230, verify that you have all the items listed in the package checklist above. If any of the items are missing or damaged, contact your local dealer. Also, be sure you have all the necessary tools and cabling before installing the RG230. -
Page 26: Cable Connections
Installing the RG230 Cable Connections The RG230 is a plug-and-play device, so once it has been connected to your PC and powered up, it is fully operable. Functioning as a gateway, the unit routes traffic between a WiMAX service provider’s base station and PCs or notebooks in the local network. - Page 27 Ethernet switch or other devices. Make sure the length of each cable does not exceed 100 meters (328 ft). If your PCs are powered on, the RJ-45 LAN port LEDs on the RG230 should turn on to indicate valid links.
- Page 28 Installing the RG230...
-
Page 29: Chapter 3: Initial Configuration
Setup Wizard or Advanced Setup options. Accessing the Web Management Interface The RG230 has a default IP address of 192.168.1.1 and a subnet mask of 255.255.255.0. If your PC is set to have an IP address assigned by DHCP (Dynamic Host Configuration Protocol), you can connect immediately to the web management interface. -
Page 30: Figure 3-2 Home Page
Initial Configuration Figure 3-2 Home Page To configure basic settings for the current operating mode, click Setup Wizard. For more information, see “Initial Configuration” on page 3-1. Alternatively, to configure more detailed settings, click Advanced Setup. For more information, see “The Advanced Setup Menu” on page 3-12. Note: It is recommended that you configure a user password as the first step under unit “Administrator Settings”... -
Page 31: Using The Setup Wizard
Using the Setup Wizard Using the Setup Wizard The Setup Wizard takes you through the basic configuration steps for the current operating mode. Launching the Setup Wizard – To perform basic configuration, click Setup Wizard on the home page. When configuring the unit through the Setup Wizard you will need to proceed through the following steps: Host Settings –... -
Page 32: Figure 3-4 Time Zone
Initial Configuration Time Zone – The time zone for the country in which the unit is being used, expressed in GMT format. Figure 3-4 Time Zone Set Time Zone – Selects the time zone in which the unit is being used. -
Page 33: Figure 3-5 Wan Type
Using the Setup Wizard WAN Settings – The WAN Settings page is for specifying the type of connection to your Internet service provider (ISP). When one of the options is selected, the Wizard displays the appropriate configuration parameters. Figure 3-5 WAN Type Dynamic IP Address –... -
Page 34: Figure 3-6 Wan Type - Static Ip Address
Initial Configuration Figure 3-6 WAN Type - Static IP Address For the static IP option, you are prompted for the following information (as supplied by your ISP): IP Address – If your ISP has assigned you a fixed IP address, enter the address here. -
Page 35: Figure 3-7 Wan Type - L2Tp
Using the Setup Wizard Figure 3-7 WAN Type - L2TP For the L2TP option, you are prompted for the following information (specified by the service provider): User Name – Enter your user name for connecting to the L2TP service, as supplied by the service provider. -
Page 36: Figure 3-8 Wan Type - Pppoe
Initial Configuration Figure 3-8 WAN Type - PPPoE For the PPPoE option, you are prompted for the following information (specified by the service provider): PPPoE Network Server – The IP address of the PPPoE server, as specified by the service provider. Keep Alive –... -
Page 37: Figure 3-9 Profile Configuration
Using the Setup Wizard Profile Settings – A profile allows a user to set specific details for connecting to various WiMAX service providers. The RG230 must have at least one profile configured to be able to connect to a WiMAX service. -
Page 38: Figure 3-10 Dns Configuration
Initial Configuration DNS (Domain Name System) – A DNS server is like an index of IP addresses and Web host name addresses. When you type a Web address into your browser, such as www.awbnetworks.com, a DNS server will find that name in its index and translate it to a matching IP address, such as 211.21.189.106. -
Page 39: Figure 3-11 Wizard Setup Finished
Using the Setup Wizard Wizard Setup Finished – When the wizard set up steps are completed, click on the Home button to return to the Home page. Figure 3-11 Wizard Setup Finished 3-11... -
Page 40: The Advanced Setup Menu
Initial Configuration The Advanced Setup Menu The Advanced Setup menu provides access to all the configuration settings available for the RG230. Figure 3-12 Advanced Setup Each primary menu item is sumarized below with links to the relevant section in this guide where configuration parameters are described in detail: •... -
Page 41: Chapter 4: System Settings
Resets the device Host Name The RG230 allows you to define a name that identifies your unit and the domain name used by the local network. Setting a host name enables the web interface to be accessed using an easy-to-remember name instead of its IP address. -
Page 42: System Time
System Settings System Time The RG230 uses the Simple Network Time Protocol (SNTP) to set its internal clock based on periodic updates from a time server. Maintaining an accurate time on the device enables the system log to record meaningful dates and times for event entries. -
Page 43: Administrator Settings
Administrator Settings Administrator Settings The Administrator Settings page enables you to change the default password for management access to the RG230. Figure 4-3 Setting a Password Current Password – You need to first enter your current administrator password to be able to configure a new one. (Default: admin) Password –... -
Page 44: Configuration Tools
System Settings • Firmware Update – Downloads an operation code file from the web management station to the RG230 using HTTP. Use the Browse button to locate the code file locally on the management station and click Apply to proceed. -
Page 45: Figure 4-7 Backup/Restore Settings
Configuration Tools When you select “Backup Settings/Restore Settings” and click Apply, The following page displays. Figure 4-7 Backup/Restore Settings Backup Settings – Saves the current configuration settings to a file named “config.bin” on the web management station. Restore Settings – Restores a saved configuration file to the unit. You can use the Browse button to locate the file on the web management station. -
Page 46: System Status
System Settings System Status The system status page displays connectivity status information for the unit’s WiMAX (WAN) and LAN interfaces, firmware and hardware version numbers, and the number of clients connected to your network. Figure 4-8 System Status – Internet INTERNET –... -
Page 47: Figure 4-10 System Status - Information
System Status GATEWAY – Display system IP settings, as well as DHCP, NAT and firewall status: • IP Address – Displays the unit’s IP address. • Subnet Mask – Displays the subnet mask. • DHCP Server – Displays the DHCP server status. •... -
Page 48: System Log
System Settings System Log The System Log page allows you to display system event messages. The logged messages can serve as a valuable tool for isolating device and network problems, and also indicate if any unauthorized attempts have been made to gain access to your network. -
Page 49: Reset
Reset Reset The Reset page allows you to restart the device’s software. If the unit stops responding correctly or in some way stops functioning, performing a reset can clear the condition. Figure 4-12 Reset Unit Reset – Resets the unit. All current settings are retained. - Page 50 System Settings 4-10...
-
Page 51: Chapter 5: Gateway Configuration
Chapter 5: Gateway Configuration The information in this chapter covers the configuration options for the RG230’s Internet gateway functions. The RG230 provides comprehensive firewall features and NAT isolation for Internet traffic passing from the WiMAX service provider to the local network connected to the LAN ports. -
Page 52: Wan Settings
Gateway Configuration WAN Settings Select the WAN connection type used by your service provider and specify DNS (Domain Name System) servers. Figure 5-1 WAN Settings The unit can be connected to your ISP in one of the following ways: Dynamic IP Address – Selects configuration for an Internet connection using DHCP for IP address assignment. -
Page 53: Dynamic Ip Address
WAN Settings Dynamic IP Address For dynamic IP assignment from the service provider, the unit functions as a Dynamic Host Configuration Protocol (DHCP) client. When enabled, no other settings are required. Figure 5-2 Dynamic IP Address Static IP Settings Selecting Static IP Address for the WAN type enables you to enter static IP settings as assigned by the service provider. -
Page 54: L2Tp Settings
Gateway Configuration L2TP Settings If your service provider supports Layer 2 Tunneling Protocol (L2TP) for your Internet connection, configure the settings described below. Figure 5-4 L2TP Settings User Name – Enter your user name for connecting to the L2TP service, as supplied by the service provider. -
Page 55: Pppoe Settings
WAN Settings PPPoE Settings If your service provider supports Point-to-Point Protocol over Ethernet (PPPoE) for your Internet connection, configure the settings described below. Figure 5-5 PPPoE Settings PPPoE Network Server – The IP address of the PPPoE server, as specified by the service provider. -
Page 56: Dns
Gateway Configuration DNS (Domain Name System) server addresses are usually provided by service providers, however if you want to specify certain servers, the DNS page enables you to enter primary and secodary DNS addresses. Figure 5-6 DNS Settings Domain Name Server (DNS) Address – Address of the primary DNS server, specified in the form of 0.0.0.0 Secondary DNS Address (optional) –... -
Page 57: Lan
The RG230 must have a valid IP address for management using a web browser and to support other features. The unit has a default IP address of 192.168.1.1. You can use this IP address or assign another address that is compatible with your existing local network. -
Page 58: Dhcp Client List
"internal" IP addresses to one "external" IP address on devices at the edge of a network. For the RG230, the internal (local) IP addresses are the IP addresses assigned to local PCs by the DHCP server, and the external IP address is the IP address assigned to the WiMAX interface. -
Page 59: Figure 5-9 Virtual Server
Figure 5-9 Virtual Server Private IP – The IP address of the server on the local Ethernet network. The specified address must be in the same subnet as the RG230 and its DHCP server address pool. (Range: 192.168.1.1 to 192.168.1.254) Private Port –... -
Page 60: Port Mapping
Gateway Configuration Port Mapping Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use port mapping to specify the additional public ports to be opened for each application. -
Page 61: Dmz
Firewall The RG230 provides extensive firewall protection by restricting connection parameters to limit the risk of intrusion and defending against a wide array of common hacker attacks. You can also block access to the Internet from clients on the local network based on IP addresses and TCP/UDP port numbers, or specific MAC addresses. -
Page 62: Firewall Options
Gateway Configuration Firewall Options The RG230’s firewall enables access control of client PCs, blocks common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, Smurf Attack, TCP null scan, ICMP defect, and TCP SYN flooding. The firewall does not significantly affect system performance and it is best to leave it enabled to protect your network. -
Page 63: Client Filtering
Firewall Client Filtering You can block access to the Internet from clients on the local network by specifying IP addresses and TCP/UDP port numbers. You can configure up to five IP filters on the unit. Figure 5-14 Client Filtering Settings Enable Client Filter –... -
Page 64: Mac Control
Gateway Configuration MAC Control You can block access to the Internet from clients on the local network by MAC addresses. You can configure up to 32 MAC address filters on the unit. Figure 5-15 MAC Control MAC Address Control – Enables the feature. (Default: Enabled) Block Connect to Internet –... -
Page 65: Route
Route Route The Routing Table displays the list of static routes on the unit. Figure 5-16 Routing Table Destination LAN IP – The IP address that identifies the IP subnet of the remote network. Subnet Mask – The mask that identifies the IP subnet of the remote network. Gateway –... -
Page 66: Upnp
Gateway Configuration UPnP UPnP (Universal Plug and Play Forum) provides inter-connectivity between devices supported by the same standard. Figure 5-17 UPnP Setting UPnP – Enables UpnP support on the unit. (Default: Enabled) 5-16... -
Page 67: Chapter 6: Wimax Settings
Profile Configuration A profile allows a user to set specific details for connecting to various WiMAX service providers. The RG230 must have at least one profile configured to be able to connect to a WiMAX service. Figure 6-1 WiMAX Profile Configuration Operator ID –... -
Page 68: Authentication
WiMAX Settings Operator Restriction – When enabled, the user can only connect to the service provider specified in the profile. The user cannot roam to other networks. When disabled, the operator specified in the profile will be used when base stations are detected, otherwise the user can roam to other networks. -
Page 69: Subscriber Station Information
Password – The user password required for EAP-TTLS authentication. (Default: hello) Subscriber Station Information The SSInfo page displays information about the software versions on the RG230 unit. Figure 6-4 Subscriber Station Information Firmware Version – The version of software code running on the unit. -
Page 70: Antenna Setting
WiMAX Settings Antenna Setting The RG230 provides the option of using an external antenna instead of the antennas integrated into the unit. If you decide to use an external antenna, set the Antenna Selection setting to “External.” Figure 6-5 WiMAX Antenna Setting Antenna Selection –... -
Page 71: Chapter 7: Voip Settings
Using either method, VoIP provides an experience identical to normal telephoning. Before using the VoIP Phone ports on the RG230, you must have an account with a SIP service provider and configure the required parameters through the web interface. -
Page 72: Sip Account
Always Proxy Outbound – Forces all SIP requests to be forwarded through local proxy servers. (Default: Disabled) Expire Time – The time the RG230 waits for a response from a proxy server before a VoIP call fails. (Range: 60-4294967295 seconds; Default: 3600 seconds) User Name –... -
Page 73: Sip Setting
SIP Setting SIP Register – The IP address of the SIP registrar server. A registrar is a server that accepts SIP register requests and places the information it receives in those requests into the location service for the domain it handles. SIP Register Port Number –... -
Page 74: Dial Plan
A dial-plan string can be specified to control phone numbers dialed out through the RG230. A dial plan describes the number and pattern of digits that a user dials to reach a particular telephone number. Access codes, area codes, specialized codes, and combinations of the number of digits dialed can all be part of a dial plan. -
Page 75: Figure 7-3 Dial Plan Settings
Dial Plan Figure 7-3 Dial Plan Settings The function of elements allowed in a dial plan are described in the table below: Table 7-1. Dial Plan Elements Element Example Description xxxx Represents a digit of any value ( 0 to 9) that can be dialed on a phone. -
Page 76: Call Feature
VoIP Settings Call Feature The RG230 allows you to configure several call features, such as call waiting and call-forwarding. Other call features can be implemented by pressing specific phone buttons or entering dial patterns. The table below describes the various call features available. -
Page 77: Figure 7-4 Call Features
Call Feature Figure 7-4 Call Features Call Waiting – Enables a call waiting alert. If during a call there is another incoming call, an alert tone is heard. You can place the active call on hold (press the “Flash,” “Flash Hook,” or “Hold” button on the phone) and switch to the incoming call. (Default: Disabled) Call Waiting Timeout –... -
Page 78: Codecs
Figure 7-5 Codecs Codec – Lists the codecs supported by the RG230. You can enable specific codecs to use, or enable all. Alternatively, you may want to disable certain codecs, such as high-bandwidth codecs, to preserve network bandwidth. -
Page 79: Call Block Setting
G729ab instead of a high-bandwidth G711 codec. Select a codec in the list, then use the UP and DOWN buttons to set the priority. The RG230 attempts to use the codec highest in the list before trying the next lower one. -
Page 80: Phone Setting
For example, you can specify how long a phone will ring and how long a dial tone is heard on a phone. The RG230 also enables the line delay to be specified for each phone so that the caller’s voice echo is cancelled. -
Page 81: Chapter 8: Wi-Fi Settings
Chapter 8: Wi-Fi Settings The RG230 model for the 3.5 GHz WiMAX band includes an IEEE 802.11g radio interface for local Wi-Fi communications. The Wi-Fi set up pages include configuration options for the radio signal characteristics and Wi-Fi security. The Wi-Fi configuration pages include the following options. -
Page 82: Figure 8-1. Wireless Settings
Wi-Fi Settings Figure 8-1. Wireless Settings Interface Status – Enables the Wi-Fi radio. Network Name (SSID) – The Service Set ID (SSID) that identifies the Wi-Fi network. The SSID is case sensitive and can consist of up to 32 alphanumeric characters. - Page 83 Wireless Settings Working Mode – Selects the operating mode for the 802.11g radio. (Default: B/G Mixed Mode) • B/G Mixed Mode: Both 802.11b and 802.11g clients can communicate with the unit (up to 54 Mbps). • G Only Mode: Only 802.11g clients can communicate with the unit (up to 54 Mbps).
- Page 84 SSID of “ANY” can read the SSID from the beacon, and automatically set their SSID for immediate connection to the RG230. When enabled, the unit does not include its SSID in beacon messages. This provides a basic level of security, since wireless clients must be configured with the SSID to connect to the RG230.
-
Page 85: Wireless Security
Wireless Security The RG230’s Wi-Fi interface is configured by default as an “open system,” which broadcasts a beacon signal including the configured SSID. Wireless clients with a configured SSID of “ANY” can read the SSID from the beacon, and automatically set their SSID to allow immediate connection to the wireless network. -
Page 86: Wep Shared Key Security
The option “Open System” together with encryption disabled is equivalent to no security, all clients will be able to immediately connect to the Wi-Fi network. The following sections describe the security options available for the RG230 Wi-Fi network. WEP Shared Key Security... -
Page 87: Wpa/Wpa2 Security
Wireless Security WPA/WPA2 Security The WPA and WPA2 modes use IEEE 802.1X as their basic framework for user authentication and dynamic key management. IEEE 802.1X access security uses Extensible Authentication Protocol (EAP) and requires a configured Remote Authentication Dial-in User Service (RADIUS) authentication server to be accessible in the enterprise network. -
Page 88: Wpa/Wpa2 Psk Security
Wi-Fi Settings Note: This guide assumes that you have already configured a RADIUS server in the attached wired network to support the unit. Configuration of RADIUS server software is beyond the scope of this guide, refer to documentation provided with the RADIUS server software. -
Page 89: Mac Authentication
Wireless clients can be authenticated for network access by checking their MAC address against a local database configured on the RG230. You can configure a list of up to 32 wireless client MAC addresses in the filter list to either allow or deny network access. - Page 90 Wi-Fi Settings 8-10...
-
Page 91: Appendix A: Troubleshooting
Appendix A: Troubleshooting Diagnosing LED Indicators Table A-1 Troubleshooting Chart Symptom Action Power LED is Off • AC power adapter may be disconnected. Check connections between the unit, the AC power adapter, and the wall outlet. Power LED is Red •... -
Page 92: Cannot Access Web Management
Troubleshooting Cannot Access Web Management If the management interface cannot be accessed using a web browser: • Be sure the management station is correctly configured for TCP/IP. The IP settings should be set to “obtain an IP address automatically.” • Try a Ping command from the management station to the unit’s IP address to verify that the entire network path between the two devices is functioning correctly. -
Page 93: Appendix B: Specifications
Appendix B: Specifications Physical Specifications Ports 4 LAN ports, 10/100BASE-TX with auto-negotiation, RJ-45 connector 2 FXS ports (PHONE1, PHONE2), RJ-11 connector Network Interface RJ-45 connector, auto MDI/X: 10BASE-T: RJ-45 (100-ohm, UTP cable; Category 3 or better) 100BASE-TX: RJ-45 (100-ohm, UTP cable; Category 5 or better) LED Indicators System: Power, WiMAX signal strength, WiFi Ports: Link/Activity... -
Page 94: Wimax Specifications
Specifications WiMAX Specifications Antennas Omnidirectional: Built-in dual dipole antennas Transmit: Single antenna Receive: Two antennas using Maximal-Ratio Combining (MRC) Gain: 3 dBi at 2.5 GHz, 4 dBi at 3.5 GHz Impedance: 50 Ohm Switched-Beam: Built-in dual switched-beam antennas (each antenna is a 5-way pentagon structure with 4 flat-patch elements in each segment) Transmit: Single antenna Receive: Two antennas using Maximal-Ratio Combining (MRC) -
Page 95: Wi-Fi Specifications
Wi-Fi Specifications G.726 G.729ab G.723 Voice Quality VAD (Voice Activity Detection) CNG (Comfortable Noise Generation) Echo cancellation (G.165/G.168) Adaptive jitter buffer, up to 200 milliseconds DTMF tone detection and generation Call Features Call transfer Call waiting/hold/retrieve 3-way conference call Call blocking T.38 fax relay Dial plan (E.164 dialing plan) Call forwarding: No Answer/Busy/All... -
Page 96: Compliances
Specifications RF Receive Sensitivity 802.11b: -88 dBm @ 11 Mbps 802.11g: -74 dBm @ 54 Mbps Compliances Emissions FCC Part 15B Class B VCCI Class B EN 55022 Class B EN 55024 EN 61000-3-2 EN 61000-3-3 Emmunity EN 61000-4-2/3/4/5/6/11 WiMAX Radio Signal Certification FCC Part 27 EN 300 326, EN 300 326-1, EN 300 326-3 Wi-Fi Radio Signal Certification... -
Page 97: Appendix C: Cables And Pinouts
Appendix C: Cables and Pinouts Twisted-Pair Cable Assignments For 10/100BASE-TX connections, a twisted-pair cable must have two pairs of wires. Each wire pair is identified by two different colors. For example, one wire might be green and the other, green with white stripes. Also, an RJ-45 connector must be attached to both ends of the cable. -
Page 98: Straight-Through Wiring
Cables and Pinouts Table C-1. 10/100BASE-TX MDI and MDI-X Port Pinouts MDI-X Signal Name MDI Signal Name Receive Data plus (RD+) Transmit Data plus (TD+) Receive Data minus (RD-) Transmit Data minus (TD-) Transmit Data plus (TD+) Receive Data plus (RD+) Transmit Data minus (TD-) Receive Data minus (RD-) Not used... -
Page 99: Rj-11 Ports
RJ-11 Ports RJ-11 Ports Standard telephone RJ-11 connectors and cabling can be found in several common wiring patterns. These six-pin connectors can accommodate up to three wire pairs (three telephone lines), but usually only one or two pairs of conductor pins and wires are implemented. - Page 100 Cables and Pinouts...
-
Page 101: Appendix D: License Information
Appendix D: License Information This product includes copyrighted third-party software subject to the terms of the GNU General Public License (GPL), GNU Lesser General Public License (LGPL), or other related free software licences. The GPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. - Page 102 License Information We protect your rights with two steps: (1) copyright the software, and (2) offer you this license which gives you legal permission to copy, distribute and/or modify the software. Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software.
-
Page 103: The Gnu General Public License D
The GNU General Public License a). You must cause the modified files to carry prominent notices stating that you changed the files and the date of any change. b). You must cause any work that you distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License. - Page 104 License Information c). Accompany it with the information you received as to the offer to distribute corresponding source code. (This alternative is allowed only for noncommercial distribution and only if you received the program in object code or executable form with such an offer, in accord with Subsection b above.) The source code for a work means the preferred form of the work for making modifications to it.
- Page 105 The GNU General Public License consequence you may not distribute the Program at all. For example, if a patent license would not permit royalty-free redistribution of the Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program.
- Page 106 License Information NO WARRANTY 11. BECAUSE THE PROGRAM IS LICENSED FREE OF CHARGE, THERE IS NO WARRANTY FOR THE PROGRAM, TO THE EXTENT PERMITTED BY APPLICABLE LAW. EXCEPT WHEN OTHERWISE STATED IN WRITING THE COPYRIGHT HOLDERS AND/OR OTHER PARTIES PROVIDE THE PROGRAM "AS IS"...
-
Page 107: Glossary
Glossary 10BASE-T IEEE 802.3 specification for 10 Mbps Ethernet over two pairs of Category 3 or better UTP cable. 100BASE-TX IEEE 802.3u specification for 100 Mbps Fast Ethernet over two pairs of Category 5 or better UTP cable. Advanced Encryption Standard (AES) An strong encryption algorithm that implements symmetric key cryptography. - Page 108 Glossary Encryption Data passing between the access point and clients can use encryption to protect from interception and evesdropping. Extensible Authentication Protocol (EAP) An authentication protocol used to authenticate network clients. EAP is combined with IEEE 802.1X port authentication and a RADIUS authentication server to provide “mutual authentication”...
- Page 109 Glossary Simple Network Management Protocol (SNMP) The application protocol in the Internet suite of protocols which offers network management services. Simple Network Time Protocol (SNTP) SNTP allows a device to set its internal clock based on periodic updates from a Network Time Protocol (NTP) server.
- Page 110 Glossary Glossary-4...
-
Page 111: Index
Index AC power adapter encryption administrator password, setting ESSID administrator settings Ethernet ports Advanced Setup menu 3-12 antennas authentication factory defaults, restoring type 8-4, 8-5 firewall protection 5-11 auto-logout time firmware update 4-3, 4-4 fixed-IP xDSL 3-5, 5-2 backup settings button, Reset Gateway address 5-3, 5-15... - Page 112 Index logging, system messages restore settings login, web RJ-45 ports lost password, recovery runtime code version MAC address filters security, options 5-14 mapping ports, NAT service provider connection 5-10 MDI/MDI-X, automatic Setup Wizard 3-10 host settings launching open system 8-4, 8-5 time zone operating frequency B-2, B-3...
- Page 113 Index web management interface WiMAX connection status access Wizard, setup login troubleshooting Index-3...
- Page 114 Index Index-4...
- Page 116 RG230 E032008-CS-R01 1************...
