Installing the OD200

IDU Installation

Select a Location

The IDU can be installed indoors on any horizontal surface, such as a desktop or
shelf. Be sure to select an suitable location for the device. Consider these points:
• Select a cool, dry place, which is out of direct sunlight.
• The device should have adequate space (approximately two inches) on all sides
for proper air flow.
• The device must be near an AC power outlet that provides 100 to 240 V, 50 to
60 Hz.
• The device should be accessible for network cabling and allow the status LED
indicators to be clearly visible.

Install the Unit

The IDU is a plug-and-play device, so once it has been connected to local PCs and
powered up, it is fully operable.
To connect the IDU, follow these steps:
1. Power on the IDU by connecting the AC power adapter and plugging it into an
AC power source.
Use ONLY the power adapter supplied with the OD200. Otherwise, the
Caution:
product may be damaged.
2. Observe the Indicator LEDs. When you power on the IDU, verify that the Power
LED turns on and that the other LED indicators start functioning as described
under "IDU Hardware Description" on page 1-5.
2-4
All manuals and user guides at all-guides.com

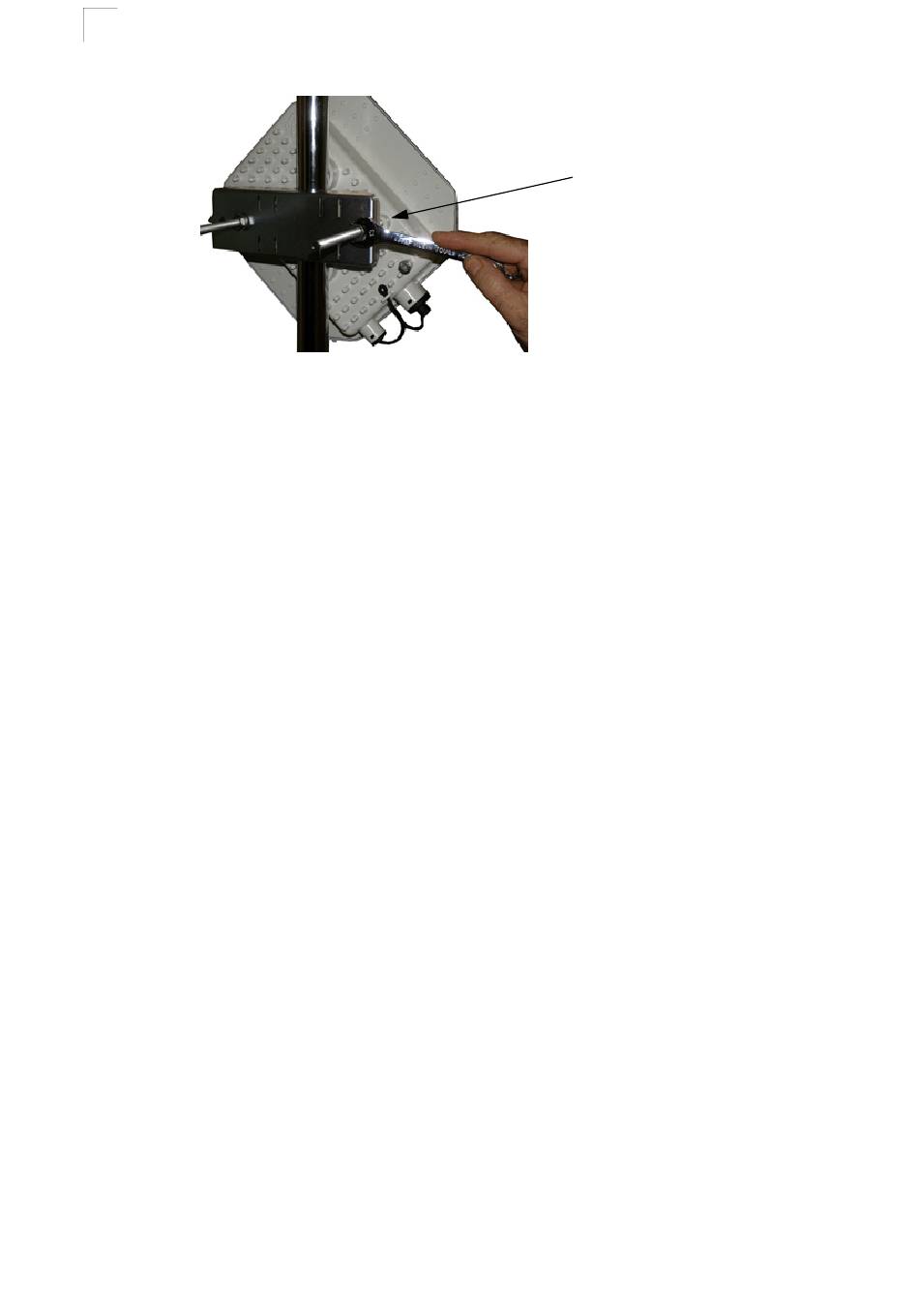

Figure 2-2 Securing the ODU to the Pole

Tighten the nuts to secure
the ODU to the pole
