ODU Hardware Description
Weatherproof Port Covers
The ODU includes rubber weatherproof port covers for the RJ-45 and SAU ports.
The RJ-45 port cover allows the Ethernet cable to be fed through and conneted to
the RJ-45 port. The SAU port cover protects the SAU port when it is not in use.
Ground Screw
Even though the ODU includes its own built-in lightning protection, it is important
that the unit is properly connected to ground. A grounding screw is provided for
attaching a ground wire to the unit.
Pole-Mounting Bracket Kit
The ODU includes a bracket kit that is used to mount the unit to a pole, radio mast,
or part of a tower structure.
SAU (Optional)
The SAU device can be connected to the ODU during installation to assist with
antenna alignment and testing.
WLNK
ET PW AL

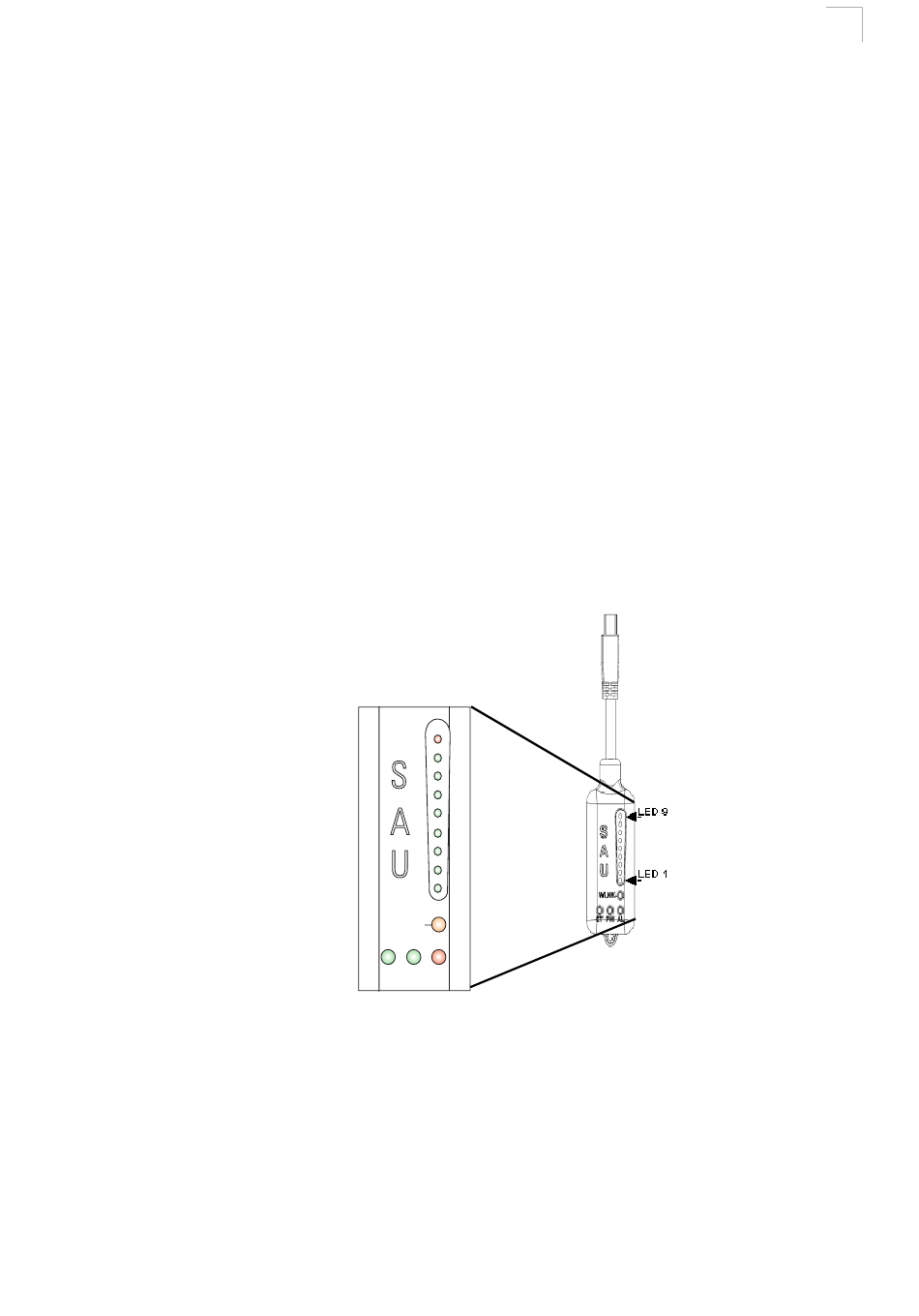

Figure 1-2 SAU LED Indicators
When connected to the ODU, the SAU provides status LED indications as described
in the following table.
1-3
