Introduction

ODU Hardware Description

The ODU is a weatherproof unit that is pole mounted outdoors. It includes a built-in
antenna for WiMAX communications, as well as a connector for an optional external
antenna. The unit includes an RJ-45 Ethernet port for a connection to the IDU.

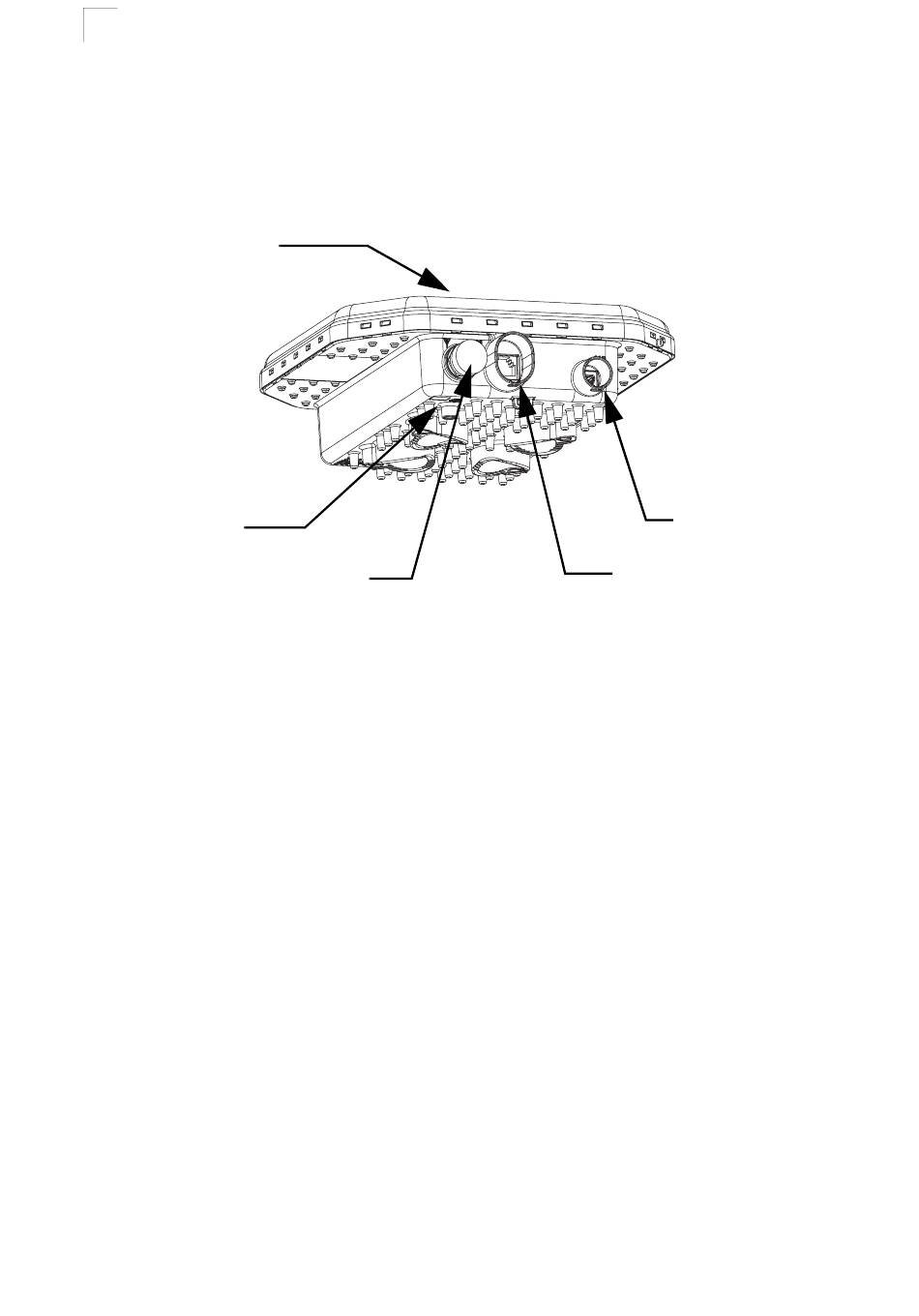

Built-in Antenna

SAU Port

Ground Screw

Ethernet RJ-45 Port

External Antenna Connector

Figure 1-1 ODU Components

Built-in WiMAX Antenna

One high-gain internal antenna is built into the ODU for WiMAX communications.
The antenna must be aligned towards the direction of the WiMAX service provider's
base station.

WiMAX External Antenna Connector

This connector is available on the unit for attaching an optional external antenna.
Depending on a user's location, the use of an external antenna may provide a better
connection to the WiMAX base station.
Ethernet RJ-45 Port
The ODU has one 10BASE-T/100BASE-TX RJ-45 port that connects to the IDU
using Ethernet cable. The Ethernet port connection provides power to the ODU as
well as a data link to the IDU.
SAU Port
A Subscriber Unit Alignment Unit (SAU) port is included for connecting an optional
SAU device that provides indicator status LEDs for antenna alignment.
1-2
