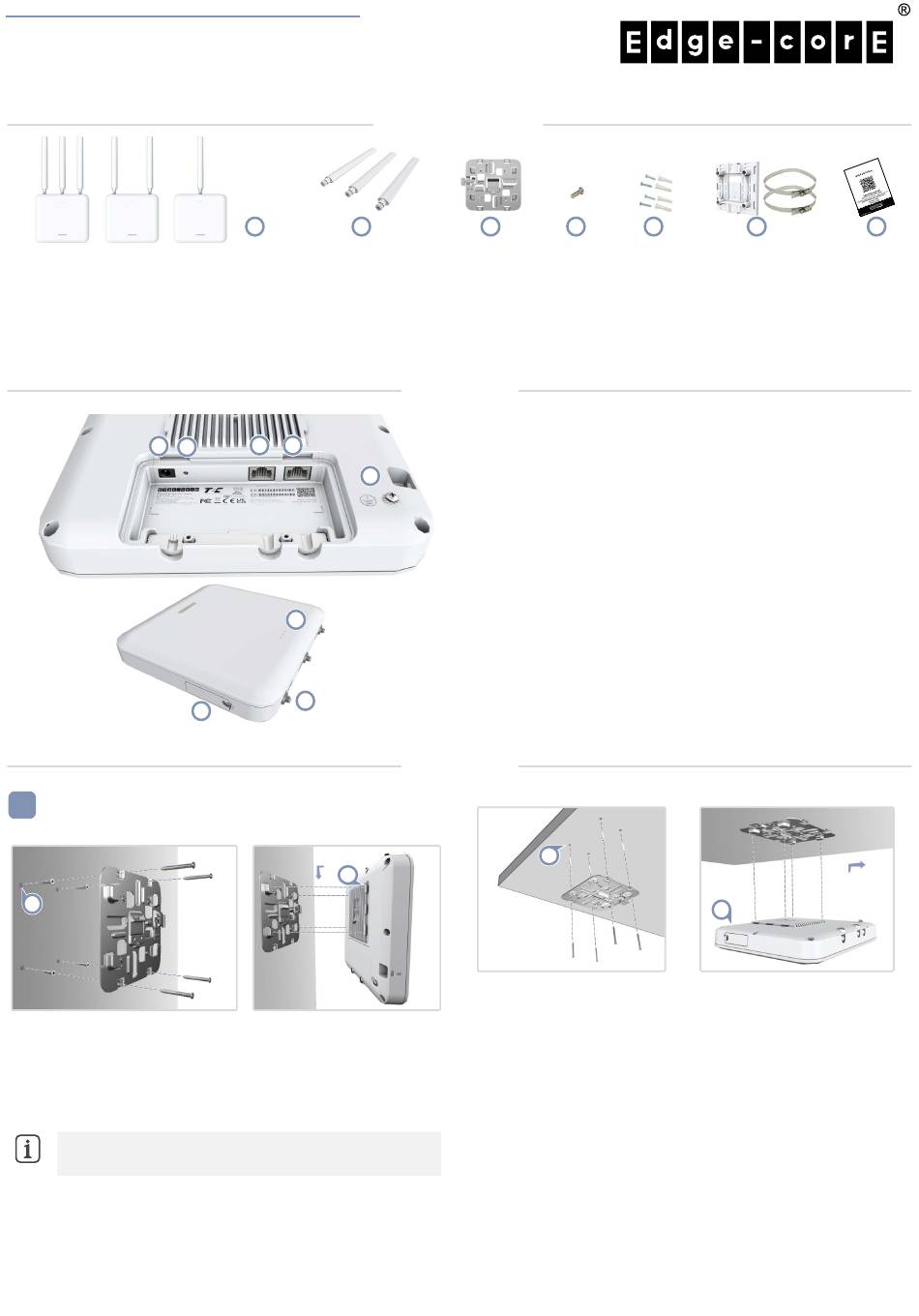

Quick Start Guide
Wi-Fi 6 IoT Gateway
EAP112 | EAP112-L | EAP112-H
1.
EAP112, EAP112-L, EAP112-H Wi-Fi 6 IoT Gateway
2.
External antennas (3 for EAP112, 2 for EAP112-L, and 1 for
EAP112-H)
3.
Mounting bracket accessory
1
1
Mount the AP
a. Mounting on a Wall
1
1.
At the installation location on the wall, use the mounting bracket to
mark four holes for the wall plugs and screws (included in the screw
kit).
Drill four holes for the wall plugs, and then insert the plugs and tap
them flush with the wall surface.
Note:
Drill 2.5 mm (±0.2 mm) holes for M3 self-tapping
screws, or 4.5 mm (±0.2 mm) holes for nylon wall plugs.
Use the four screws to secure the bracket to the wall.
2.
With its ports facing down, place the AP over the bracket flanges
and then slide it down until it snaps into its secured position.
www.edge-core.com
1
3
4
2
6
8
7
2
Package Contents
2
3
4.
Mounting bracket security screw
5.
Screw kit—4 screws and 4 plugs
6.
(Option) Pole-mount kit—bracket and 2 steel-band hose clamps
7.
QR code card
Overview
1.
12 VDC power input
2.
Restart/Reset button:
A quick press restarts the system.
5
Press and hold for 5 seconds resets to factory defaults.
3.
Uplink (PoE) Port: 10/100/1000BASE-T, 802.3at PoE
4.
LAN Port: 10/100/1000BASE-T
5.
Ground screw
6.
System LED Indicators:
(Left) Green: On (power/Wi-Fi OK), Blinking (Wi-Fi traffic)
(Center) Blue: On (LTE), Blinking (LTE traffic)
(Right) Orange: On (HaLow), Blinking (HaLow traffic)
7.
SIM card slot access panel
8.
External antenna connectors (3 for EAP112, 2 for EAP112-L, and
1 for EAP112-H)
Installation
b. Mounting on a Ceiling Without T-Bars
1.
At the installation location on the ceiling, use the mounting bracket to
mark four holes for the plugs and screws (included in the screw kit).
Drill four holes for the plugs, and then insert the plugs and tap them
flush with the ceiling surface.
Use the four screws to secure the bracket to the ceiling (screw torque
must be less than 6 kgf.cm).
2.
Place the AP over the bracket flanges and then slide it onto the
bracket until it snaps into its secured position.
– 1 –
4
5
1
2
6
7
E062024-CS-R01
