Firewall

Client Filtering

You can block access to the Internet from clients on the local network by specifying
IP addresses and TCP/UDP port numbers. You can configure up to five IP filters on
the unit.

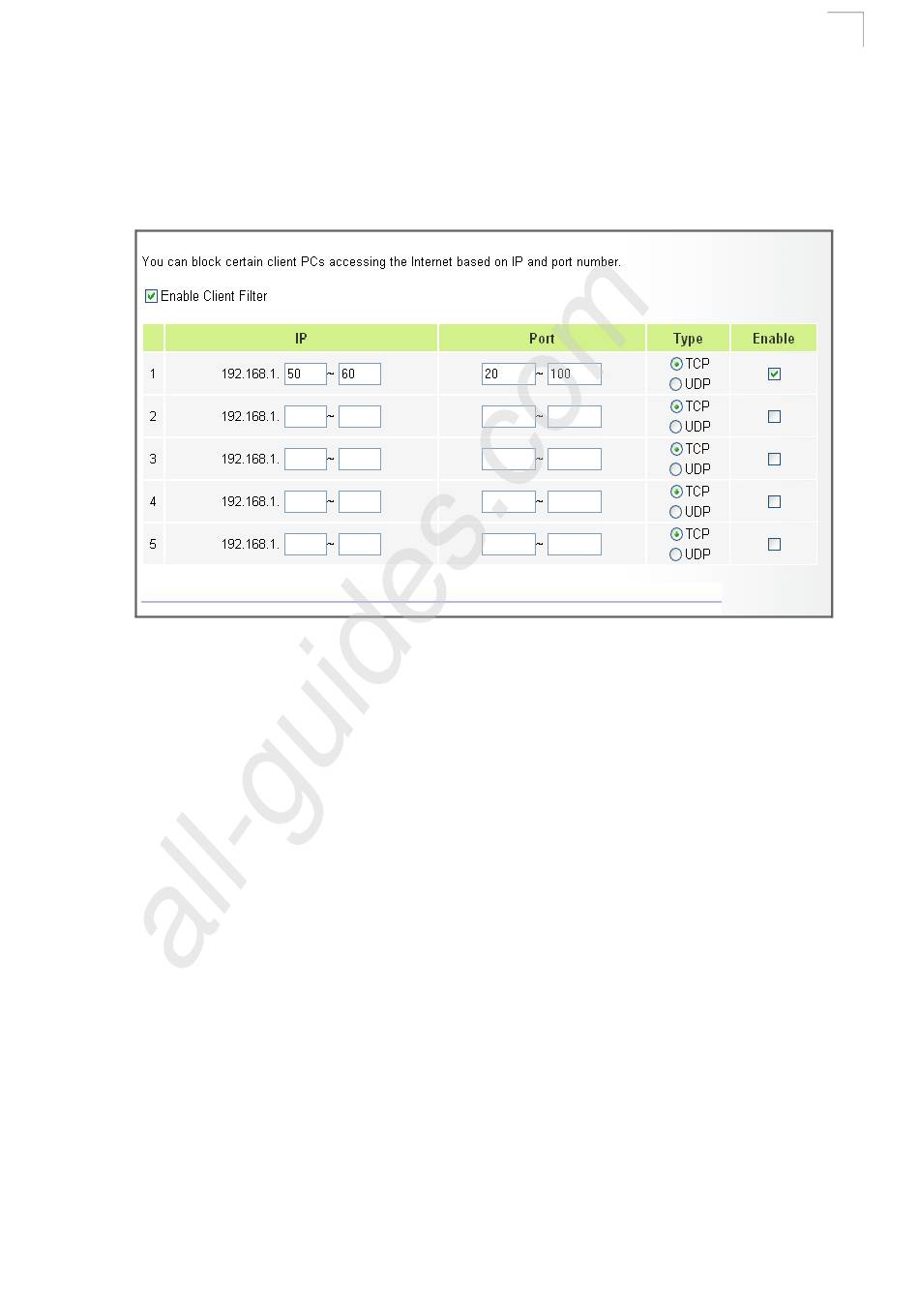

Figure 5-14 Client Filtering Settings

Enable Client Filter – Enables client filtering for entries in the table.
(Default: Disabled)
IP – Specifies an IP address or range on the local network. (Range: 192.168.1.1 to
192.168.1.254)
Port – Specifies a TCP/UDP port number range to filter. (Range: 1-65535)
Type – Specifies the the port type. (Options: TCP or UDP; Default: TCP)
Enable – Enables filtering for the table entry. (Default: Disabled)
5-13
