Straight-Through Wiring

If the twisted-pair cable is to join two ports and only one of the ports has an internal
crossover (MDI-X), the two pairs of wires must be straight-through.
End A

Crossover Wiring

If the twisted-pair cable is to join two ports and either both ports are labeled with an
"X" (MDI-X) or neither port is labeled with an "X" (MDI), a crossover must be
implemented in the wiring.
End A
C-2
All manuals and user guides at all-guides.com

Table C-1. 10/100BASE-TX MDI and MDI-X Port Pinouts

MDI-X Signal Name
Receive Data plus (RD+)
Receive Data minus (RD-)
Transmit Data plus (TD+)
Transmit Data minus (TD-)
Not used
EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Straight-through Cable
White/Orange Stripe
White/Green Stripe
1
2
3
4
White/Blue Stripe
5
6
7
8
White/Brown Stripe

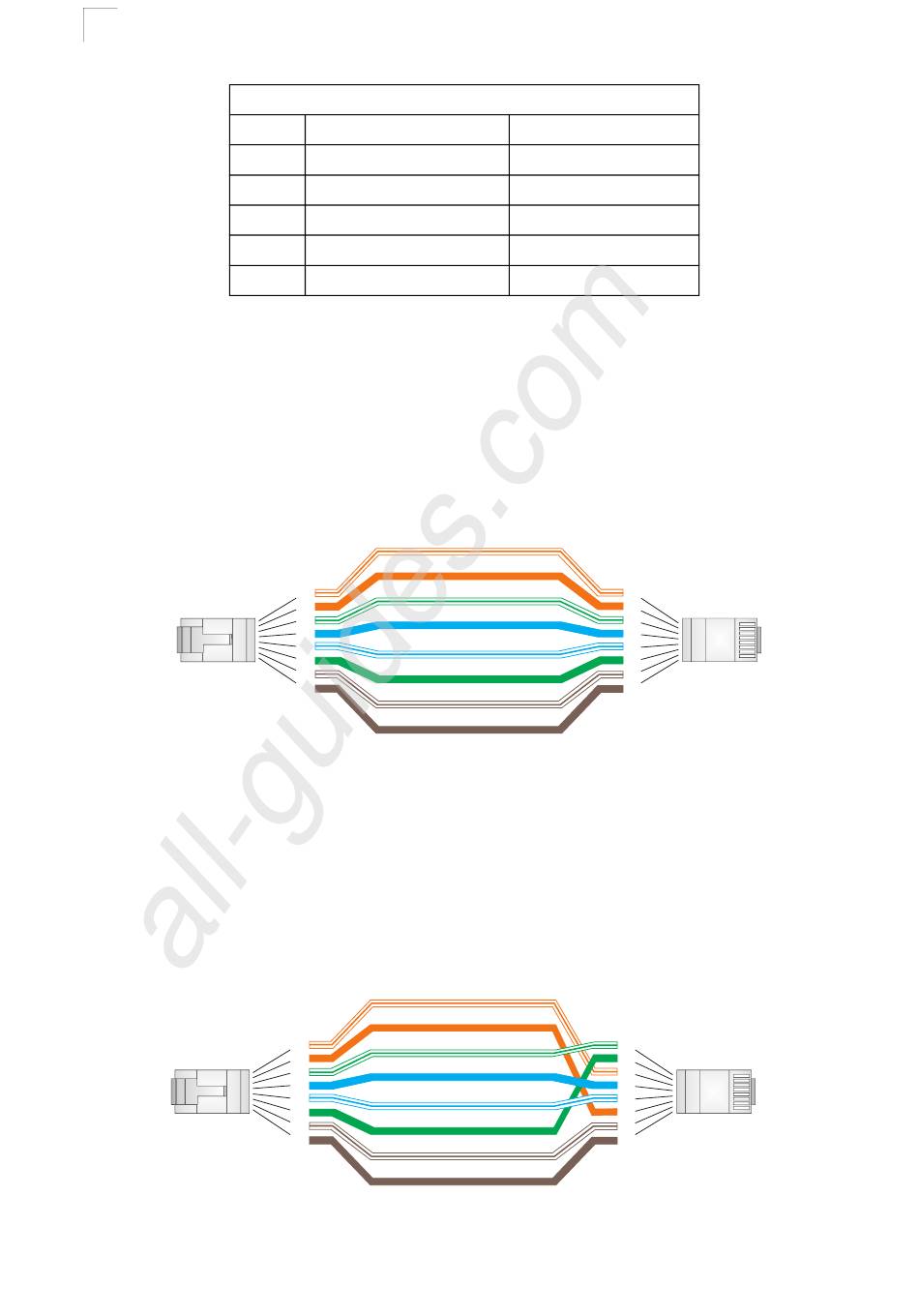

Figure C-2 Straight-Through Wiring

EIA/TIA 568B RJ-45 Wiring Standard
10/100BASE-TX Crossover Cable
White/Orange Stripe
Orange
White/Green Stripe
1
2
3
4
White/Blue Stripe
5
6
Green
7
8
White/Brown Stripe
Brown

Figure C-3 Crossover Wiring

MDI Signal Name
Transmit Data plus (TD+)
Transmit Data minus (TD-)
Receive Data plus (RD+)
Receive Data minus (RD-)
Not used
Orange
Blue
Green
Brown
Blue
1
2
End B
3
4
5
6
7
8
1
2
End B
3
4
5
6
7
8
