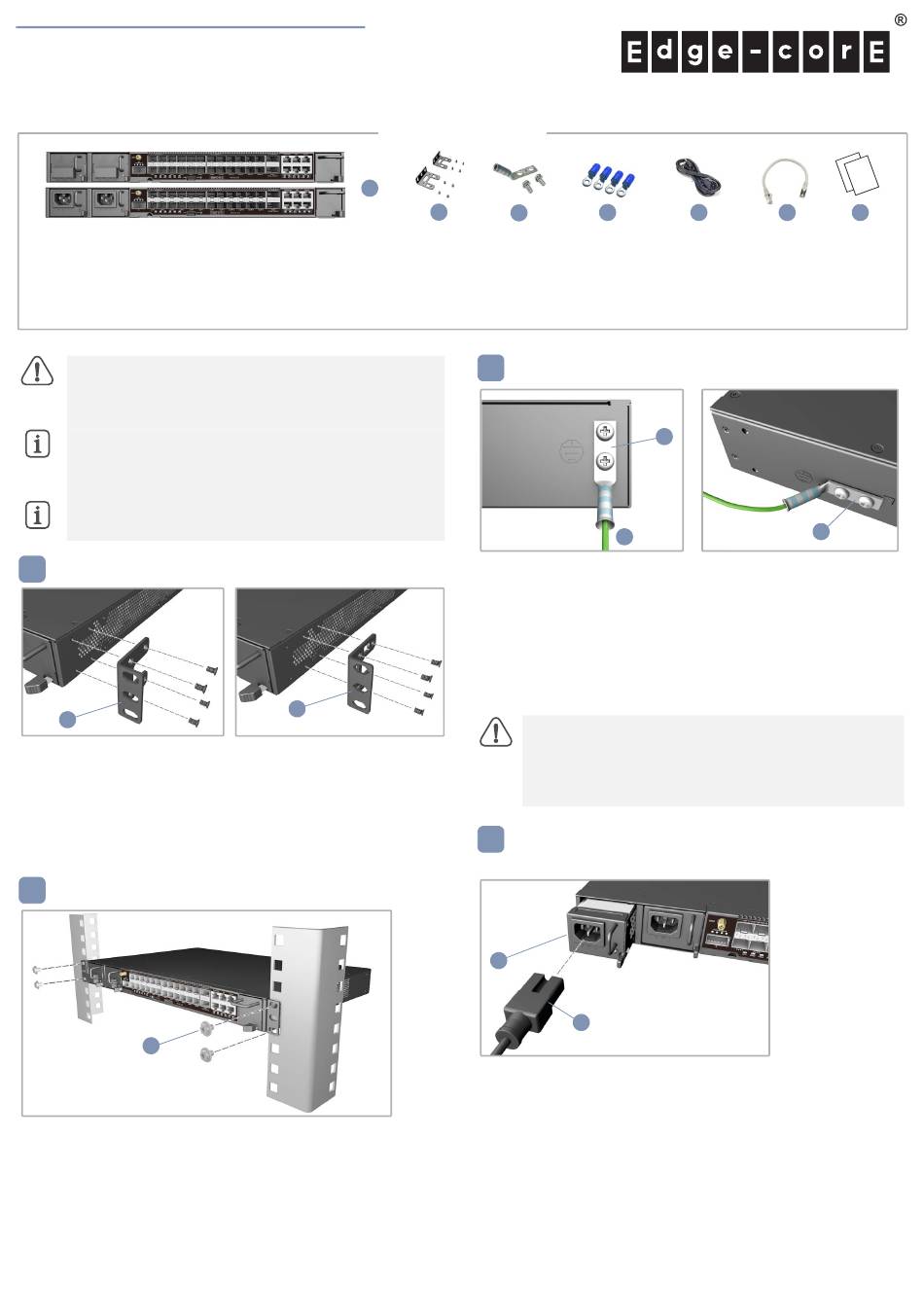

Edge-Core AS7315-27X Quick Start Manual

Quick Start Guide
Cell Site Gateway

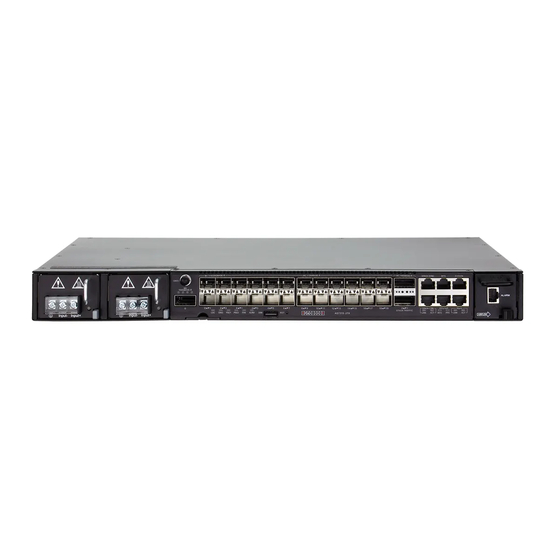

AS7315-27X
1. AS7315-27X (includes 2 PSUs and 1 fan tray)
2. Rack Mounting Kit—2 brackets and 8 screws
3. Grounding kit—grounding lug, 2 screws, and 2 washers
4. Ring lugs (x4) (included with DC PSUs only)
Caution: The device must be installed in a restricted-
access location.
Attention: L'appareil doit être installé dans un
emplacement à accès restreint.
Note: The device has the Open Network Install
Environment (ONIE) software installer pre-loaded on it, but
no software image. Information about compatible software
can be found at www.edge-core.com.
Note: The drawings in this document are for illustration
only and may not match your particular model.
1
Attach the Brackets
1
1. For 300mm-deep rack: Using the four front screw holes, attach
each of the brackets to the device with four of the included
bracket screws.
2. For 280mm-deep rack: Using the four recessed screw holes,
attach each of the brackets to the device with four of the
included bracket screws.
2
Mount the Device in an EIA-310 Rack
1
1. Use the screws and cage/clip nuts supplied with the rack to
secure the device in the rack.

Package Contents
1
2
2
– 1 –
4
3
5. (Optional) AC power cord
6. (Optional) Category 6A stacking cable
7. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
3
Ground the Device
Rear Panel
1
1. Ensure the rack is properly grounded and in compliance with
international and local standards. Verify that there is a good
electrical connection to the grounding point on the rack (no
paint or isolating surface treatment).
2. Attach the grounding wire (#6 AWG/16 mm
point on the device's rear panel or side panel. Then connect the
other end of the wire to rack ground.
Caution: The earth connection must not be removed unless
all supply connections have been disconnected.
Attention: Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d'alimentation ont été
débranchées.
4
Connect Power
a. AC Power
1
2
1. Install one or two AC PSUs in the device, if they are not already
installed in the factory.
2. Connect an external AC power source to the PSUs.
www.edge-core.com
5 6
2
2
Side Panel
2 ) to the grounding
E112022-CS-R05
150200002078H
7
