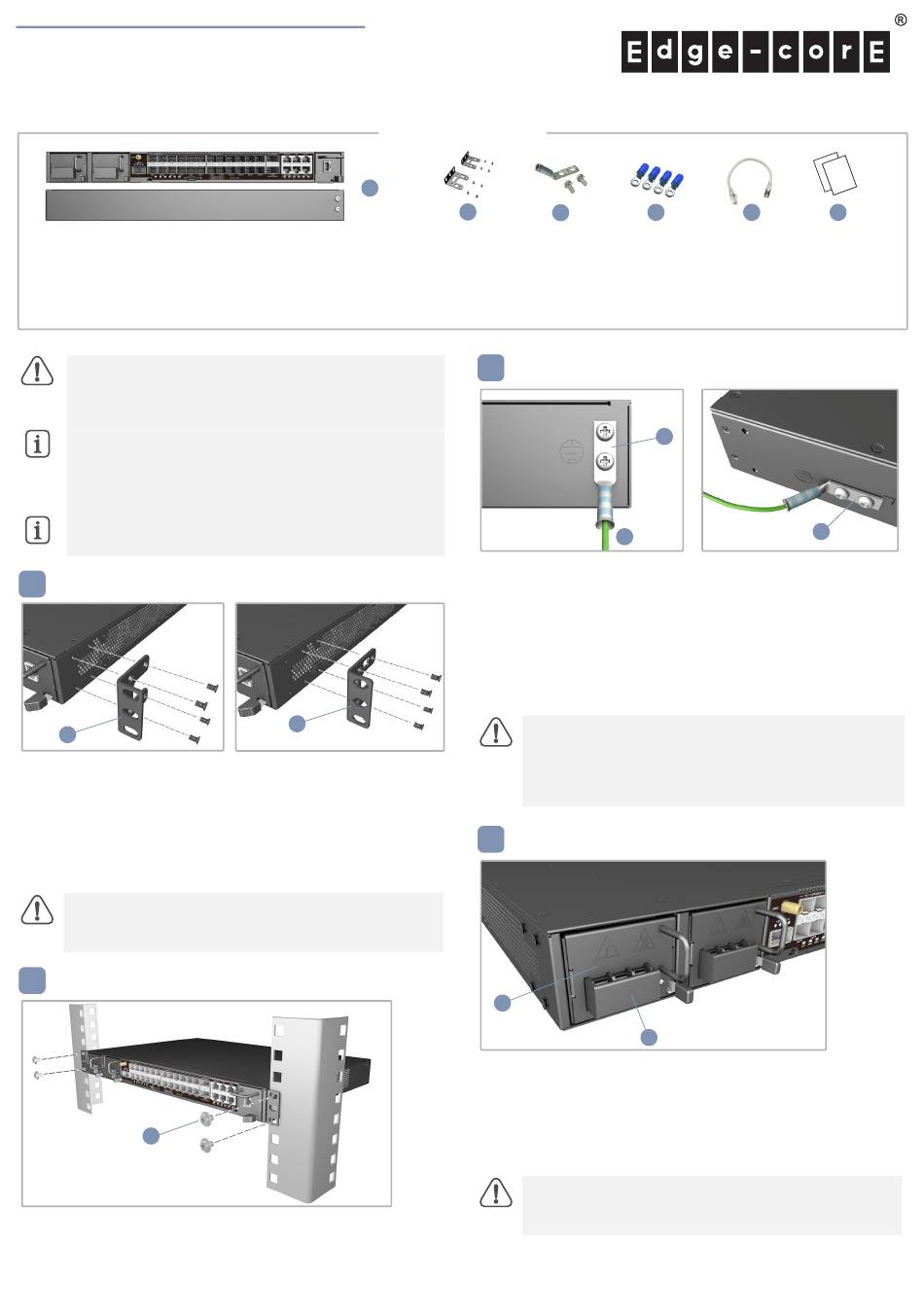

Edge-Core AS7315-27X Quick Start Manual

Quick Start Guide
Cell Site Gateway

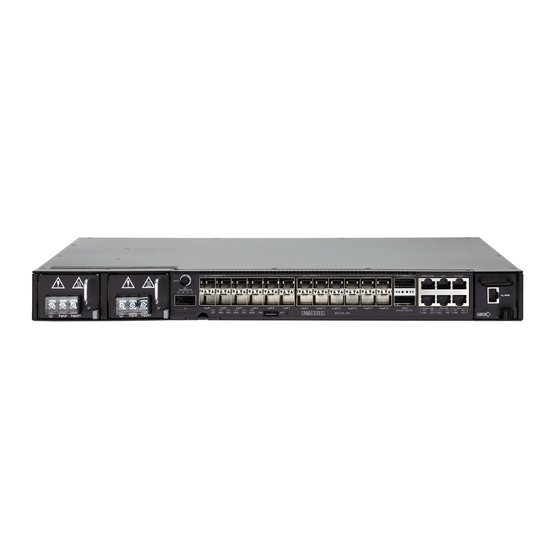

AS7315-27X
1. AS7315-27X (includes 2 PSUs and 1 fan tray)
2. Rack Mounting Kit—2 brackets and 8 screws
3. Grounding kit—grounding lug, 2 screws, and 2 washers
Caution: The device must be installed in a restricted-
access location.
Attention: le périphérique doit être installé dans un
emplacement à accès restreint.
Note: The router has the Open Network Install
Environment (ONIE) software installer pre-loaded on the
router, but no software image. Information about
compatible software can be found at
www.edge-core.com.
Note: The drawings in this document are for illustration
only and may not match your particular model.
1
Attach the Brackets
1
1. Front-Flush Mount: Using the four front screw holes, attach each
of the brackets to the router with four of the included bracket
screws. (Installation depth of 300 mm.)
2. Front-Recessed Mount: Using the four recessed screw holes,
attach each of the brackets to the router with four of the included
bracket screws. (Installation depth of 280 mm.)
Caution: Installing the router in a rack requires two
people. One person should position the router in the rack,
while the other person secures it using the rack screws.
2
Mount the Router in a Rack
1
1. Use the screws and cage/clip nuts supplied with the rack to
secure the router in the rack.
*150200002078H_R02*
Package Contents
1
2
2
– 1 –
3
4. Ring lugs (x4) (included with DC PSUs only)
5. Category 6 stacking cable
6. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
3
Ground the Router
Rear Panel
1
1. Ensure the rack is properly grounded and in compliance with
ETSI ETS 300 253. Verify that there is a good electrical
connection to the grounding point on the rack (no paint or
isolating surface treatment).
2. Attach the grounding wire (#6 AWG/16 mm
point on the router's rear panel or side panel. Then connect the
other end of the wire to rack ground.
Caution: The earth connection must not be removed unless
all supply connections have been disconnected.
Attention: Le raccordement à la terre ne doit pas être retiré
sauf si toutes les connexions d'alimentation ont été
débranchées.
4
Connect Power
1
2
1. Install one or two DC PSUs (part number CRXT-T0T12B only) in
the router, if they are not already installed in the factory.
2. Connect an external DC power source to the PSUs. Or, connect
to a no-tolerance DC mains supply with a UL/CSA-approved
circuit breaker rated at 16 A.
Caution: Before connecting power supply cables to the
router, ensure that power to the feed lines is turned off at the
supply circuit breaker or disconnected from the power bus.
www.edge-core.com
5
4
2
2
Side Panel
2
) to the grounding
E052020-CS-R02
150200002078H
