1
Introduction
RJ-45 LAN Ports
(include Link/Activity LEDs)

Wi-Fi Antenna

The IDU includes 802.11b/g Wi-Fi. There is a single 2.4 GHz antenna included for
local wireless connections to PCs.

Scan Button

Press the button for less than 3 seconds to start a partial scan to find the best of
known frequency channels. Press and hold down the button for longer than
3 seconds to perform a full frequency scan of all channels.

Reset Button

This button is used to reset the IDU or restore the factory default configuration. If you
press the button for less than 1 second, the unit will perform a hardware reset. If you
press and hold down the button for 5 seconds or more, any configuration changes
you may have made are removed, and the factory default configuration is restored to
the unit.

Power Status Indicator LED

The IDU includes a Power LED indicator that simplifies installation and network
troubleshooting. The LED, which is located on the front panel, is described in the
following table.
1-6
All manuals and user guides at all-guides.com
LAN 1 LAN 2 LAN 3 LAN 4
RJ-45 ODU Port

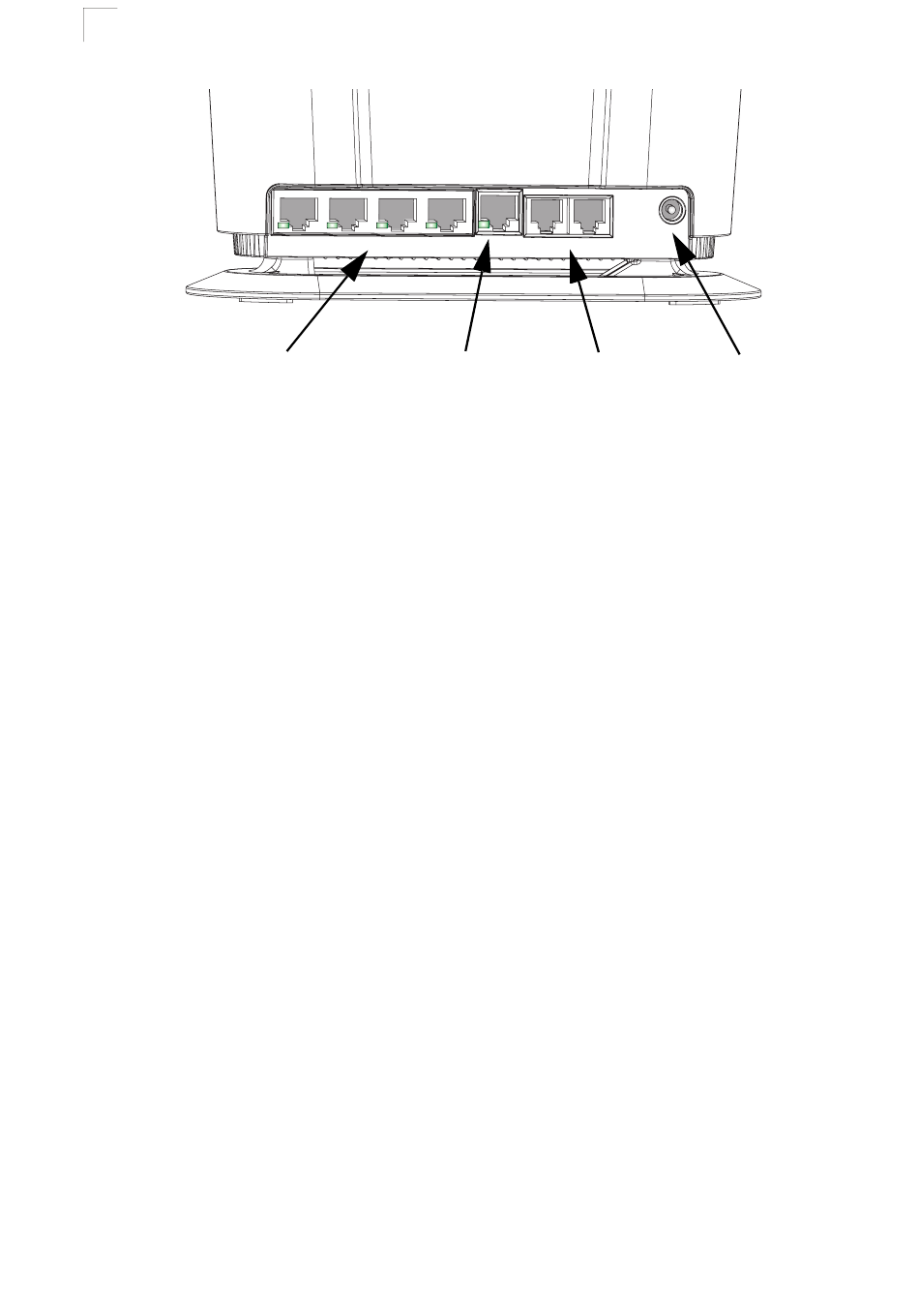

Figure 1-5 Back of the IDU

DC IN
ODU PHONE 1 PHONE 2
10-19V
VoIP Phone Ports
2A
Power Socket
