3. WAN Settings – The WAN Settings page is for specifying the type of
connection to your Internet service provider (ISP). When one of the options is
selected, the Wizard displays the appropriate configuration parameters.
Dynamic IP Address – Selects configuration for an Internet connection using
DHCP for IP address assignment.
Static IP Address – Selects configuration for an Internet connection using a
fixed IP assignment.
L2TP – Selects configuration for an Internet connection using the Layer 2
Tunneling Protocol, an access protocol often used for virtual private networks.
PPPoE – Selects configuration for an Internet connection using the
Point-to-Point Protocol over Ethernet (PPPoE), a common connection method
used for DSL access.
Note: For the Dynamic IP Address (DHCP) option, the unit requires no further
configuration and you can continue directly to next step. Selecting other WAN
types displays the parameters that are required for configuring the connection.

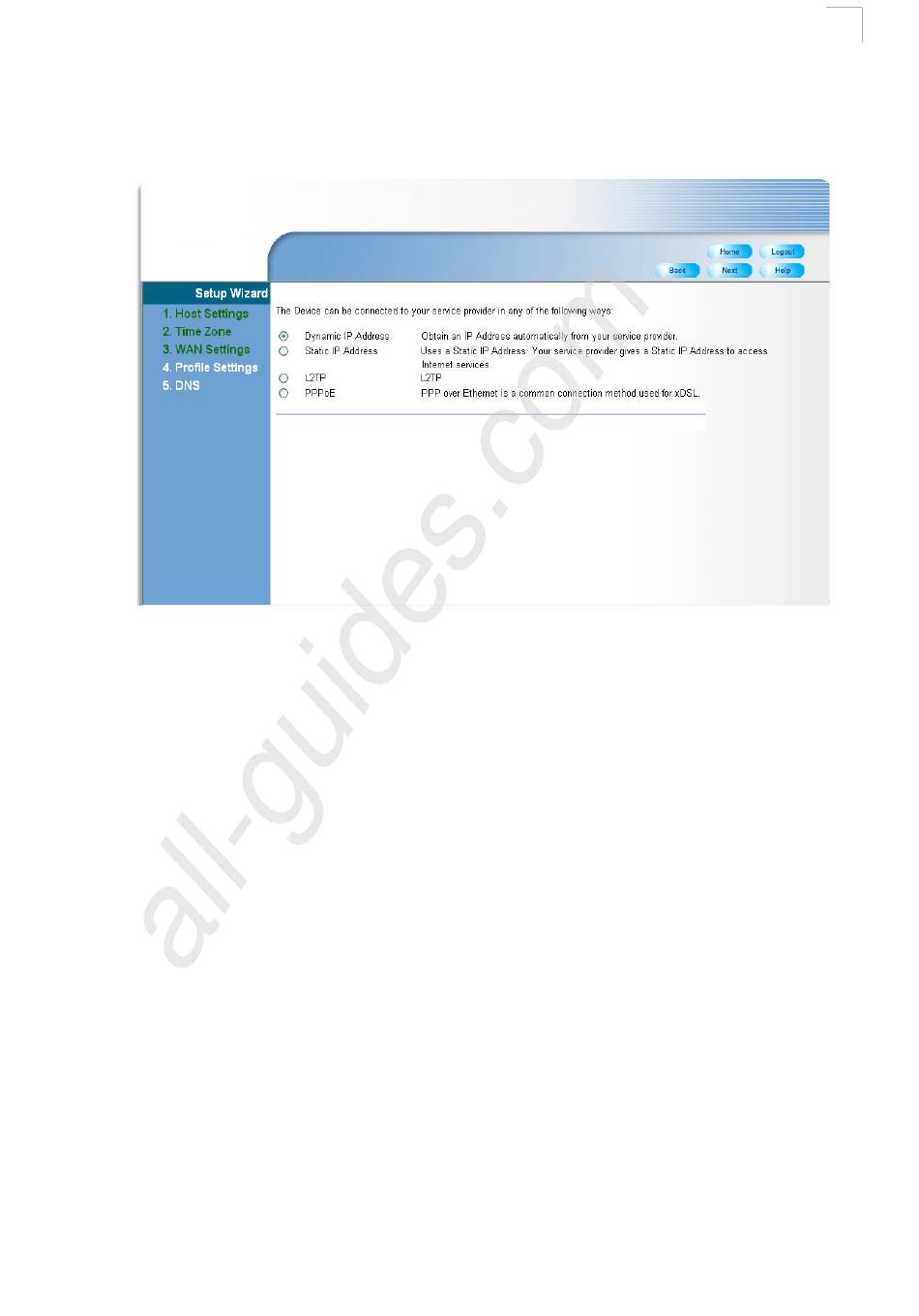

Figure 3-5 WAN Type

Using the Setup Wizard
3-5
