Edge-Core AS5915-18X Quick Start Manual

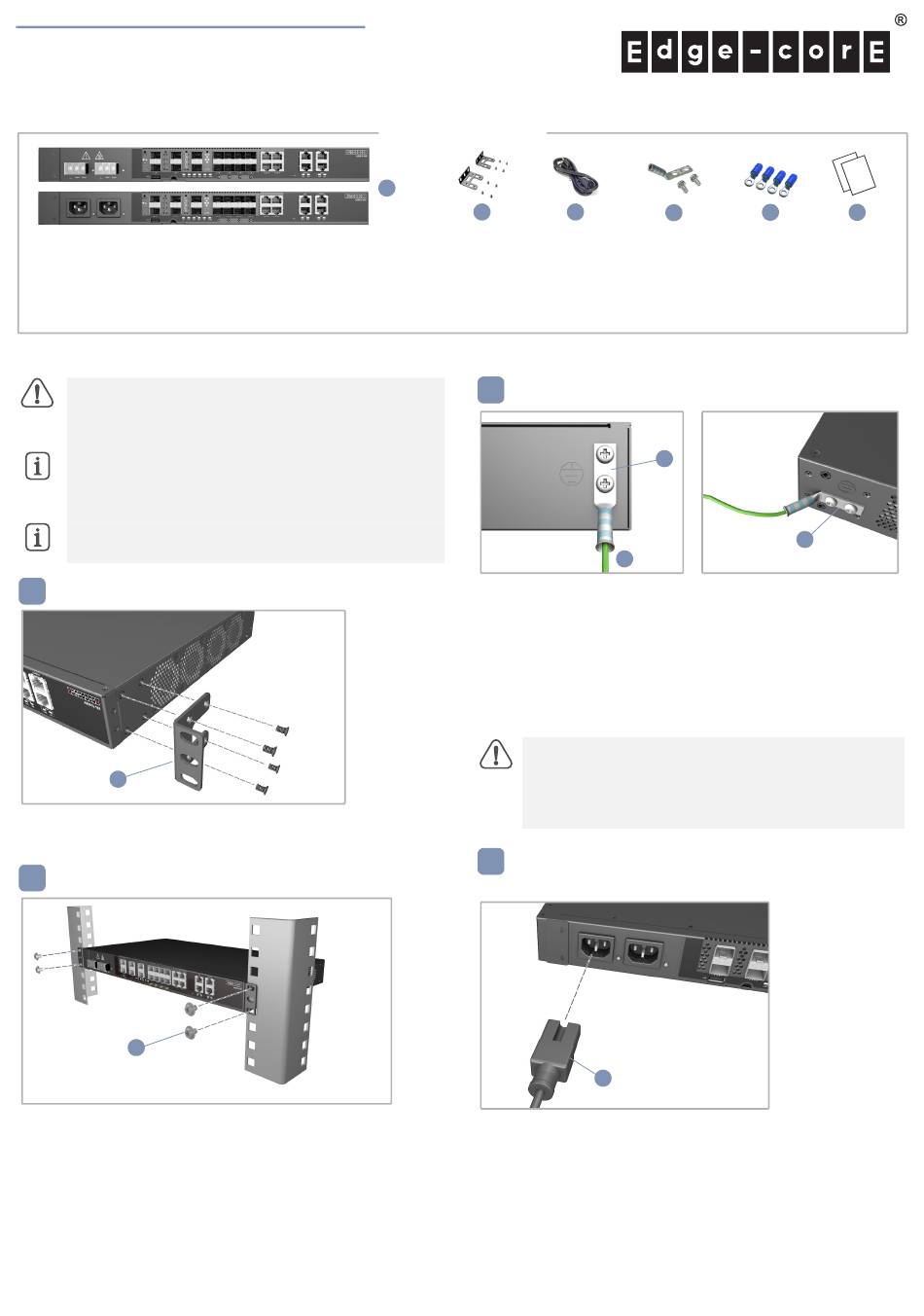

Quick Start Guide
Cell Site Gateway
AS5915-18X | AS5915-18X AC
1. AS5915-18X or AS5915-18X AC
2. Rack Mounting Kit—2 brackets and 8 screws
3. 2 AC power cords (AS5915-18X AC only)
Caution: The device must be installed in a restricted-
access location.
Attention: L'appareil doit être installé dans un
emplacement à accès restreint.
Note: The device has the Open Network Install
Environment (ONIE) software installer pre-loaded on it, but
no software image. Information about compatible software
can be found at www.edge-core.com.
Note: The drawings in this document are for illustration
only and may not match your particular model.
1
Attach the Brackets
1
1. Attach each of the brackets to the device with four of the
included bracket screws.
2 Mount the Device in an EIA-310 Rack
1
1. Use the screws and cage/clip nuts supplied with the rack to
secure the device in the rack.
*150200002482A_R01*
Package Contents
1
2
4. Grounding kit—grounding lug, 2 screws, and 2 washers
5. Ring lugs (x4)
6. Documentation—Quick Start Guide (this document) and
Safety and Regulatory Information
3
Ground the Device
Rear Panel
1. Ensure the rack is properly grounded and in compliance with
international and local standards. Verify that there is a good
electrical connection to the grounding point on the rack (no
paint or isolating surface treatment).
2. Attach a grounding wire (#6 AWG/16 mm
point on the device's rear panel or side panel. Then connect the
other end of the wire to rack ground.
Caution:
all supply connections have been disconnected.
Attention:
sauf si toutes les connexions d'alimentation ont été
débranchées.
4
Connect Power
a. AC Power
1. Connect an AC power source to both AC power sockets.
– 1 –
www.edge-core.com
3
4
2
Side Panel
1
The earth connection must not be removed unless
Le raccordement à la terre ne doit pas être retiré
1
6
5
2
2 ) to the grounding
E032022-CS-R01
150200002482A
